Kontaktligzda - 7 kontaktu savienotājs - Spraudnis: Blade Terminal 8JB001941041

Name: Kontaktligzda - 7 kontaktu savienotājs - Spraudnis: Blade Terminal 8JB001941041
Brand: Hella
SKU: 8JB001941041
Price: 11.34 EUR
Availability: InStock

Apmaksas iespējas

11,34 €

AR PVN

4-5 Darba dienas

Kontaktligzda - 7 kontaktu savienotājs - Spraudnis: Blade Terminal 8JB001941041 Hella

IR NOLIKTAVĀ

ID: 63294

Apraksts

Part number	8JB001941041
EAN	4082300193312
Unit	Each

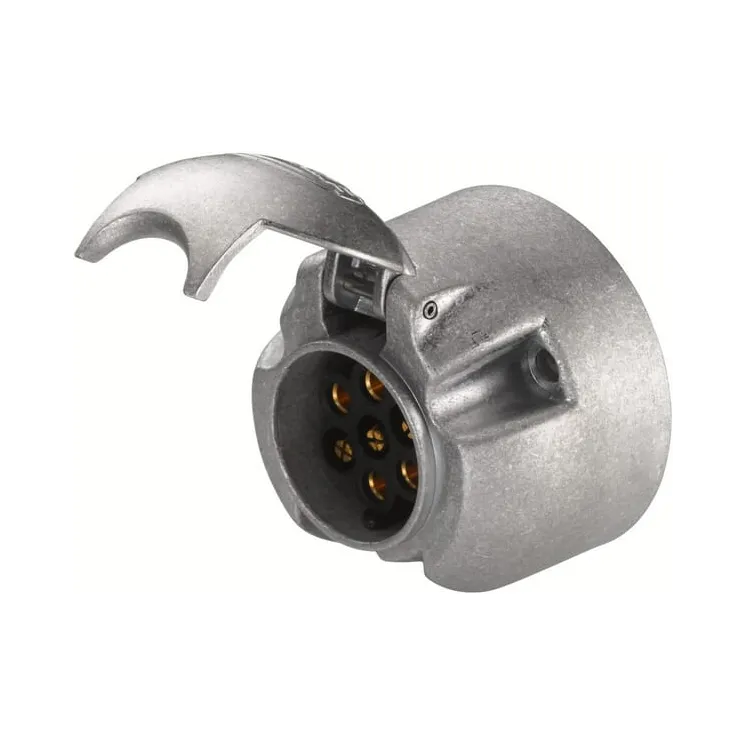

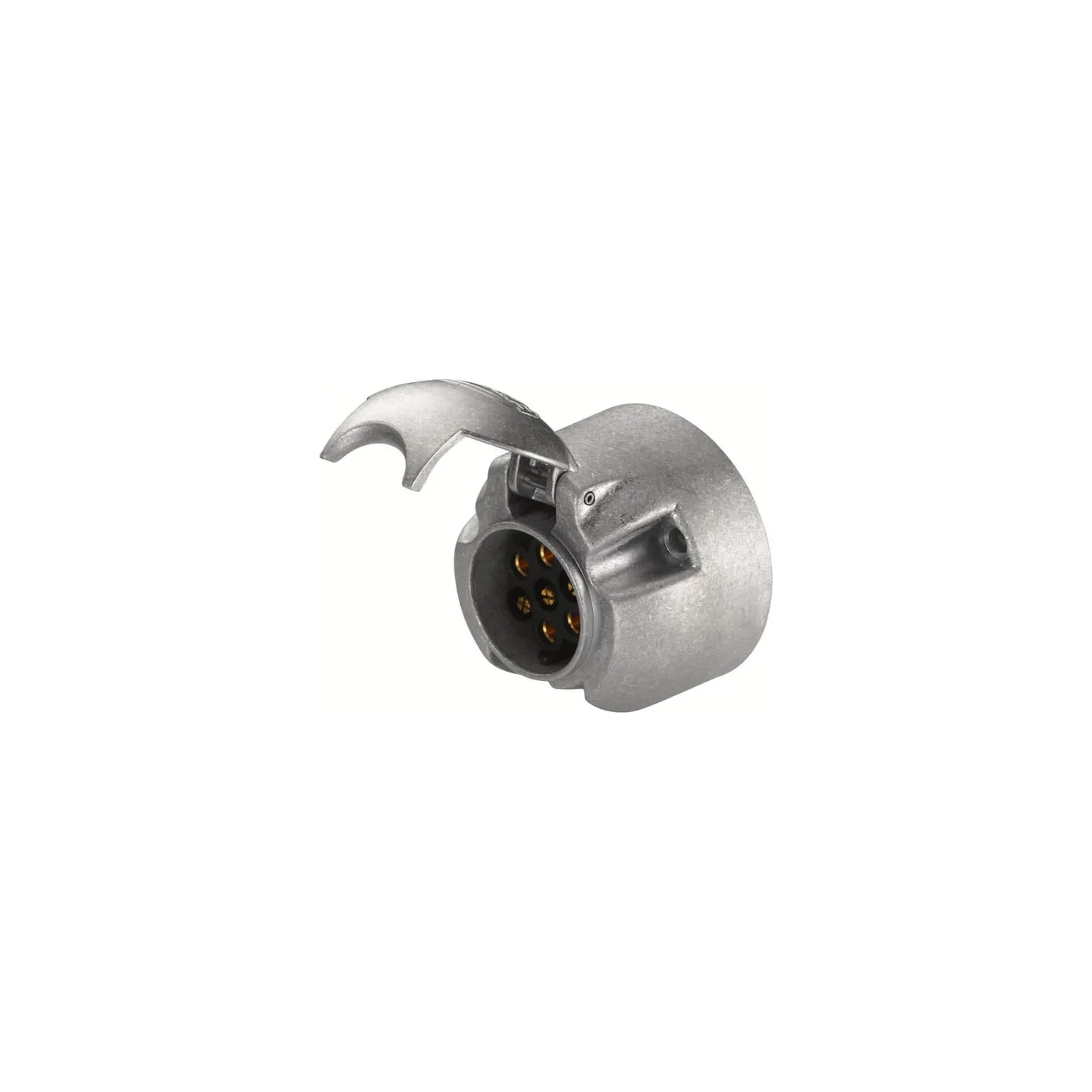

Long description	7-pin socket panel surface mounted metal Hella
Product details	Socket panel DIN ISO 1724. Metal design With cover 7 connections Power handling: 16A at 12V (1.5 mm²), 25A at 12V (2.5 mm²)"
Operating current	16 A 24 A
Number of poles	7
Series	A
Cable position type - connection no 1	Standard
Nominal voltage	12 V
Nominal voltage range	12-24 V
Type	Flat terminal
Connection type male/female - connection no 1	Female
Connection 2, connection type	7-pin
Connection 3, connection type	7-pin
Max. cable cross section	2.5 mm²
Min. cable cross section	1.5 mm²
ISO standard	1724
Electric category	Trailer lighting
