Kabeļa savienotājs — 2 kontaktu savienotājs 8KW744806801

Name: Kabeļa savienotājs — 2 kontaktu savienotājs 8KW744806801
Brand: Hella
SKU: 8KW744806801
Price: 10.94 EUR
Availability: InStock

Apmaksas iespējas

10,94 €

AR PVN

4-5 Darba dienas

Kabeļa savienotājs — 2 kontaktu savienotājs 8KW744806801 Hella

IR NOLIKTAVĀ

ID: 63306

Apraksts

Part number	8KW744806801
EAN	4082300178654
Unit	Set
Properties	Current transmission: 14 A — with a 1.5 mm² cable
Number of poles	2
Series	SuperSeal

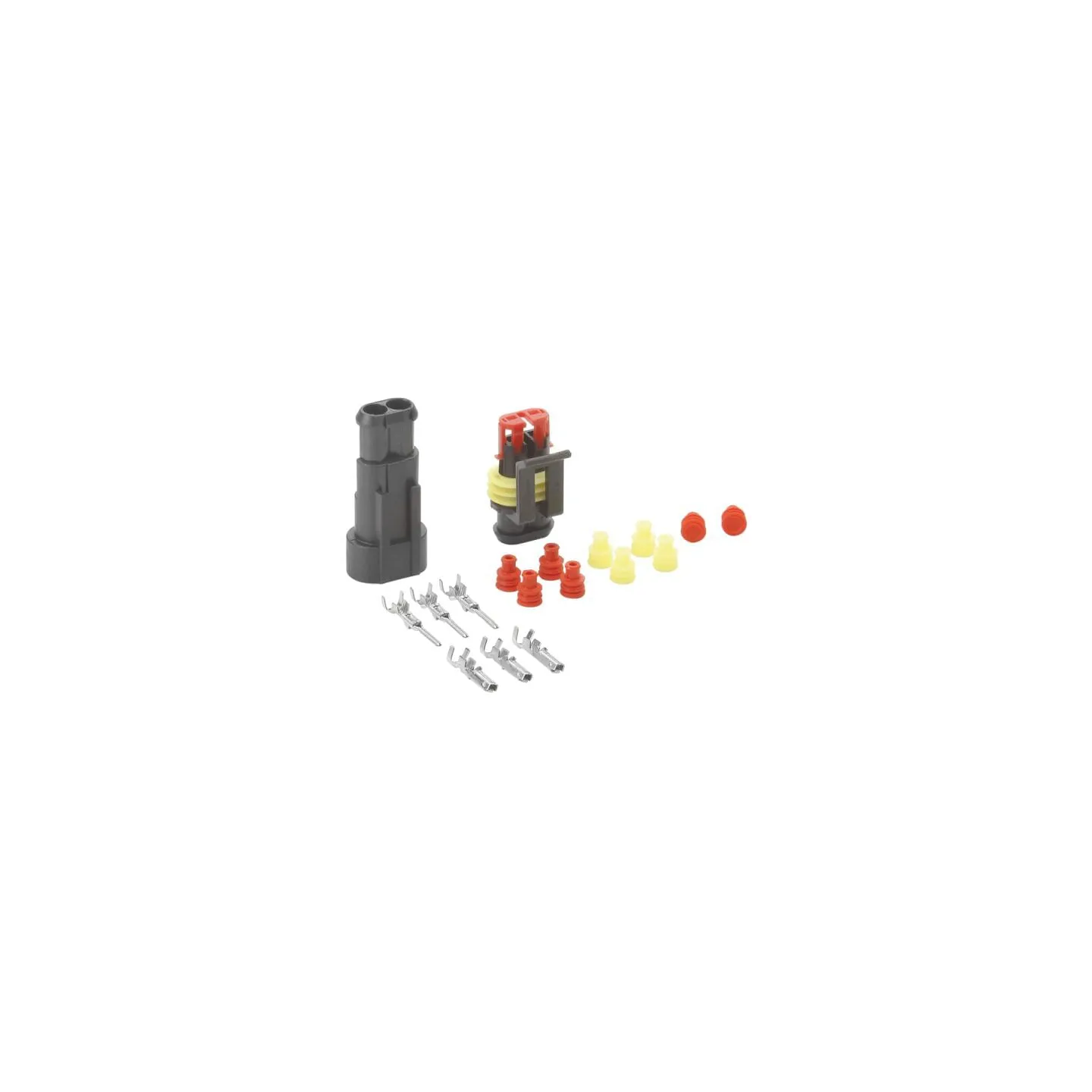

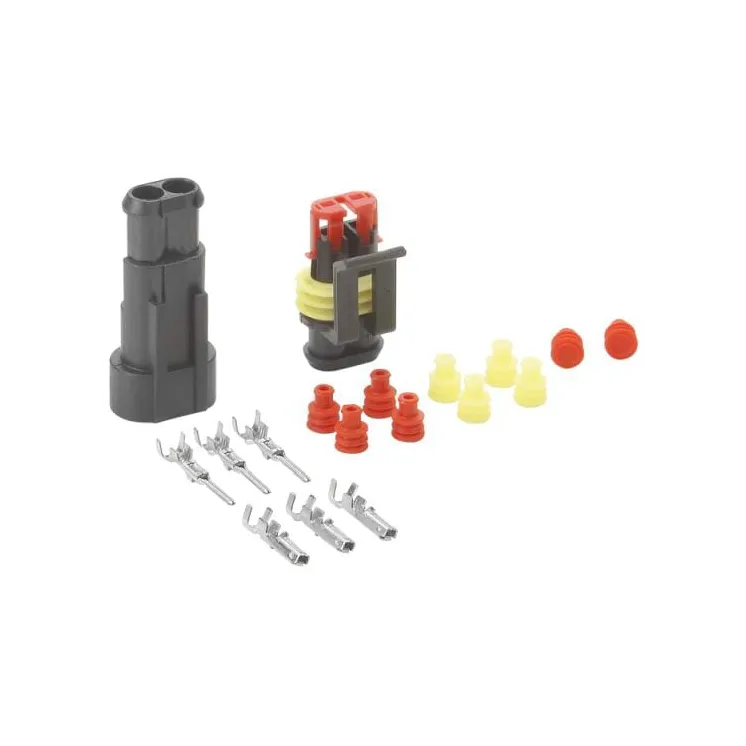

Consists of	Plug housing Bush housing Contact pin 1 – 1.5 mm² Bushing contacts 1 – 1.5 mm² Seals for individual wires 1.8 – 3.3 mm Transport plug
Cable position type - connection no 1	Standard
Nominal voltage range	12-24 V
Protection class IP	67
Connection type male/female - connection no 1	Male
Connection 2, connection type	2-pin
Connection 3, connection type	2-pin
DIN standard	40050
IEC standard	529
Electric category	Sensor Signal
Content in sale unit	1 pcs
Packing type	Blister
