Kontaktligzda - montāža - Spraudnis: Skrūvējams kontakts 8JB004123001

Name: Kontaktligzda - montāža - Spraudnis: Skrūvējams kontakts 8JB004123001
Brand: Hella
SKU: 8JB004123001
Price: 6.01 EUR
Availability: InStock

Apmaksas iespējas

6,01 €

AR PVN

4-5 Darba dienas

Kontaktligzda - montāža - Spraudnis: Skrūvējams kontakts 8JB004123001 Hella

IR NOLIKTAVĀ

ID: 63315

Apraksts

Part number	8JB004123001
EAN	4082300212341
Unit	Each

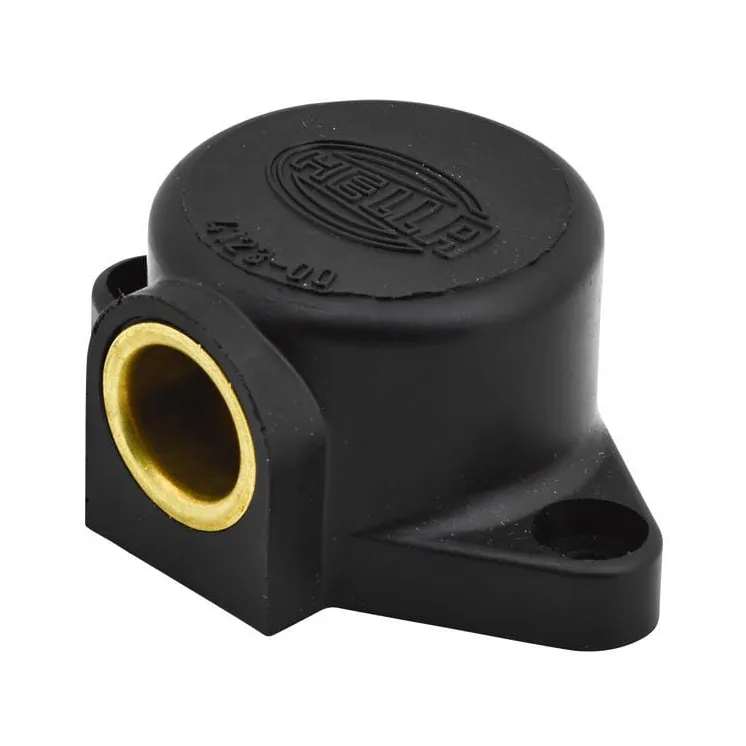

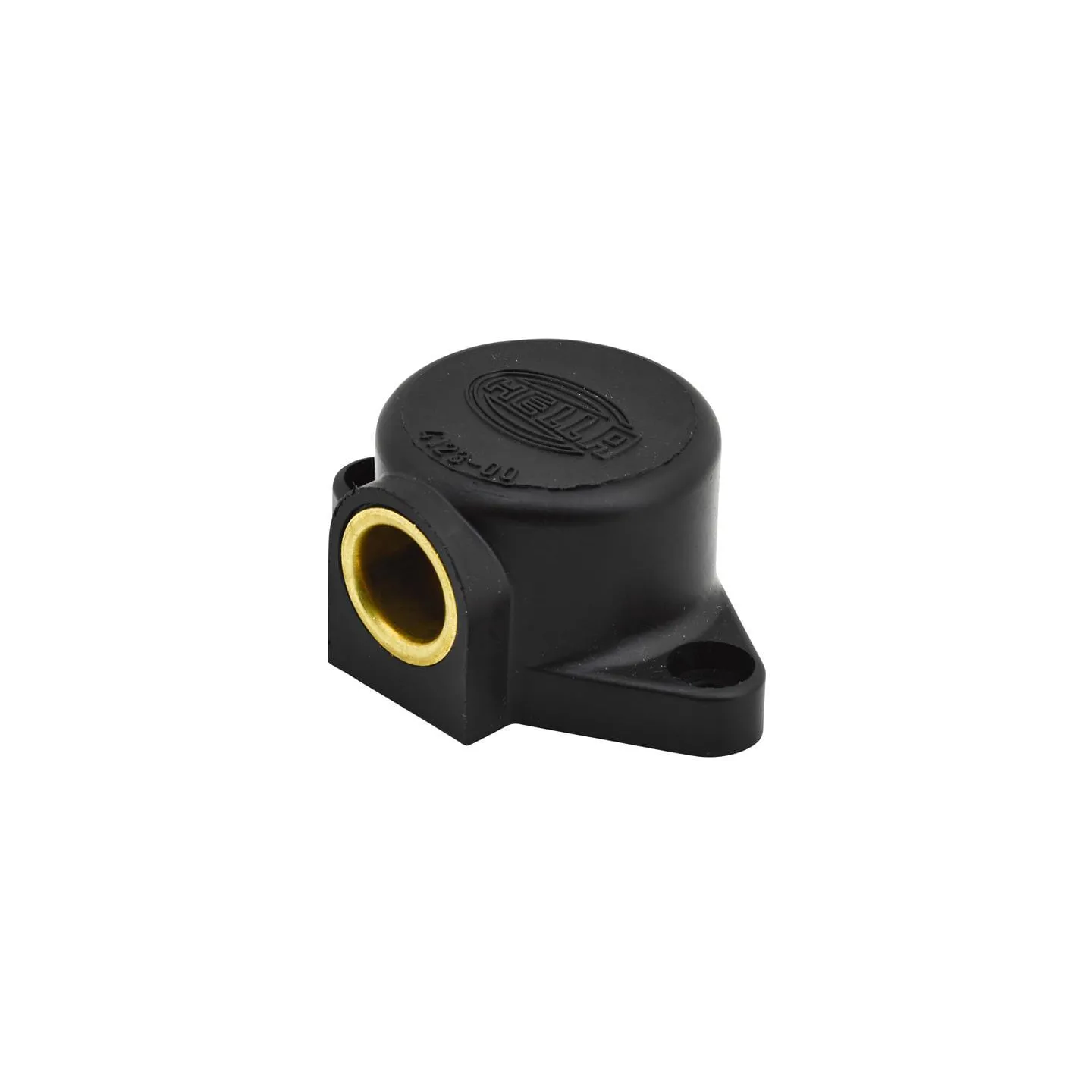

Details	Socket with screw connection in accordance with DIN ISO 4165 Made from plastic
Properties	2 holes, 4.5mm, for fixing screws Distance between hole centres: 46mm
Operating current	16 A
Number of poles	2
Cable position type - connection no 1	Straight
Nominal voltage	24 V
Nominal voltage range	12-24 V
Type	Screw terminal
Connection type male/female - connection no 1	Female
Connection 2, connection type	DS16
Connection 3, connection type	DS16
ISO standard	4165
Electric category	Power
Min. cable core diameter	1.5 mm
Max. cable core diameter	2.5 mm
