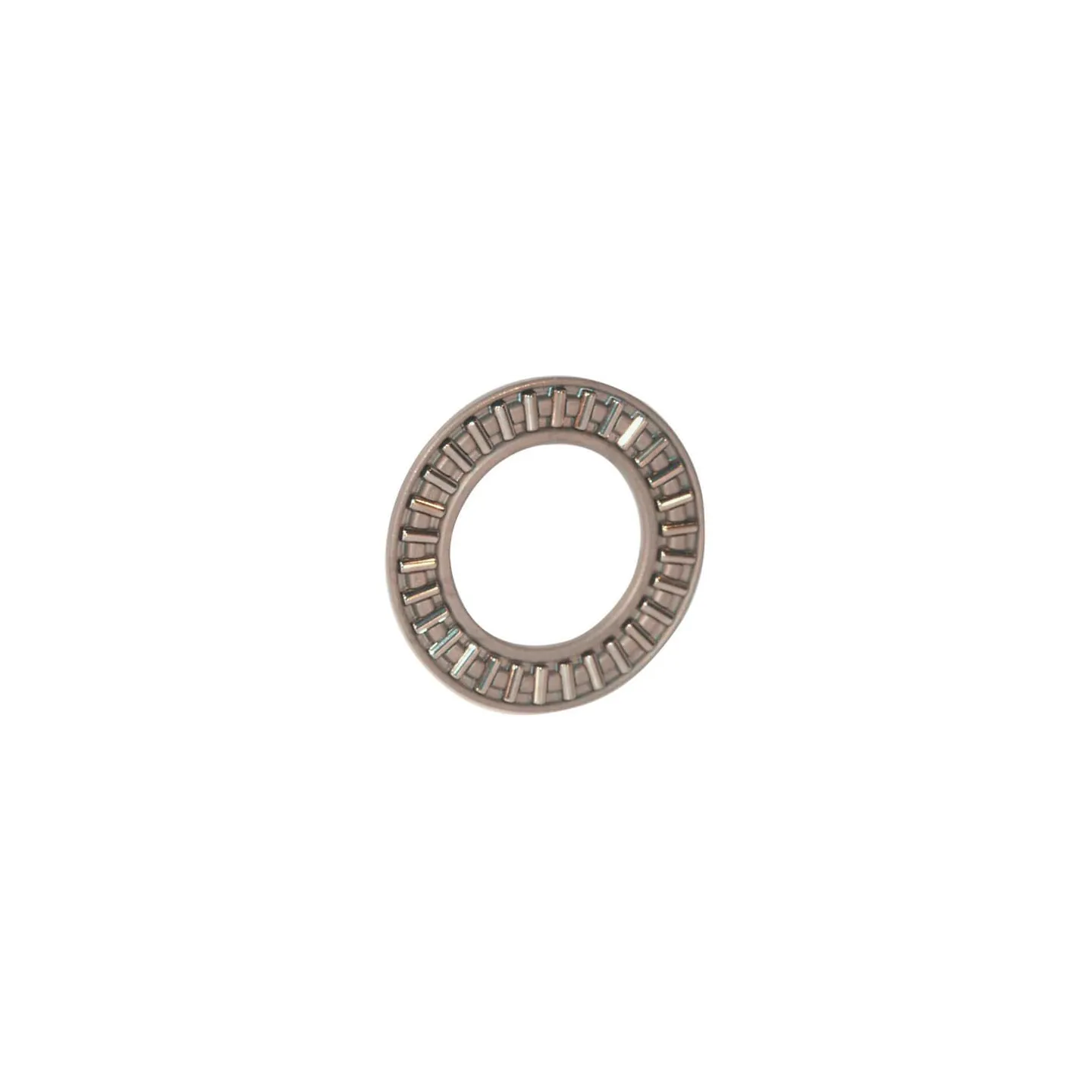

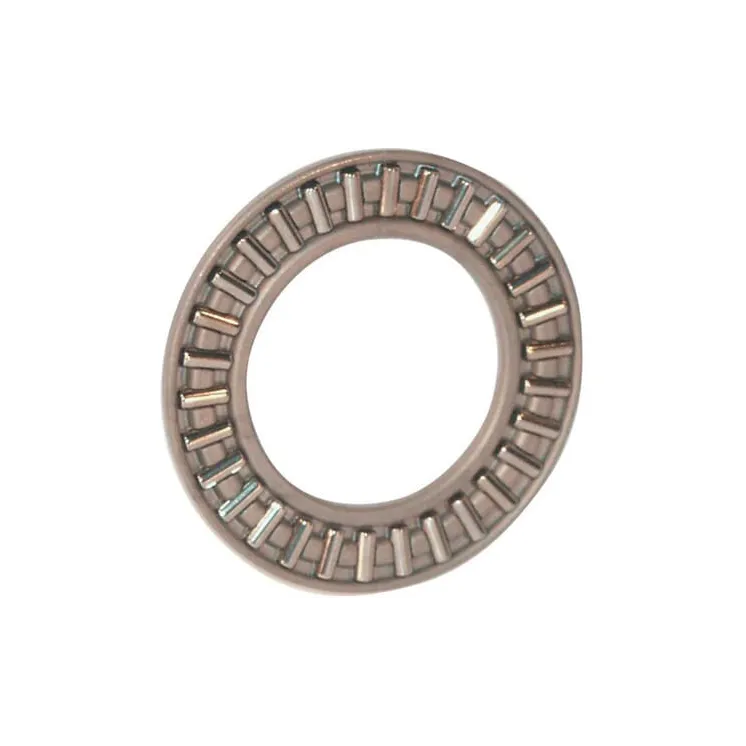

Vilces adatas veltņa tips AXK AXK1024A

Name: Vilces adatas veltņa tips AXK AXK1024A
Brand: INA/FAG
SKU: AXK1024A
Price: 3.38 EUR
Availability: InStock

Apmaksas iespējas

3,38 €

AR PVN

4-5 Darba dienas

Vilces adatas veltņa tips AXK AXK1024A INA/FAG

IR NOLIKTAVĀ

ID: 63625

Apraksts

Part number	AXK1024A
EAN	4047643173063
Unit	Each
Product details	Absorbs axial forces in 1 direction. Bearing requires hardened and ground running surfaces Can be combined with thrust discs Low axial installation height High load-bearing capacity
Dc1Inside diameter	10 mm
DcOutside diameter	24 mm
DwWidth	2 mm
Basic axial load static	25500 N
Basic axial load dynamic	9200 N
Ref rotation speed	7400 r/min
Max rotation speed	16900 r/min
Original number equivalent	AXK1024-A/0-10
