Gultņa ieliktnis 30x62x36,51mm E30KRR

Name: Gultņa ieliktnis 30x62x36,51mm E30KRR
Brand: INA/FAG
SKU: E30KRR
Price: 36.83 EUR
Availability: InStock

Apmaksas iespējas

36,83 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x36,51mm E30KRR INA/FAG

IR NOLIKTAVĀ

ID: 63701

Apraksts

Part number	E30KRR
EAN	4012802783667
Unit	Each

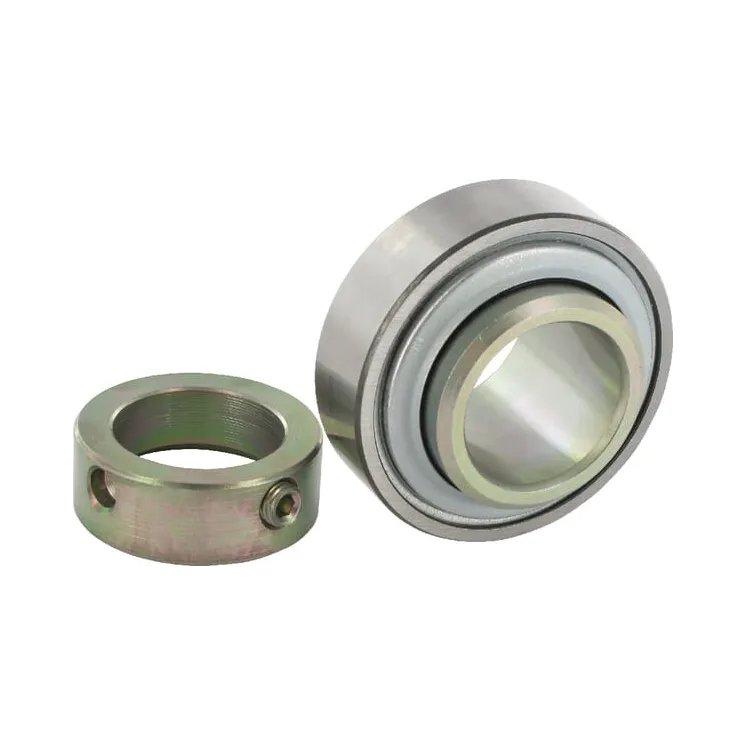

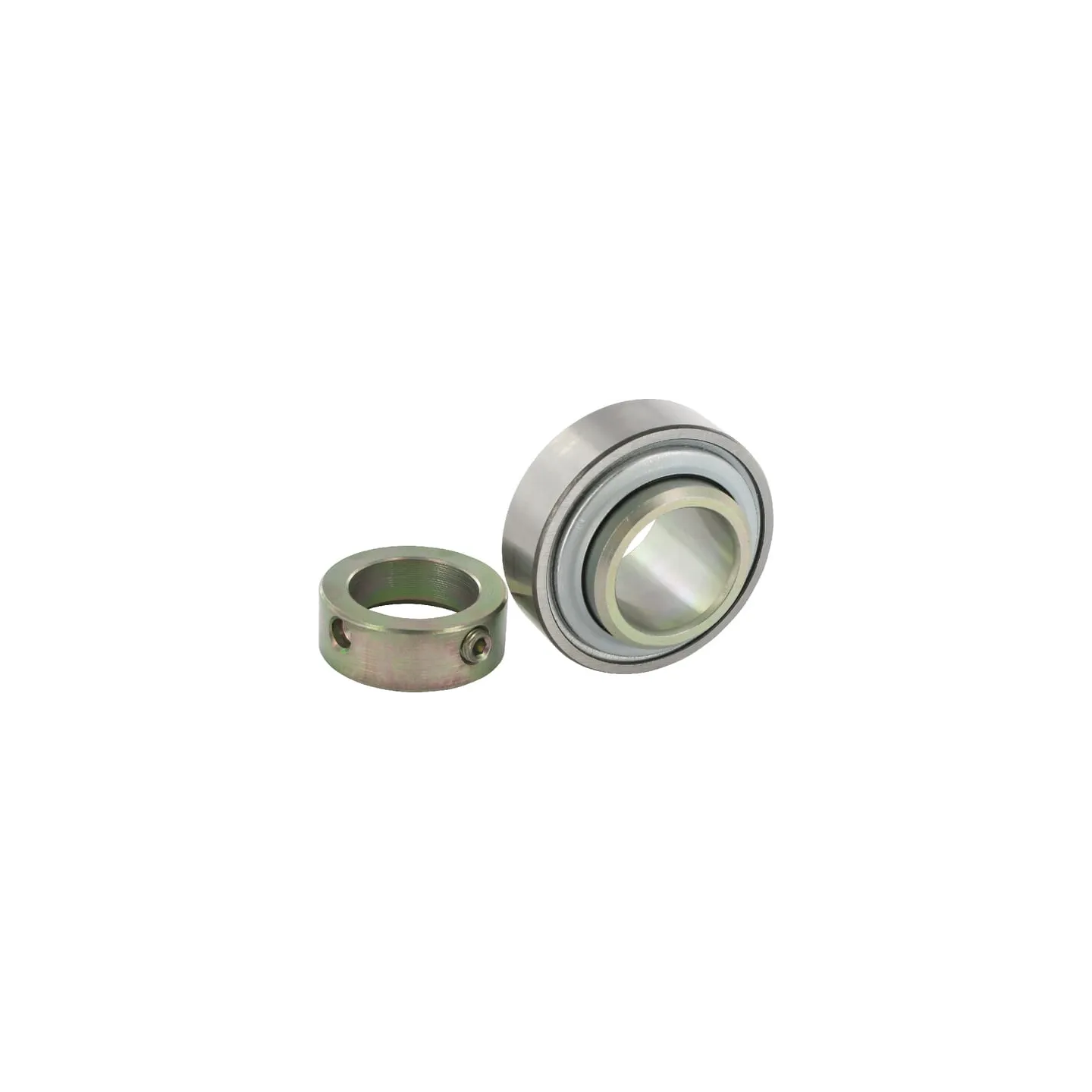

Long description	Ball bearing inserts INA/FAG, series E..KRR
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Cylindrical outer ring with no lubrication holes Inner ring extended on both sides with clamping ring Sealed on both sides Polyamide housing
dInside diameter	30 mm
DOutside diameter	62 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	36.51 mm
CInner ring width	18.3 mm
Locking collar and inner ring width	48.4 mm
Locking collar outside diameter	44.1 mm
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Thread diameter	8 mm
Thread pitch	1.25 mm
Thread type	Metric
Material	Steel
Original number equivalent	E30-KRR
Weight	0.2 kg
