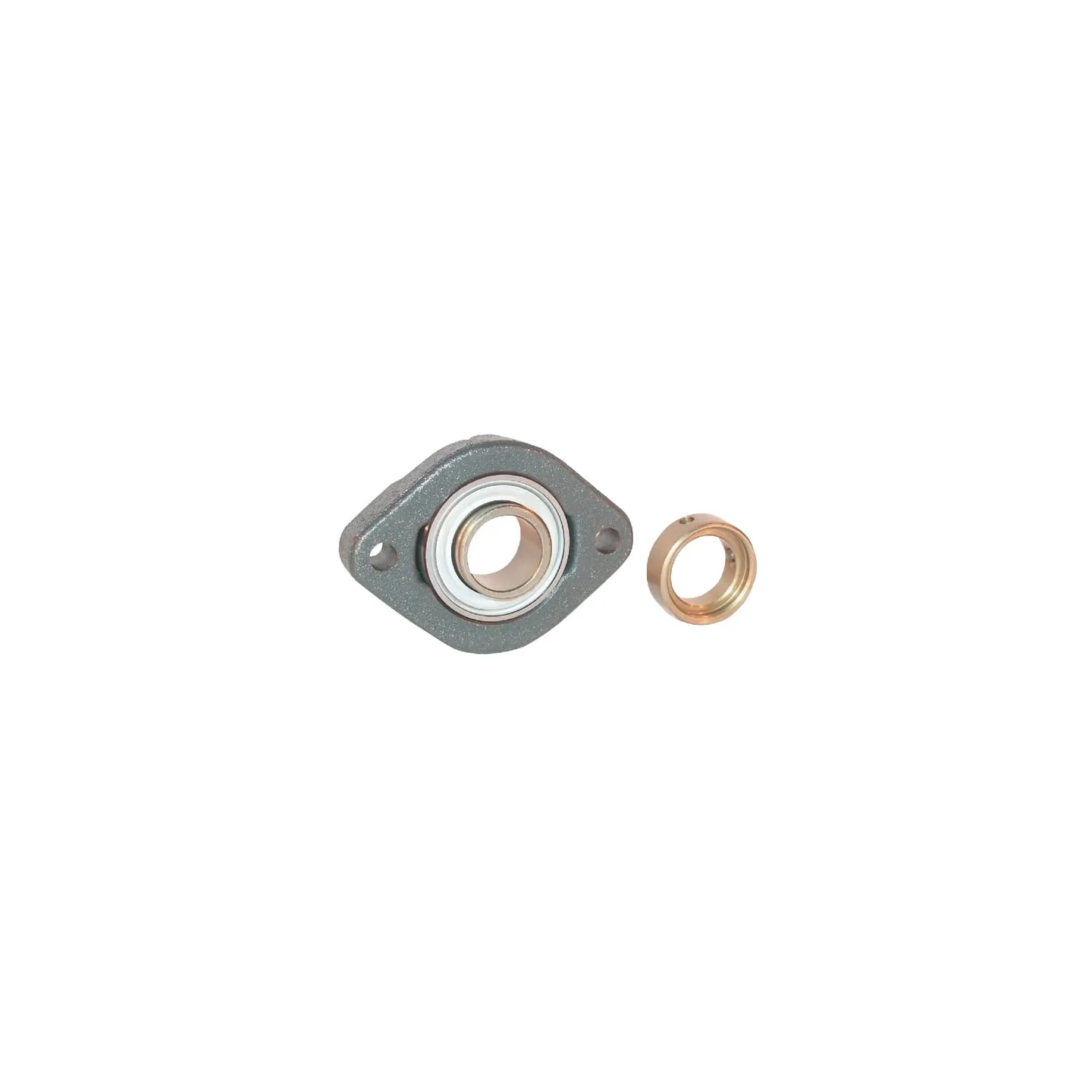

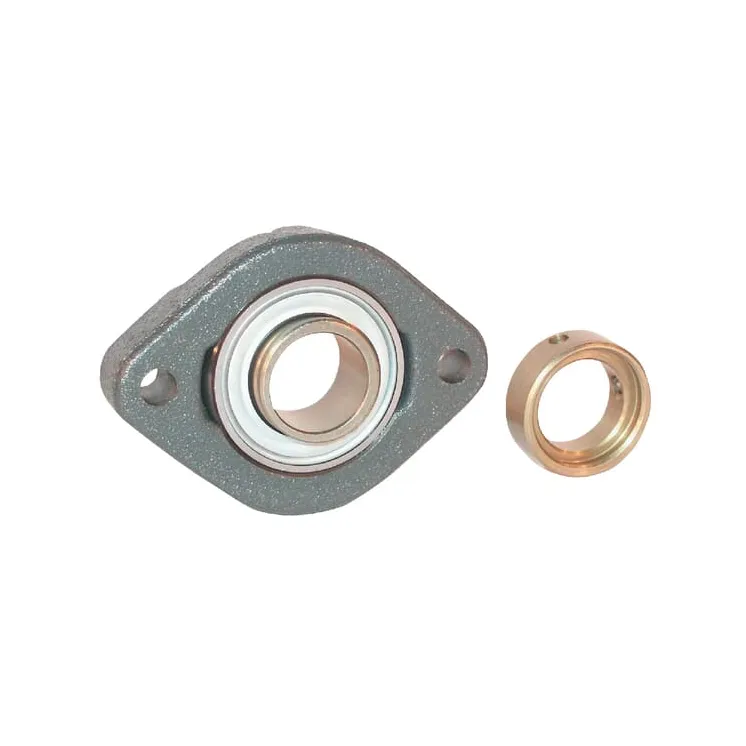

Korpuss FLCTE FLCTE25

Name: Korpuss FLCTE FLCTE25
Brand: INA/FAG
SKU: FLCTE25
Price: 36.02 EUR
Availability: InStock

Apmaksas iespējas

36,02 €

AR PVN

4-5 Darba dienas

Korpuss FLCTE FLCTE25 INA/FAG

IR NOLIKTAVĀ

ID: 63761

Apraksts

Part number	FLCTE25
EAN	4012802791488
Unit	Each
Details	Short design
Properties	Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Benefits	Low space requirement
Housing type	Oval flange
Bearing inside diameter	25 mm
Consists of	Bearing block Clamp ring
Total length	71 mm
Outside diameter	37.5 mm
AHousing width	97 mm
Total height	33.4 mm
Total width	71 mm
Bearing inner ring width	31 mm
MMounting holes distance	76.2 mm
Mounting holes diameter	9 mm
Grease nipple thread diameter	M6
Weight	0.47 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	FLCTE25
