Korpuss FLCTE FLCTE40

Name: Korpuss FLCTE FLCTE40
Brand: INA/FAG
SKU: FLCTE40
Price: 57.44 EUR
Availability: InStock

Apmaksas iespējas

57,44 €

AR PVN

4-5 Darba dienas

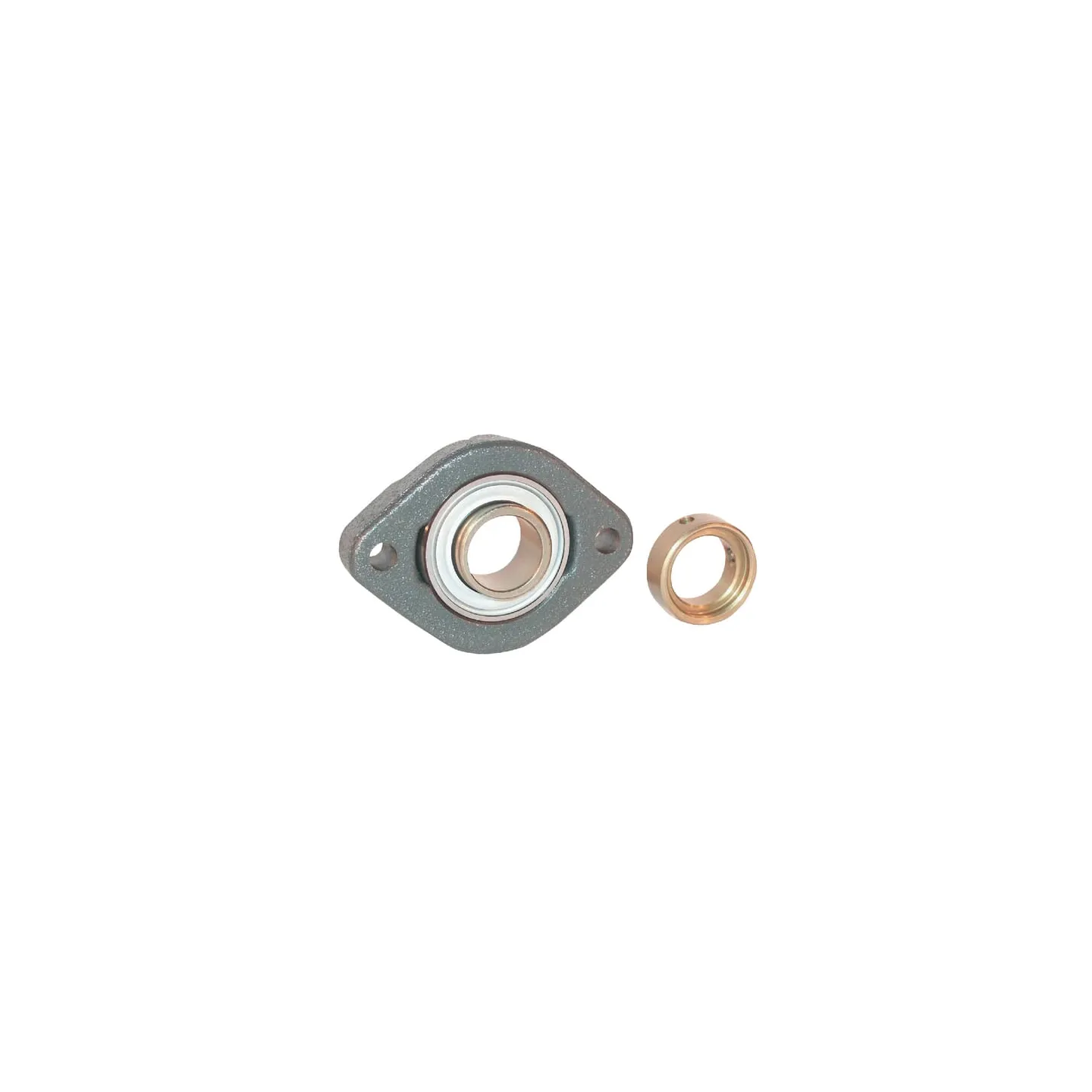

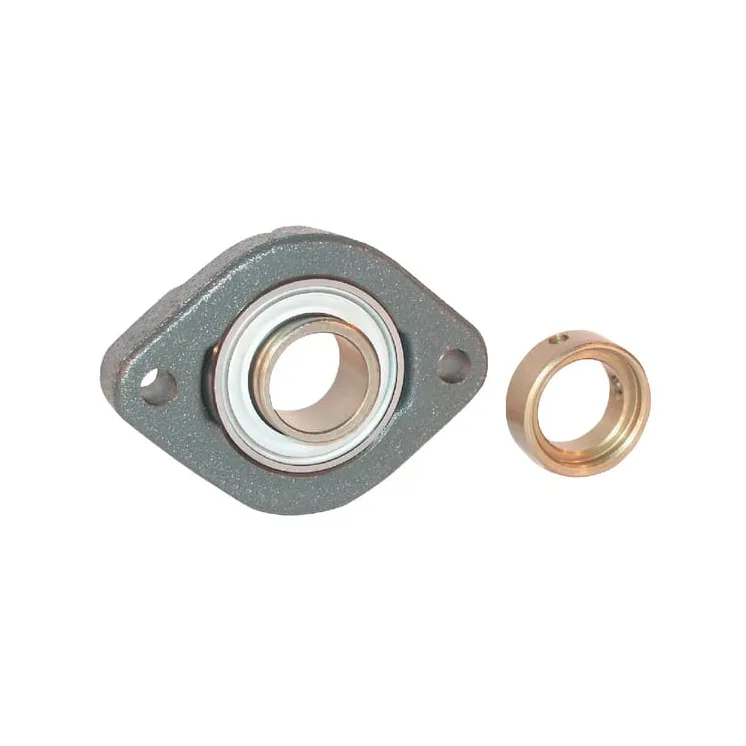

Korpuss FLCTE FLCTE40 INA/FAG

IR NOLIKTAVĀ

ID: 63767

Apraksts

Part number	FLCTE40
EAN	4012802807776
Unit	Each
Details	Short design
Properties	Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible
Benefits	Low space requirement
Housing type	Oval flange
Bearing inside diameter	40 mm
Consists of	Bearing block Clamp ring
Total length	100 mm
Outside diameter	58 mm
AHousing width	150 mm
Total height	46.3 mm
Total width	100 mm
Bearing inner ring width	43.7 mm
MMounting holes distance	119 mm
Mounting holes diameter	14 mm
Grease nipple thread diameter	M6
Weight	1.42 kg
Basic radial load static	19800 N
Basic radial load dynamic	32500 N
Original number equivalent	FLCTE40
