Korpuss GLCTE GLCTE15

Name: Korpuss GLCTE GLCTE15
Brand: INA/FAG
SKU: GLCTE15
Price: 38.09 EUR
Availability: InStock

Apmaksas iespējas

38,09 €

AR PVN

4-5 Darba dienas

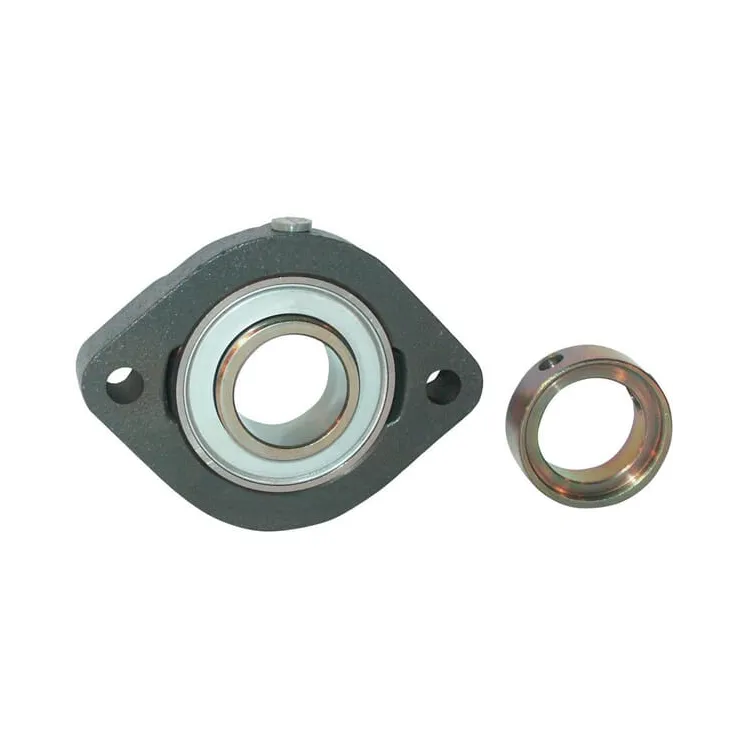

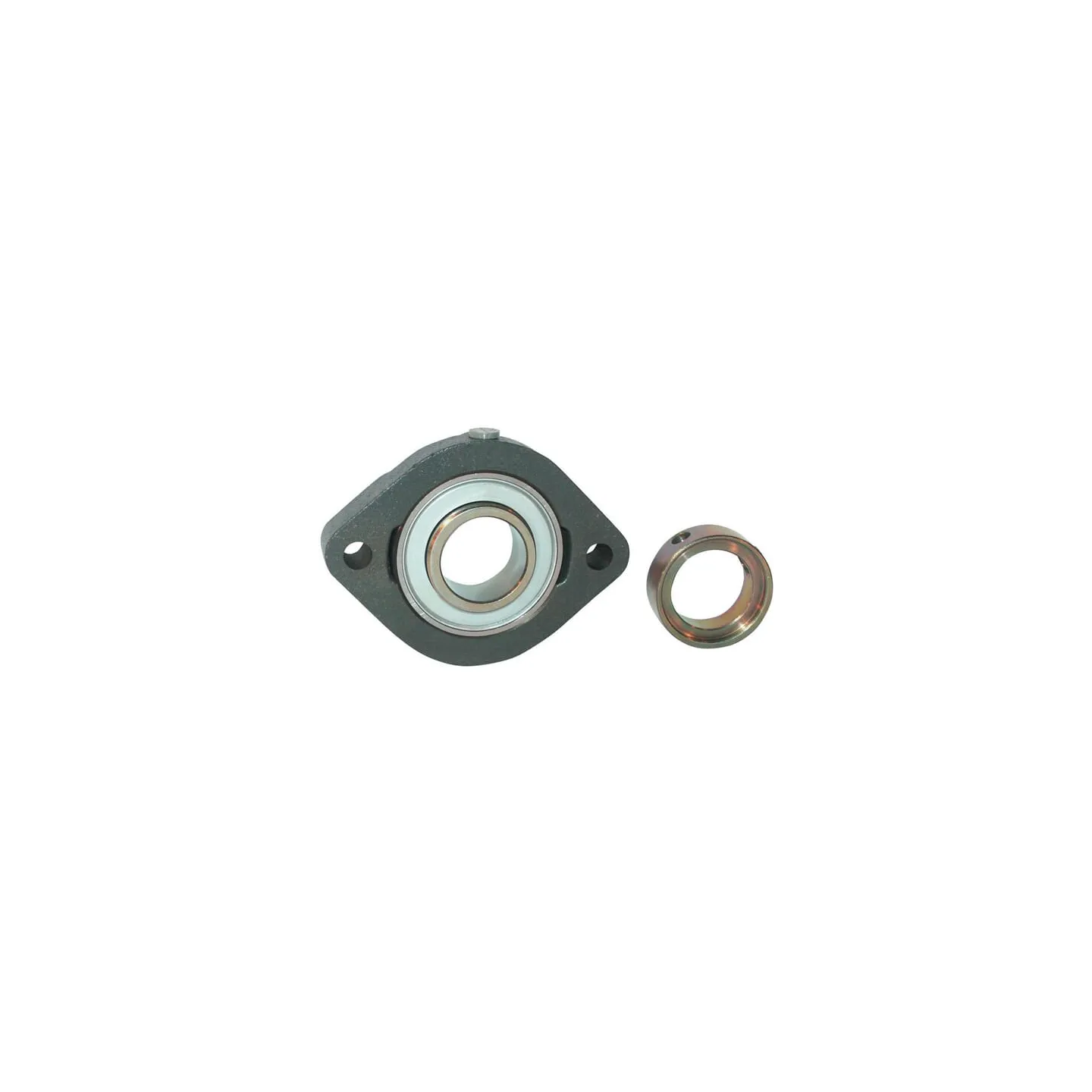

Korpuss GLCTE GLCTE15 INA/FAG

IR NOLIKTAVĀ

ID: 63786

Apraksts

Part number	GLCTE15
EAN	4012802791914
Unit	Each
Pros	Small installation space
Product details	Inner bearing has a one-sided extended inner ring with tightening washer Regreasable Short design Size Q recently adjusted from 1/8" to M6. Both versions are still in circulation
Includes	Bearing block Tightening washer
Housing type	Oval flange
dBearing inside diameter	15 mm
Total length	58.7 mm
AHousing width	81 mm
UTotal height	30.5 mm
Total width	28.6 mm
CHousing height	15 mm
Locking ring outside diameter	28 mm
PBearing balls distance to mounting surface	8.4 mm
MMounting holes distance	63.5 mm
Mounting holes diameter	6.6 mm
Grease nipple thread diameter	M6
Weight	0.29 kg
Basic radial load static	4750 N
Basic radial load dynamic	10100 N
Original number equivalent	GLCTE15
