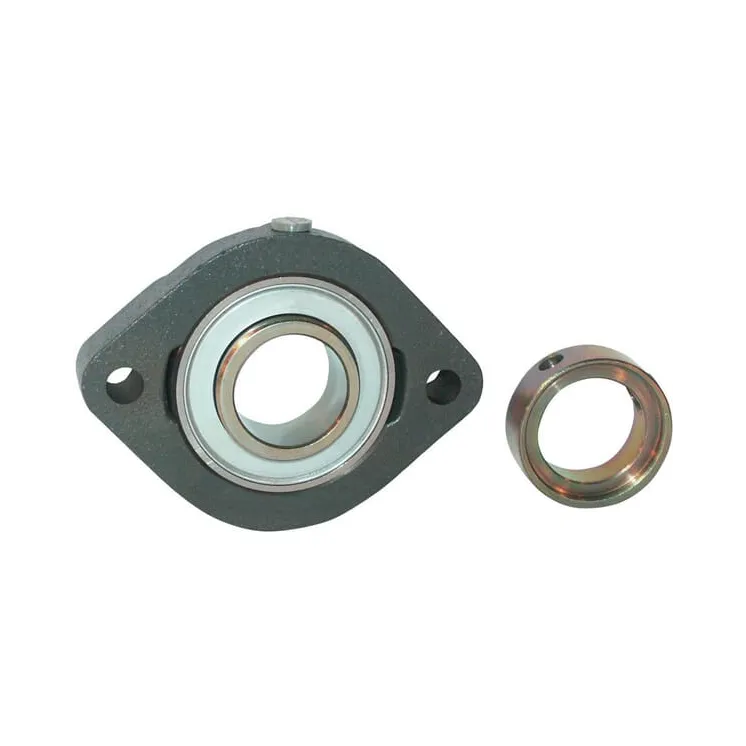

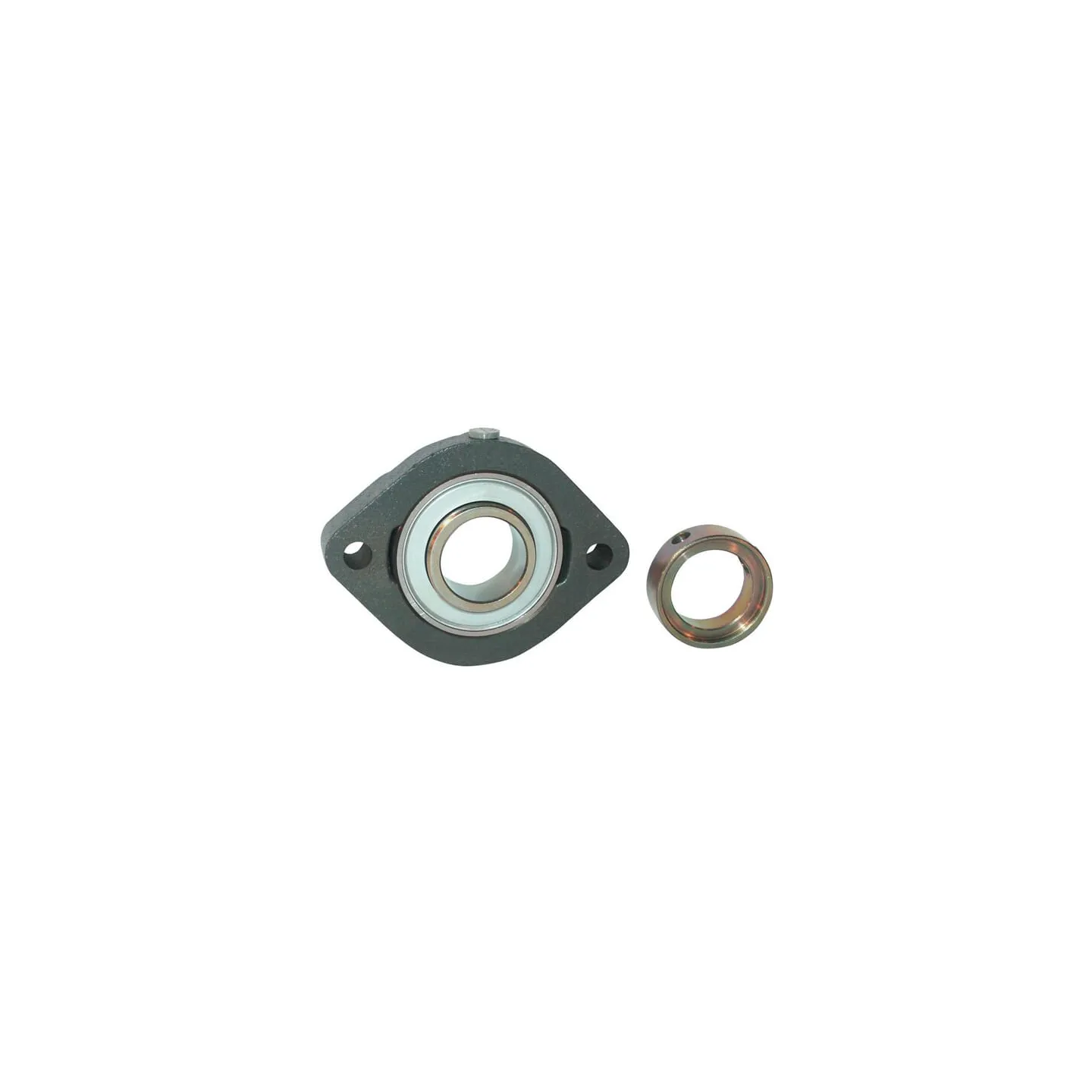

Korpuss GLCTE GLCTE25

Name: Korpuss GLCTE GLCTE25
Brand: INA/FAG
SKU: GLCTE25
Price: 40.1 EUR
Availability: BackOrder

Apmaksas iespējas

40,10 €

AR PVN

Pēc pieprasījuma

Korpuss GLCTE GLCTE25 INA/FAG

Uz pasūtījumu

ID: 63797

Apraksts

Part number	GLCTE25
EAN	4012802791853
Unit	Each
Pros	Small installation space
Product details	Inner bearing has a one-sided extended inner ring with tightening washer Regreasable Short design Size Q recently adjusted from 1/8" to M6. Both versions are still in circulation
Includes	Bearing block Tightening washer
Housing type	Oval flange
dBearing inside diameter	25 mm
Total length	71 mm
AHousing width	97 mm
UTotal height	33.4 mm
Total width	31 mm
CHousing height	17.5 mm
PBearing balls distance to mounting surface	9.9 mm
MMounting holes distance	76.2 mm
Mounting holes diameter	9 mm
Grease nipple thread diameter	M6
Weight	0.47 kg
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
Original number equivalent	GLCTE25
