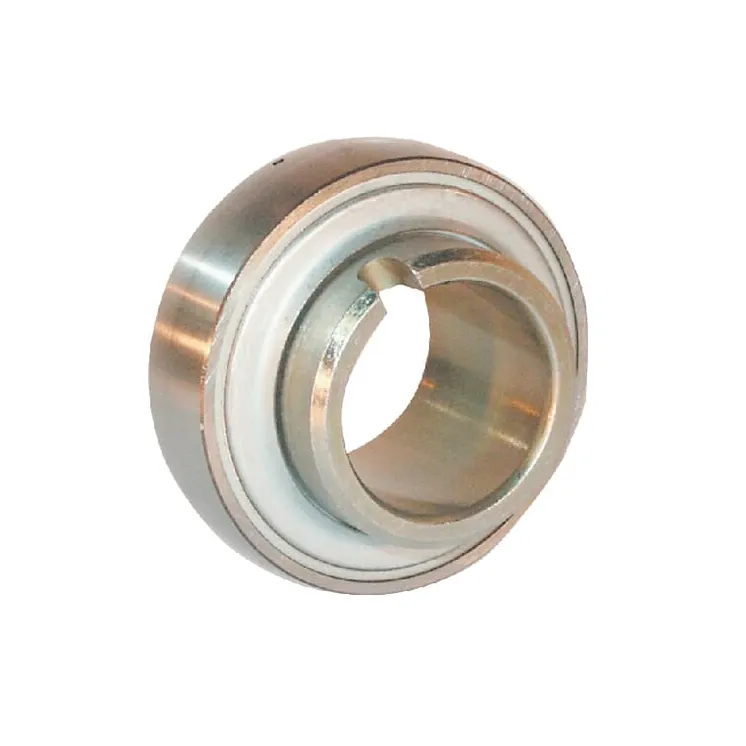

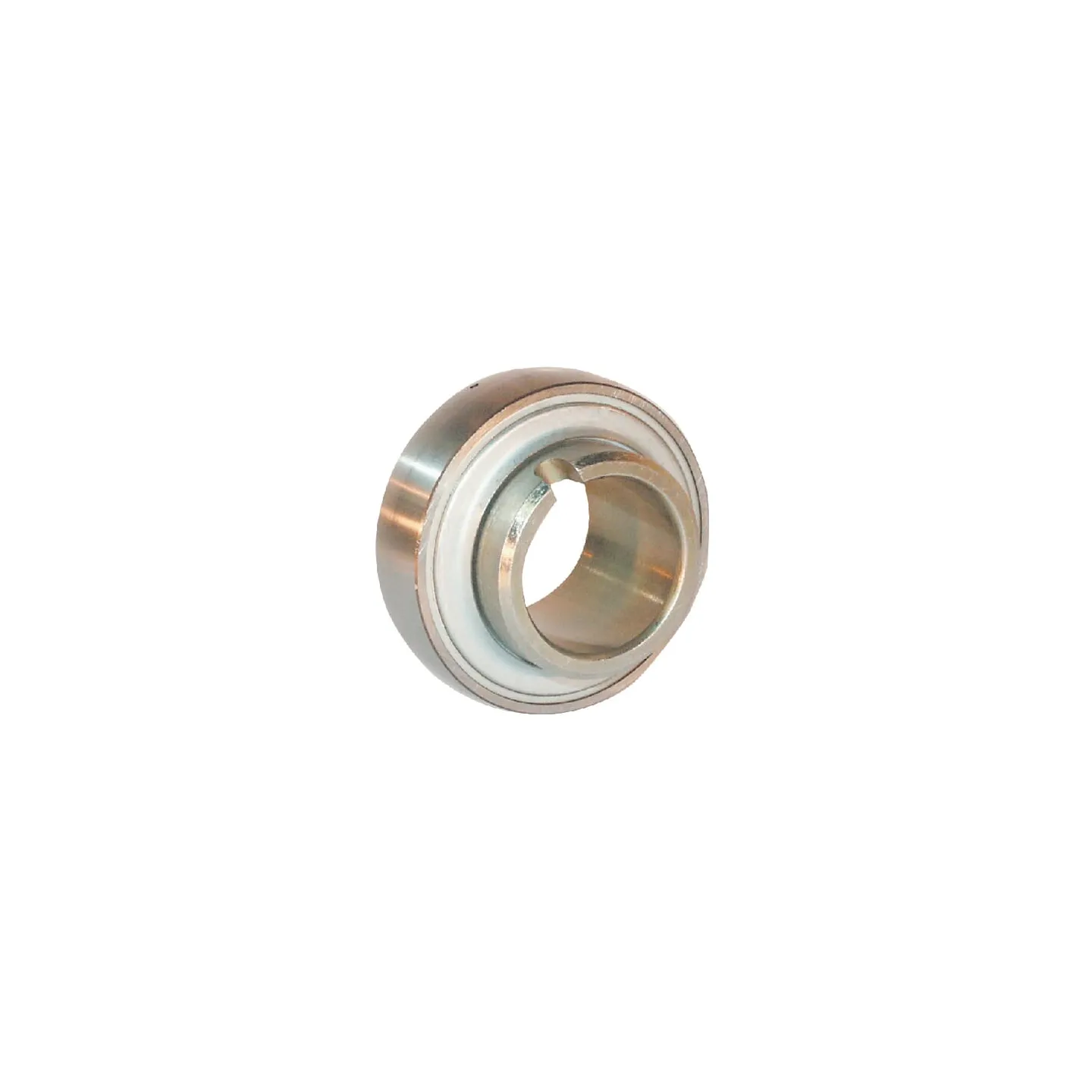

Gultņa ieliktnis 40x80x21mm GLE40KRRB

Name: Gultņa ieliktnis 40x80x21mm GLE40KRRB
Brand: INA/FAG
SKU: GLE40KRRB
Price: 74 EUR
Availability: InStock

Apmaksas iespējas

74,00 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 40x80x21mm GLE40KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63799

Apraksts

Part number	GLE40KRRB
EAN	4012802799576
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GLE..KRRB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with indentation on both sides Convex outer ring with lubricating holes R seal with Teflon sealing lips Inner ring up to wheel spindle 60mm in Corrotect design
Inside diameter	40 mm
Outside diameter	80 mm
Outer ring width	21 mm
Inner ring width	42.9 mm
Outside diameter of inner ring	52.3 mm
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Min working temperature	-40 °C
Max working temperature	150 °C
Ball centre to grease hole distance	6.2 mm
Sealing width	23.5 mm
Ball centre to end distance	15.9 mm
Original number equivalent	GLE40-KRR-B
Weight	0.56 kg
