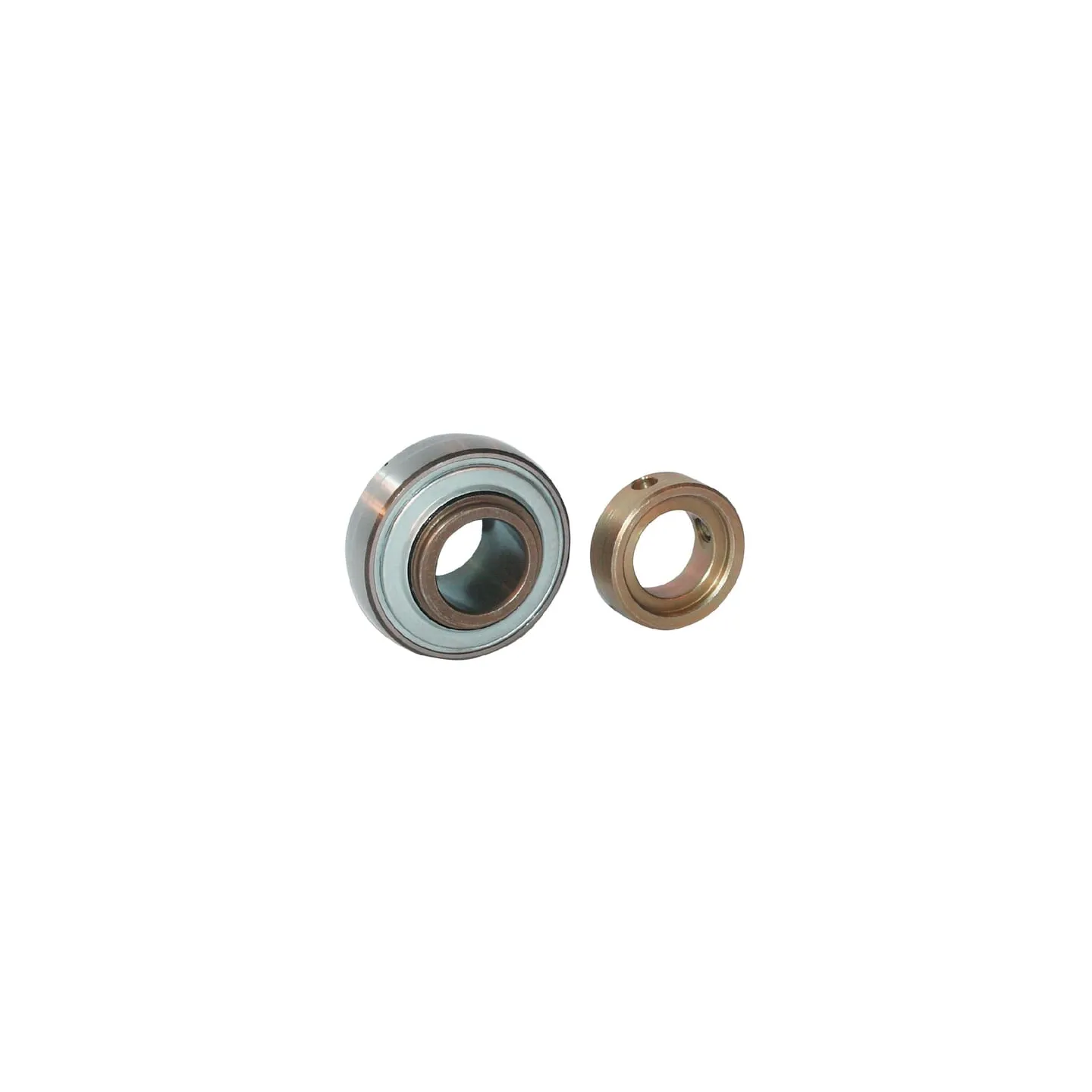

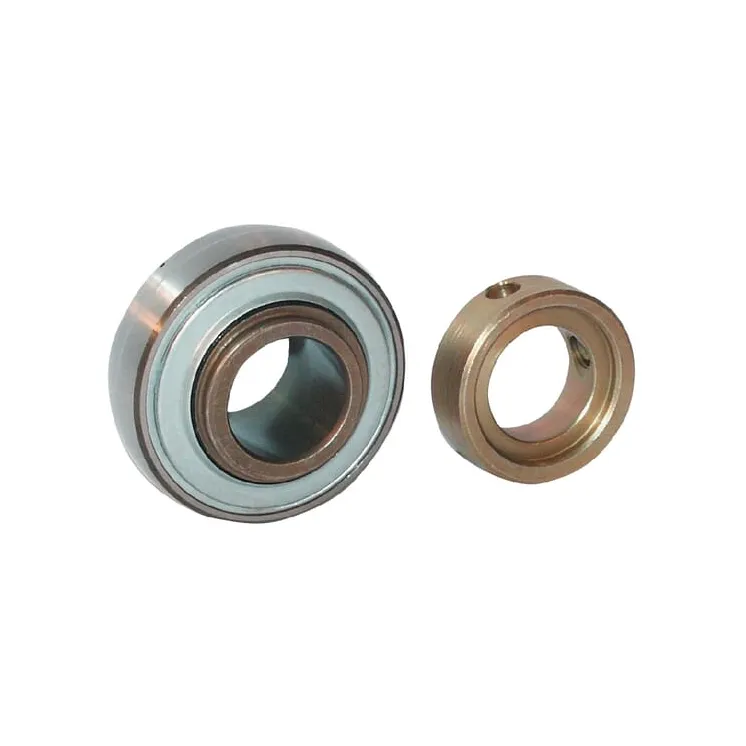

Gultņa ieliktnis 35x80x22mm GNE35KRRB

Name: Gultņa ieliktnis 35x80x22mm GNE35KRRB
Brand: INA/FAG
SKU: GNE35KRRB
Price: 82.66 EUR
Availability: InStock

Apmaksas iespējas

82,66 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 35x80x22mm GNE35KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63822

Apraksts

Part number	GNE35KRRB
EAN	4012802816402
Unit	Each
Product details	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Includes	Clamp bearing Clamp ring
Inside diameter	35 mm
Outside diameter	80 mm
Outer ring width	22 mm
Inner ring width	38.1 mm
Locking collar and inner ring width	51.6 mm
Locking collar outside diameter	55 mm
Outside diameter of inner ring	48 mm
Basic radial load static	20900 N
Basic radial load dynamic	39000 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	7 mm
Sealing width	25 mm
Ball centre to end distance	18.3 mm
Original number equivalent	GNE35-KRR-B
Weight	0.74 kg
