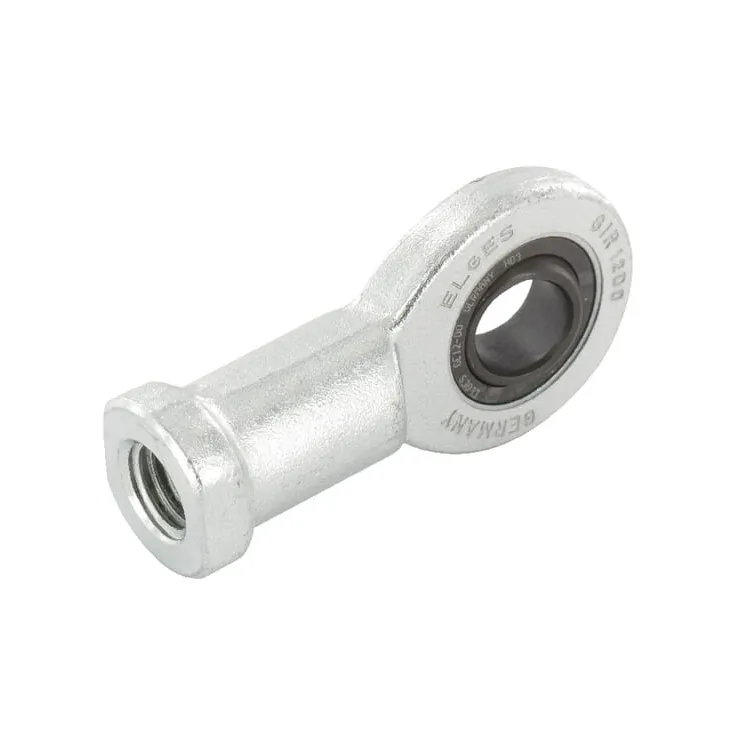

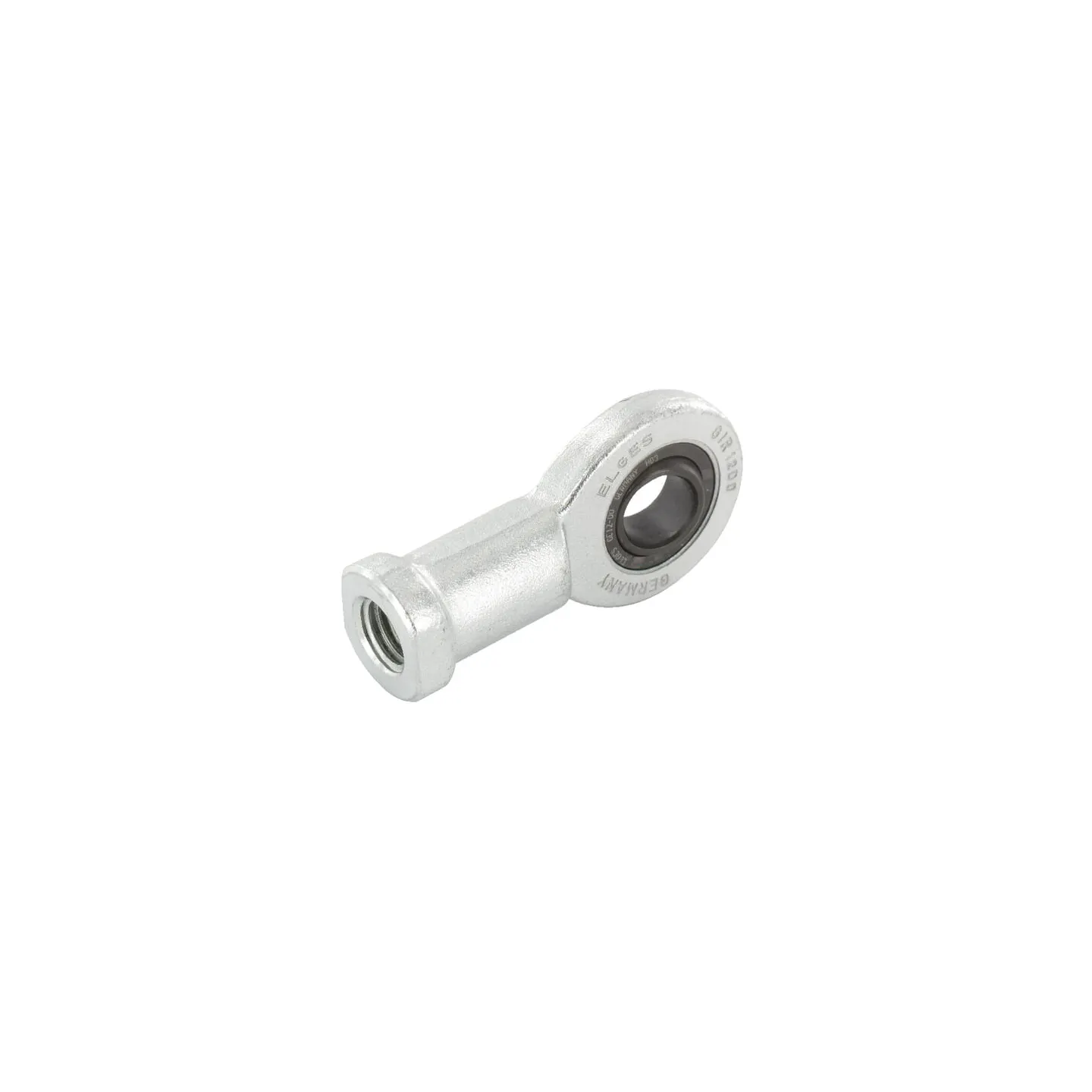

Stieņa galva GIR20DOINA

Name: Stieņa galva GIR20DOINA
Brand: INA/FAG
SKU: GIR20DOINA
Price: 54.99 EUR
Availability: InStock

Apmaksas iespējas

54,99 €

AR PVN

4-5 Darba dienas

Stieņa galva GIR20DOINA INA/FAG

IR NOLIKTAVĀ

ID: 63825

Apraksts

Part number	GIR20DOINA
EAN	4012802526837
Unit	Each
Diameter D4	27.5 mm
Distance basis center shaft	77 mm
Edge degrees	9 °
Height house	13 mm
Height inner ring	16 mm
Inner diameter	20.00 mm
Inside diameter	20 mm
Length L5	10 mm
Length L7	27 mm
Length	103.5 mm
Basic load ratings dyn. C	29600 N
Basic load ratings Stat. Co	75600 N
Suitable for original number	GIR20-DO
Outside diameter basis	32 mm
Outside diameter bearing	35 mm
Outside diameter innerring	24.1 mm
Outside diameter	53.00 mm
Suitable for original number	GIR20-DO
Thread	M20x1.5
Surface treatment	Zinc-plated
Thread direction	Right
Thread length	40 mm
Thread	M20 x 1.5 mm
Thread type	Right Hand
Type	Female thread
Weight	0.343 kg
Width	53 mm
