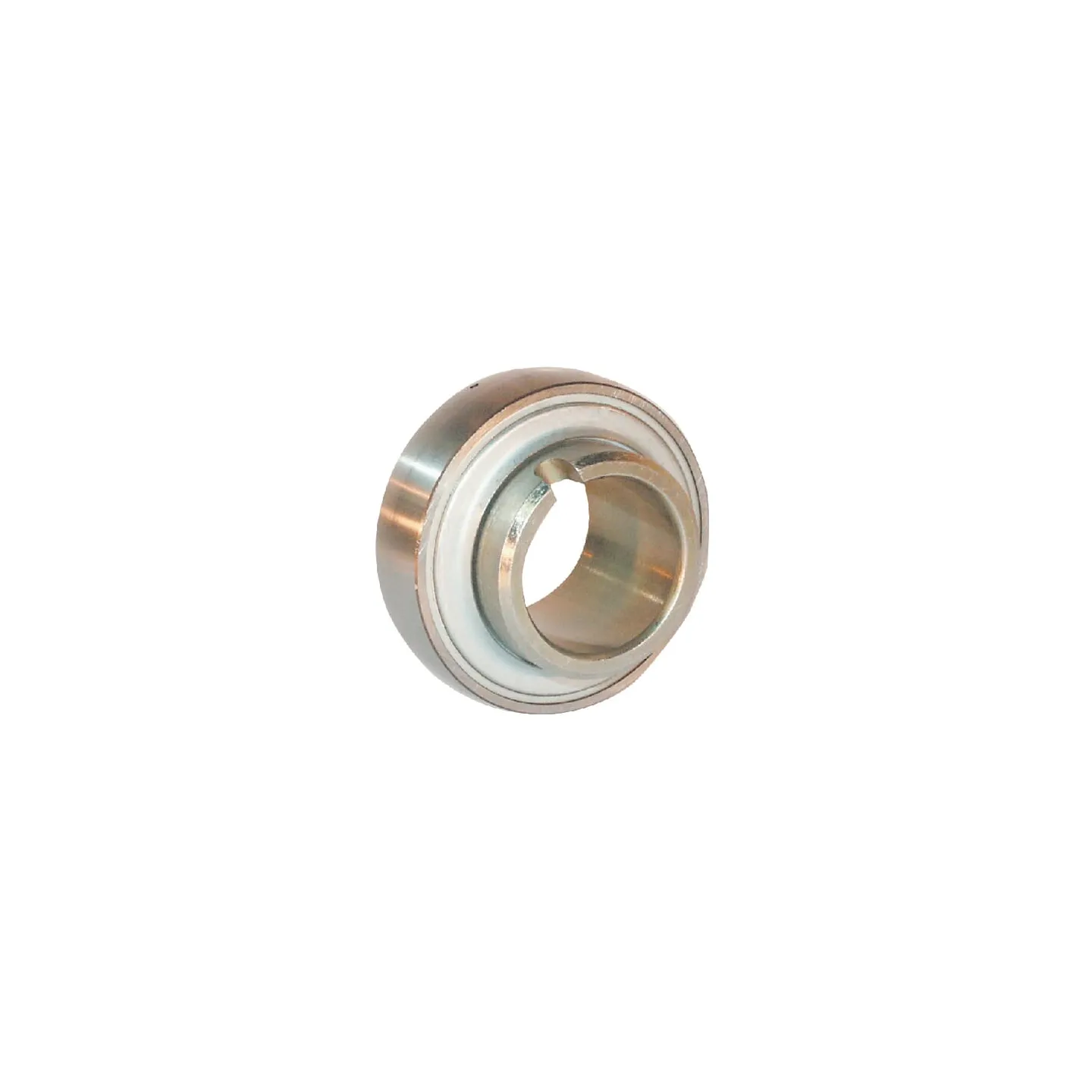

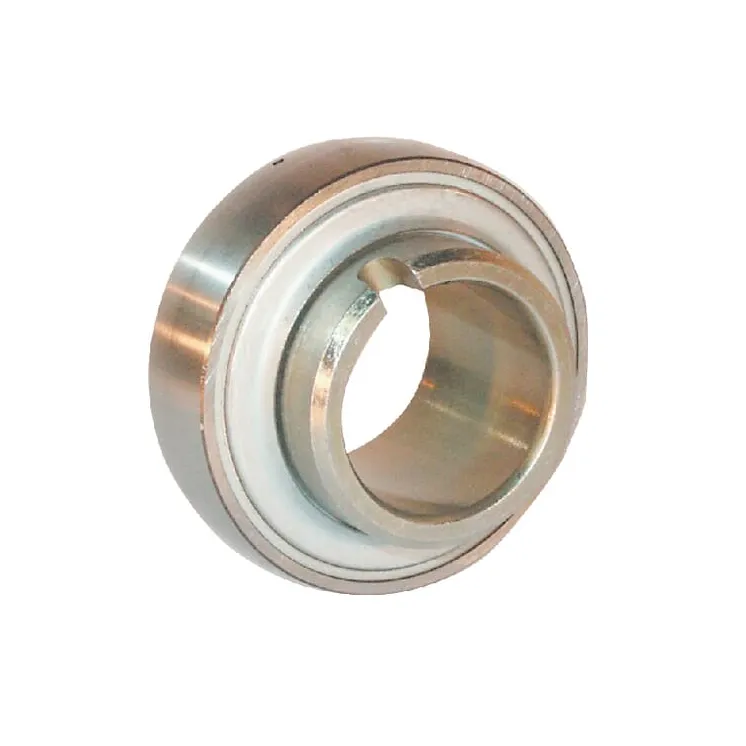

Gultņa ieliktnis 30x62x18mm GLE30KRRB

Name: Gultņa ieliktnis 30x62x18mm GLE30KRRB
Brand: INA/FAG
SKU: GLE30KRRB
Price: 50.76 EUR
Availability: BackOrder

Apmaksas iespējas

50,76 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 30x62x18mm GLE30KRRB INA/FAG

Uz pasūtījumu

ID: 63844

Apraksts

Part number	GLE30KRRB
EAN	4012802799613
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GLE..KRRB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with indentation on both sides Convex outer ring with lubricating holes R seal with Teflon sealing lips Inner ring up to wheel spindle 60mm in Corrotect design
Inside diameter	30 mm
Outside diameter	62 mm
Outer ring width	18 mm
Inner ring width	36.5 mm
Outside diameter of inner ring	40.2 mm
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Min working temperature	-40 °C
Max working temperature	150 °C
Ball centre to grease hole distance	5 mm
Sealing width	20.7 mm
Ball centre to end distance	14.5 mm
Original number equivalent	GLE30-KRR-B
Weight	0.3 kg
