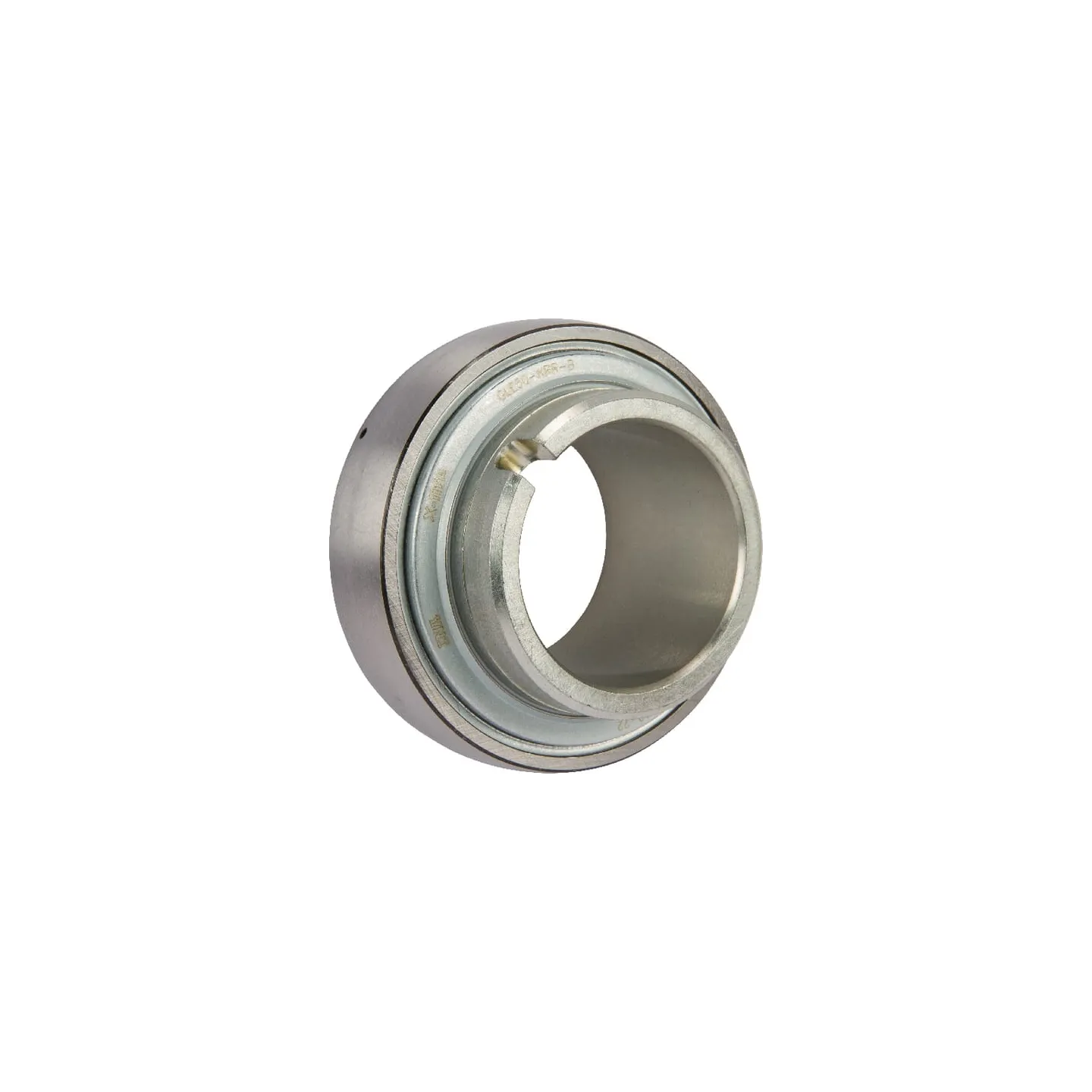

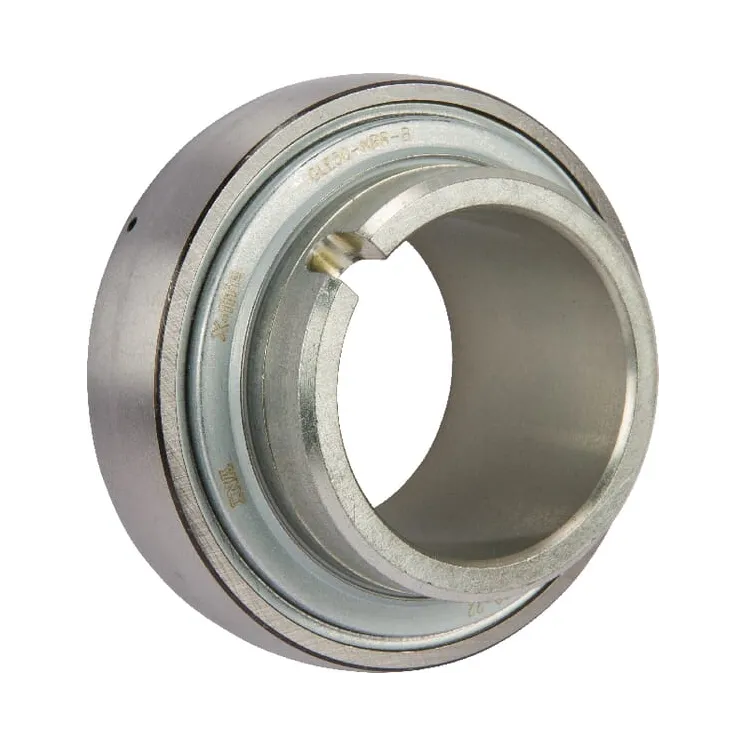

Gultņa ieliktnis 50x90x22mm GLE50KRRB

Name: Gultņa ieliktnis 50x90x22mm GLE50KRRB
Brand: INA/FAG
SKU: GLE50KRRB
Price: 96.72 EUR
Availability: InStock

Apmaksas iespējas

96,72 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 50x90x22mm GLE50KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63861

Apraksts

Part number	GLE50KRRB
EAN	4012802799538
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GLE..KRRB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with indentation on both sides Convex outer ring with lubricating holes R seal with Teflon sealing lips Inner ring up to wheel spindle 60mm in Corrotect design
Inside diameter	50 mm
Outside diameter	90 mm
Outer ring width	22 mm
Inner ring width	49.2 mm
Outside diameter of inner ring	62.8 mm
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Min working temperature	-40 °C
Max working temperature	150 °C
Ball centre to grease hole distance	6.9 mm
Sealing width	26.4 mm
Ball centre to end distance	19 mm
Weight	0.75 kg
