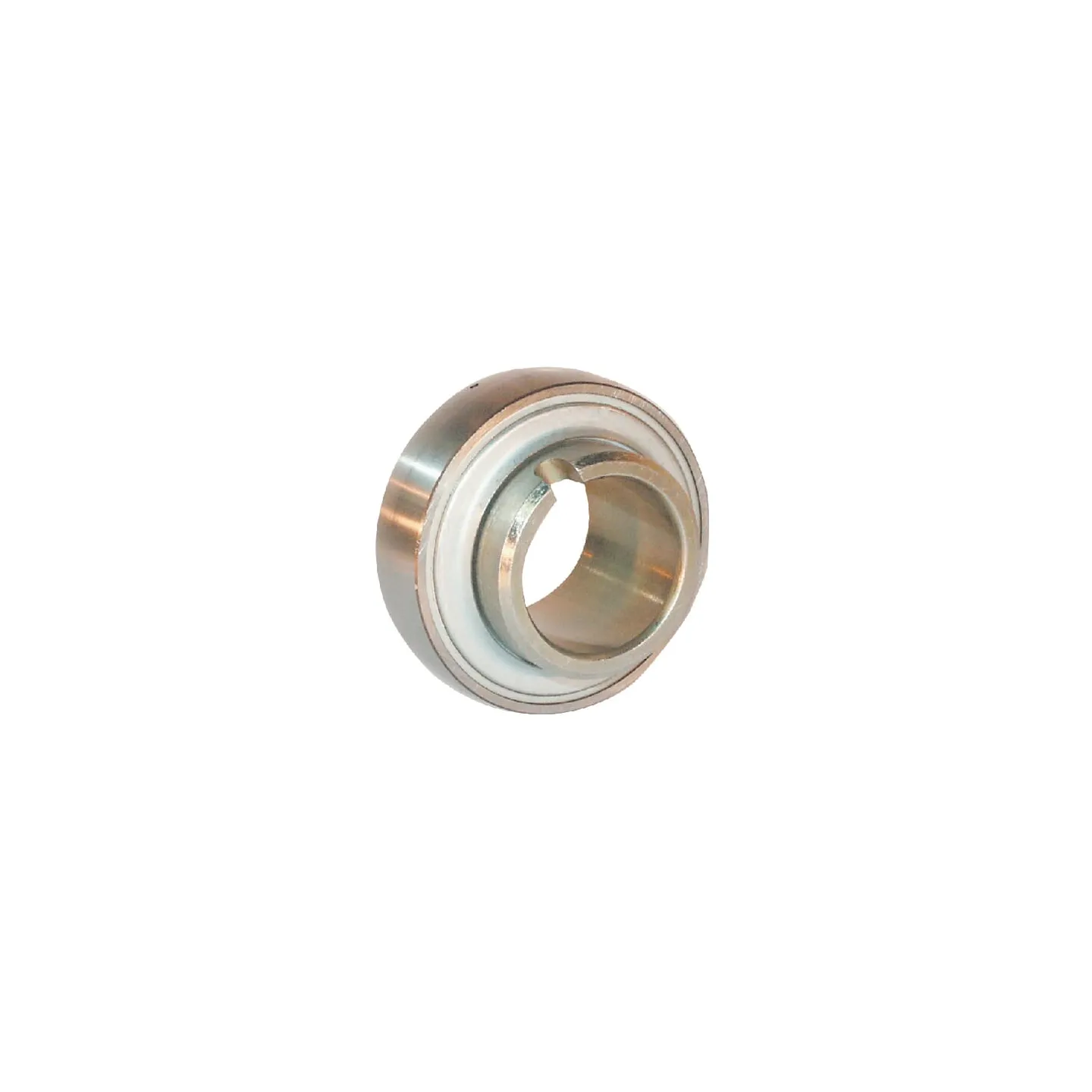

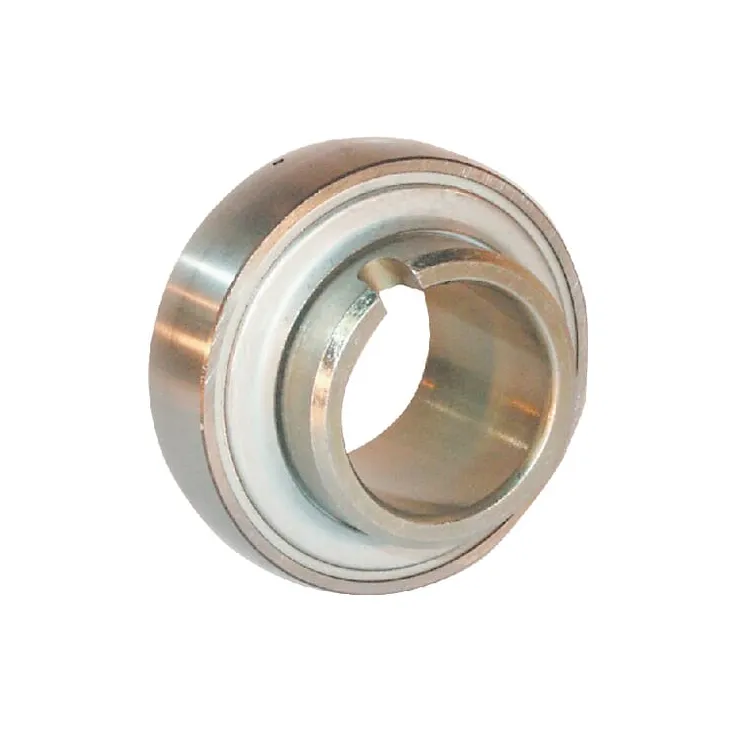

Gultņa ieliktnis 35x72x19mm GLE35KRRB

Name: Gultņa ieliktnis 35x72x19mm GLE35KRRB
Brand: INA/FAG
SKU: GLE35KRRB
Price: 55.36 EUR
Availability: InStock

Apmaksas iespējas

55,36 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 35x72x19mm GLE35KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63866

Apraksts

Part number	GLE35KRRB
EAN	4012802799590
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GLE..KRRB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with indentation on both sides Convex outer ring with lubricating holes R seal with Teflon sealing lips Inner ring up to wheel spindle 60mm in Corrotect design
Inside diameter	35 mm
Outside diameter	72 mm
Outer ring width	19 mm
Inner ring width	37.7 mm
Outside diameter of inner ring	46.8 mm
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
Min working temperature	-40 °C
Max working temperature	150 °C
Ball centre to grease hole distance	5.7 mm
Sealing width	22.5 mm
Ball centre to end distance	15.7 mm
Original number equivalent	GLE35-KRR-B
Weight	0.42 kg
