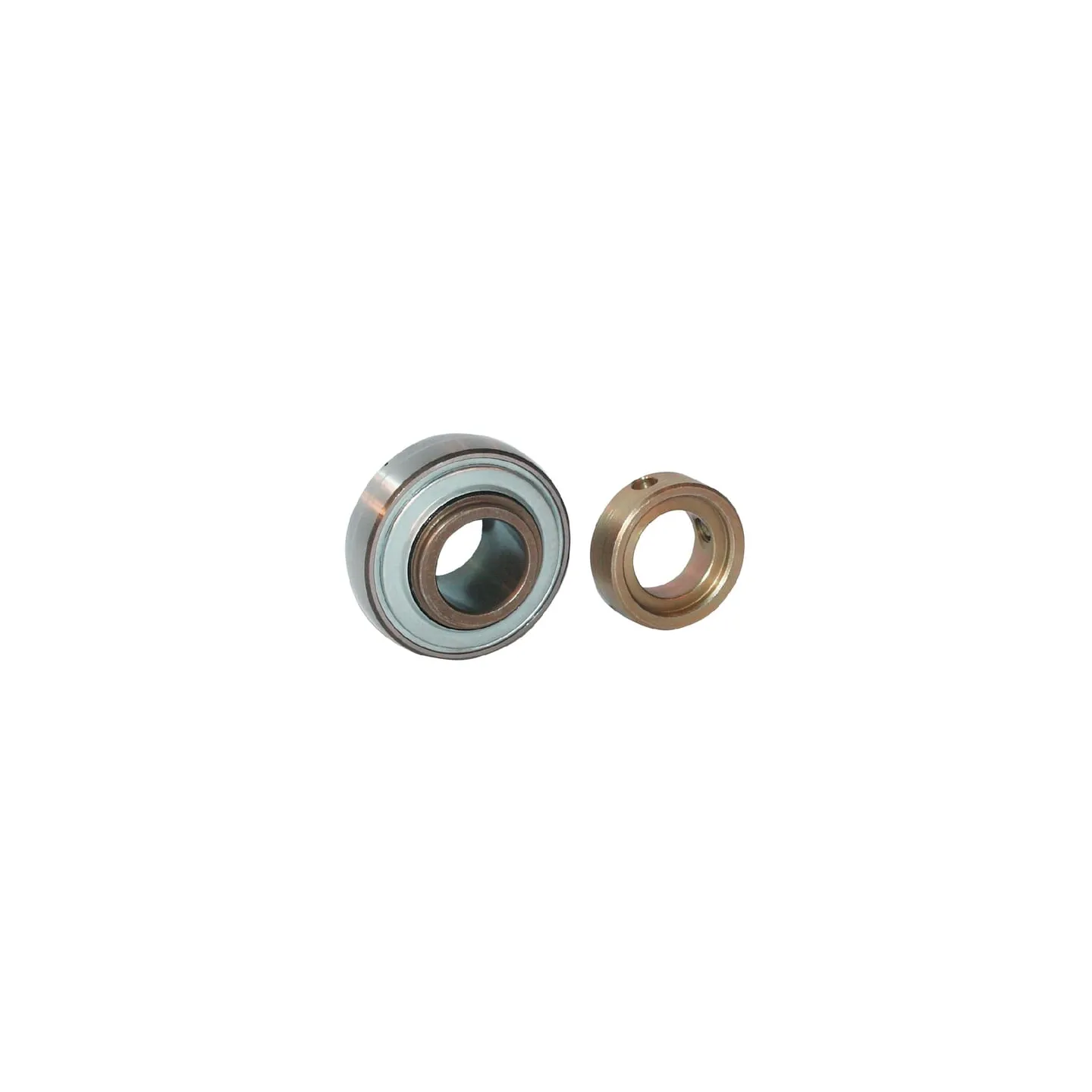

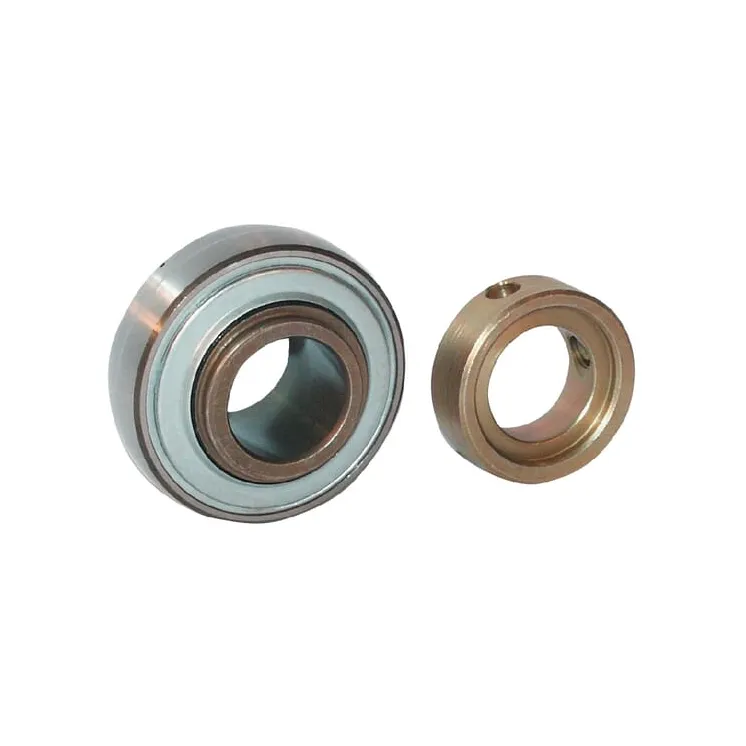

Gultņa ieliktnis 40x90x23mm GNE40KRRB

Name: Gultņa ieliktnis 40x90x23mm GNE40KRRB
Brand: INA/FAG
SKU: GNE40KRRB
Price: 82.28 EUR
Availability: InStock

Apmaksas iespējas

82,28 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 40x90x23mm GNE40KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63868

Apraksts

Part number	GNE40KRRB
EAN	4012802803662
Unit	Each
Product details	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Includes	Clamp bearing Clamp ring
Inside diameter	40 mm
Outside diameter	90 mm
Outer ring width	23 mm
Inner ring width	41 mm
Locking collar and inner ring width	54.6 mm
Locking collar outside diameter	63 mm
Outside diameter of inner ring	53.8 mm
Basic radial load static	26000 N
Basic radial load dynamic	47000 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	7.5 mm
Sealing width	26 mm
Ball centre to end distance	18 mm
Original number equivalent	GNE40-KRR-B
Weight	1.02 kg
