Gultņa ieliktnis 30x72x20mm GNE30KRRB

Name: Gultņa ieliktnis 30x72x20mm GNE30KRRB
Brand: INA/FAG
SKU: GNE30KRRB
Price: 70.31 EUR
Availability: BackOrder

Apmaksas iespējas

70,31 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 30x72x20mm GNE30KRRB INA/FAG

Uz pasūtījumu

ID: 63875

Apraksts

Part number	GNE30KRRB
EAN	4012802803686
Unit	Each

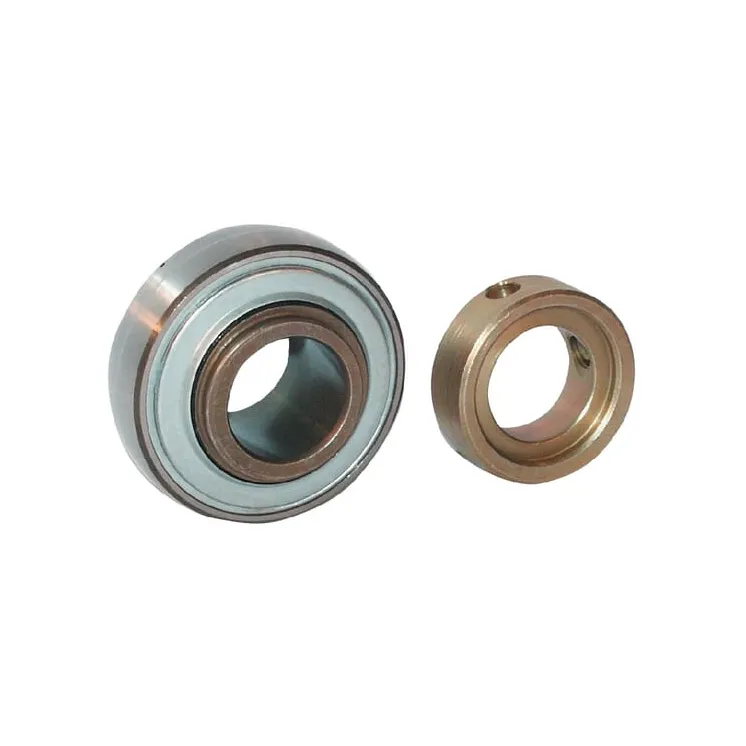

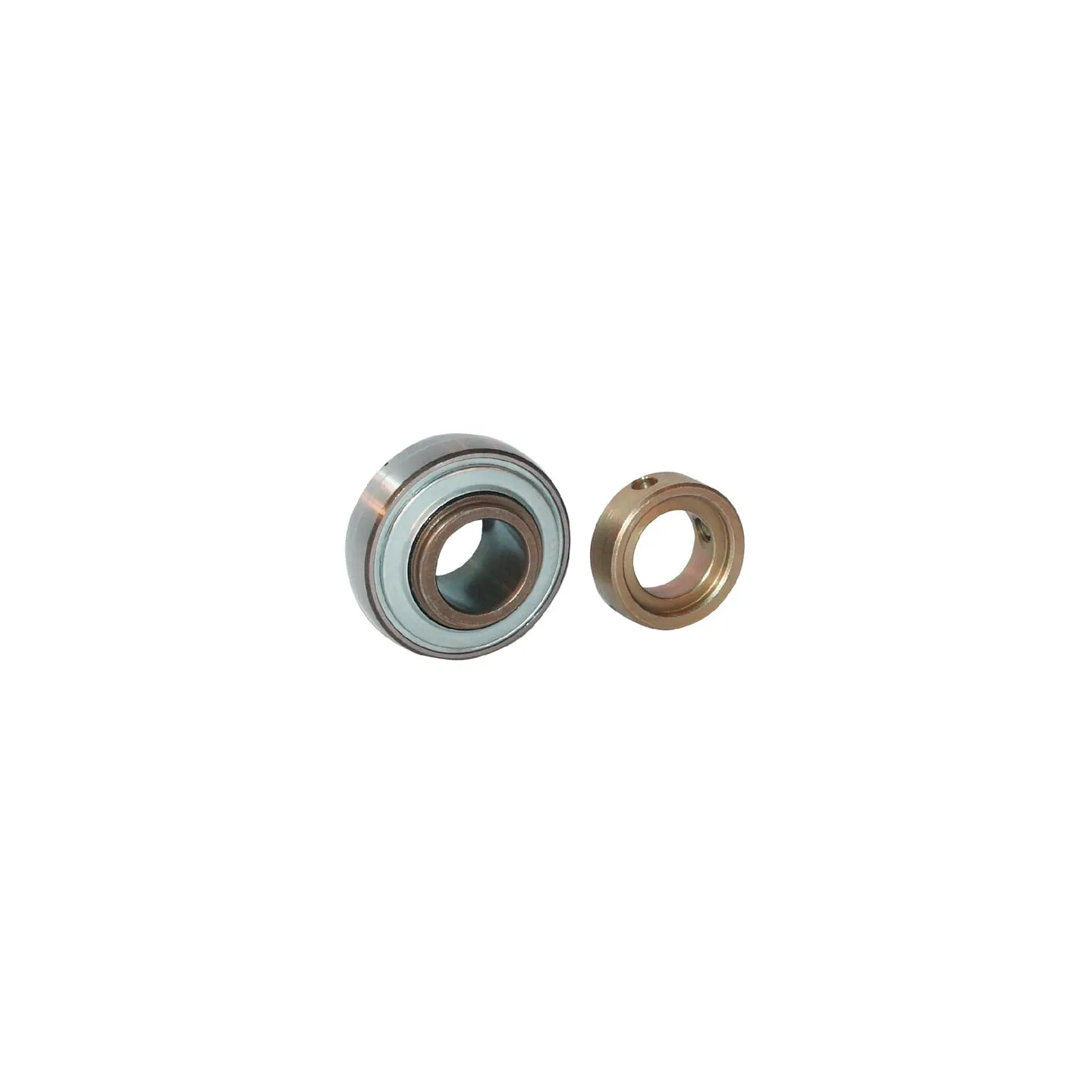

Product details	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Includes	Clamp bearing Clamp ring
Inside diameter	30 mm
Outside diameter	72 mm
Outer ring width	20 mm
Inner ring width	36.5 mm
Locking collar and inner ring width	50 mm
Locking collar outside diameter	51 mm
Outside diameter of inner ring	44 mm
Basic radial load static	16700 N
Basic radial load dynamic	31500 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	6.2 mm
Sealing width	24 mm
Ball centre to end distance	17.5 mm
Original number equivalent	GNE30-KRR-B
Weight	0.63 kg
