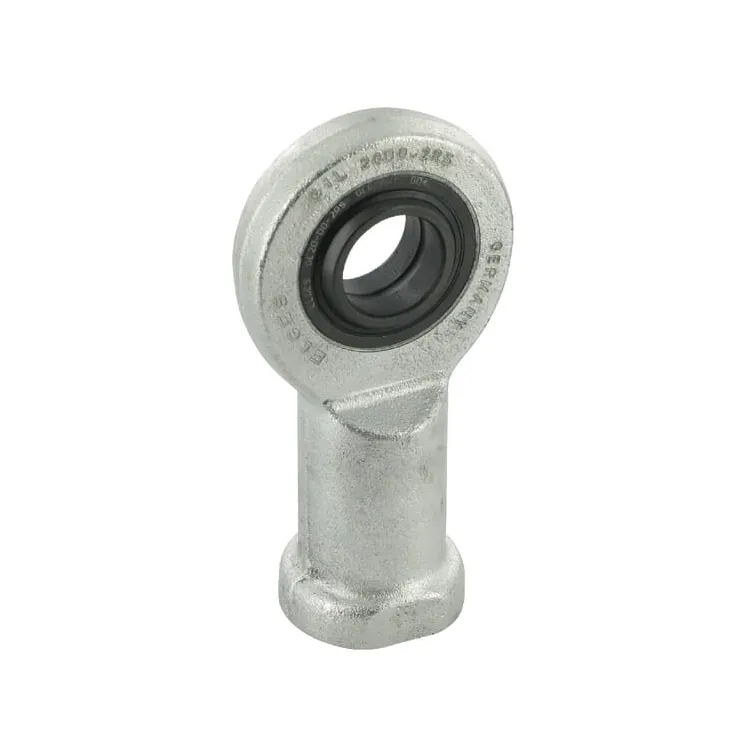

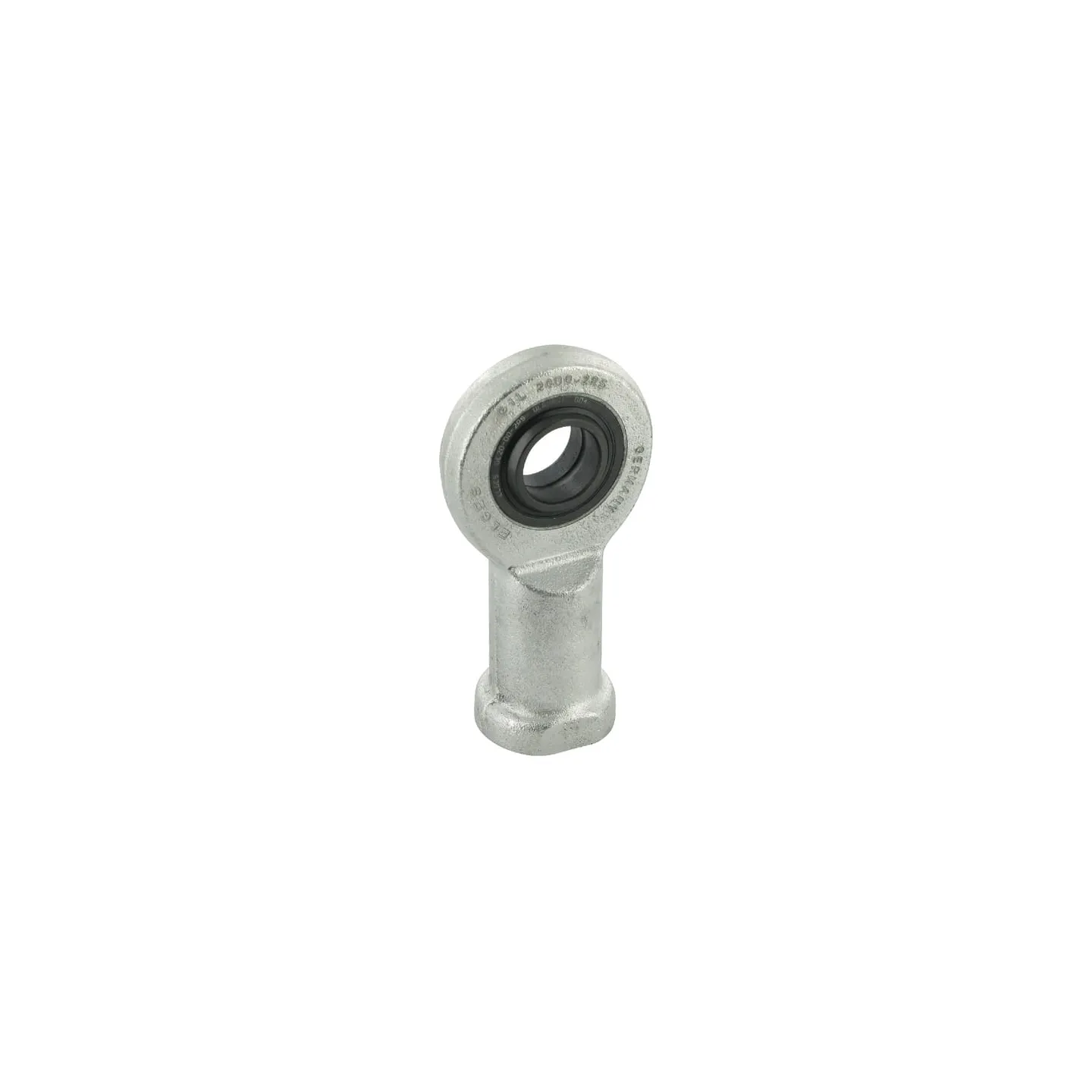

Stieņa galva, kreisā vītne GIL20DO2RSINA

Name: Stieņa galva, kreisā vītne GIL20DO2RSINA
Brand: INA/FAG
SKU: GIL20DO2RSINA
Price: 75.03 EUR
Availability: BackOrder

Apmaksas iespējas

75,03 €

AR PVN

Pēc pieprasījuma

Stieņa galva, kreisā vītne GIL20DO2RSINA INA/FAG

Uz pasūtījumu

ID: 63894

Apraksts

Part number	GIL20DO2RSINA
EAN	4012802526387
Unit	Each
Diameter D4	27.5 mm
D5Diameter D5	35 mm
Distance basis center shaft	77 mm
Edge degrees	9 °
Height house	13 mm
Height inner ring	16 mm
Inner diameter	20.00 mm
Inside diameter	20 mm
Length L5	10 mm
Length L7	27 mm
Length	103.5 mm
Basic load ratings dyn. C	29600 N
Basic load ratings Stat. Co	75600 N
Suitable for original number	GIL20-DO-2RS
Outside diameter basis	32 mm
Outside diameter bearing	35 mm
Outside diameter innerring	24.1 mm
Outside diameter	53.00 mm
Suitable for original number	GIL20-DO-2RS
Thread	M20x1.5
Thread direction	Left
Thread length	40 mm
Thread	M20x1.5 mm
Thread type	Left Hand
Weight	0.36 kg
Width	53 mm
