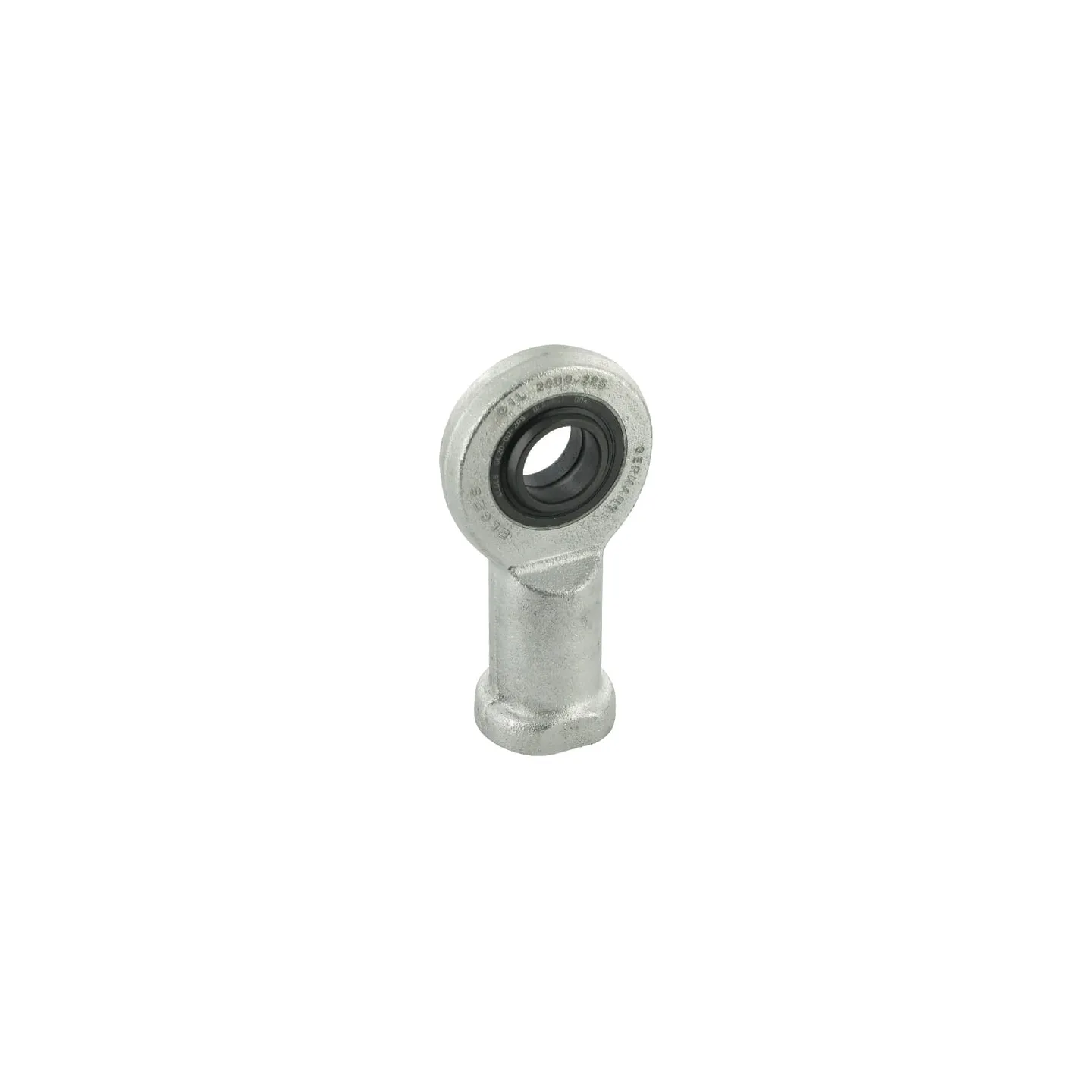

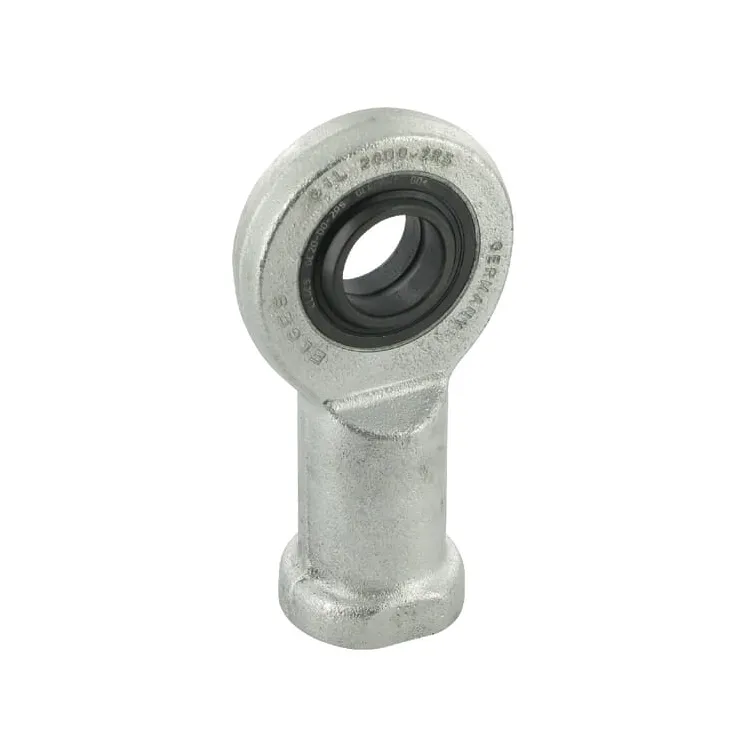

Stieņa galva, kreisā vītne GIL25DO2RSINA

Name: Stieņa galva, kreisā vītne GIL25DO2RSINA
Brand: INA/FAG
SKU: GIL25DO2RSINA
Price: 96.88 EUR
Availability: InStock

Apmaksas iespējas

96,88 €

AR PVN

4-5 Darba dienas

Stieņa galva, kreisā vītne GIL25DO2RSINA INA/FAG

IR NOLIKTAVĀ

ID: 63903

Apraksts

Part number	GIL25DO2RSINA
EAN	4012802528008
Unit	Each
Diameter D4	33.5 mm
D5Diameter D5	42 mm
Distance basis center shaft	94 mm
Edge degrees	7 °
Height house	17 mm
Height inner ring	20 mm
Inner diameter	25.00 mm
Inside diameter	25 mm
Length L5	12 mm
Length L7	32 mm
Length	126 mm
Basic load ratings dyn. C	48300 N
Basic load ratings Stat. Co	88300 N
Suitable for original number	GIL25-DO-2RS
Outside diameter basis	36 mm
Outside diameter bearing	42 mm
Outside diameter innerring	29.3 mm
Outside diameter	64.00 mm
Suitable for original number	GIL25-DO-2RS
Thread	M24x2
Thread direction	Left
Thread length	48 mm
Thread	M24x2 mm
Thread type	Left Hand
Weight	0.66 kg
Width	64 mm
