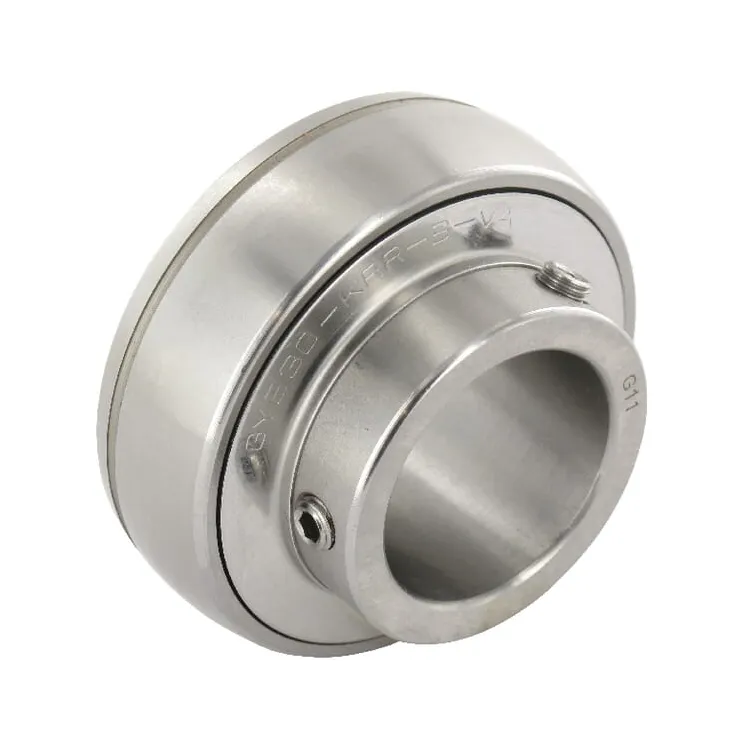

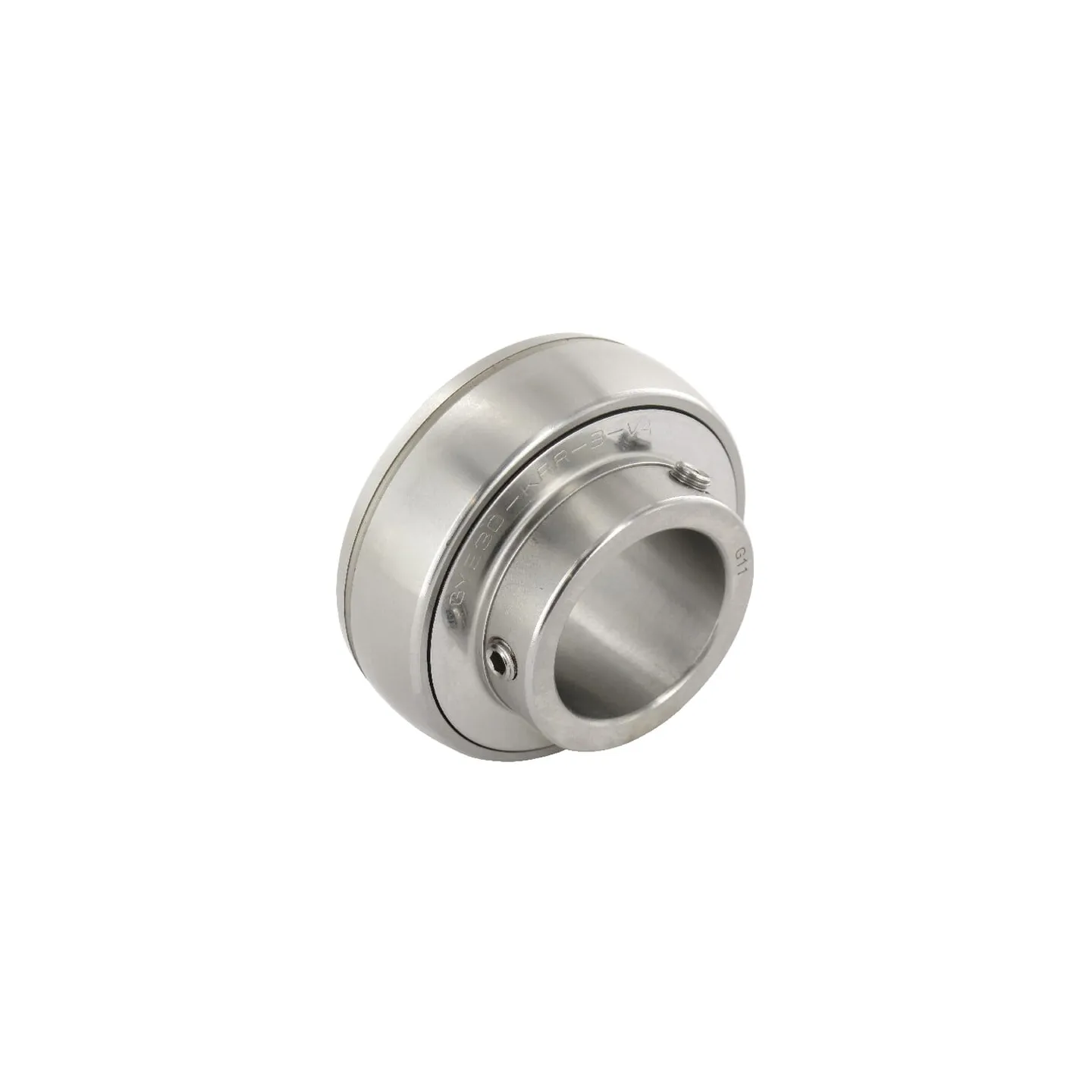

Gultņa ieliktnis 30x62x19mm GYE30KRRBFA107V

Name: Gultņa ieliktnis 30x62x19mm GYE30KRRBFA107V
Brand: INA/FAG
SKU: GYE30KRRBFA107V
Price: 120.02 EUR
Availability: InStock

Apmaksas iespējas

120,02 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x19mm GYE30KRRBFA107V INA/FAG

IR NOLIKTAVĀ

ID: 63931

Apraksts

Part number	GYE30KRRBFA107V
EAN	4047643202862
Unit	Each
Long description	Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA
Details	Made entirely of stainless steel
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner ring extended on both sides with adjusting screws Convex outer ring with lubricating holes R seal Stainless steel cage
Technical info	Addition to FA107: bearing with lubrication openings on the mounting side
Benefits	Rust-resistant
Inside diameter	30 mm
Outside diameter	62 mm
Consists of	Clamp bearing 2 adjusting screws
Outer ring width	19 mm
Inner ring width	38.1 mm
Outside diameter of inner ring	40.31 mm
Locking screw centre to end distance	6 mm
Basic radial load static	11300 N
Basic radial load dynamic	19500 N
Material	Stainless steel
Wrench/Spanner size	3.0 mm
Ball centre to grease hole distance	5 mm
Sealing width	17 mm
Ball centre to end distance	15.9 mm
Original number equivalent	GYE30-KRR-B-FA107-VA-HLA
Weight	0.3 kg
