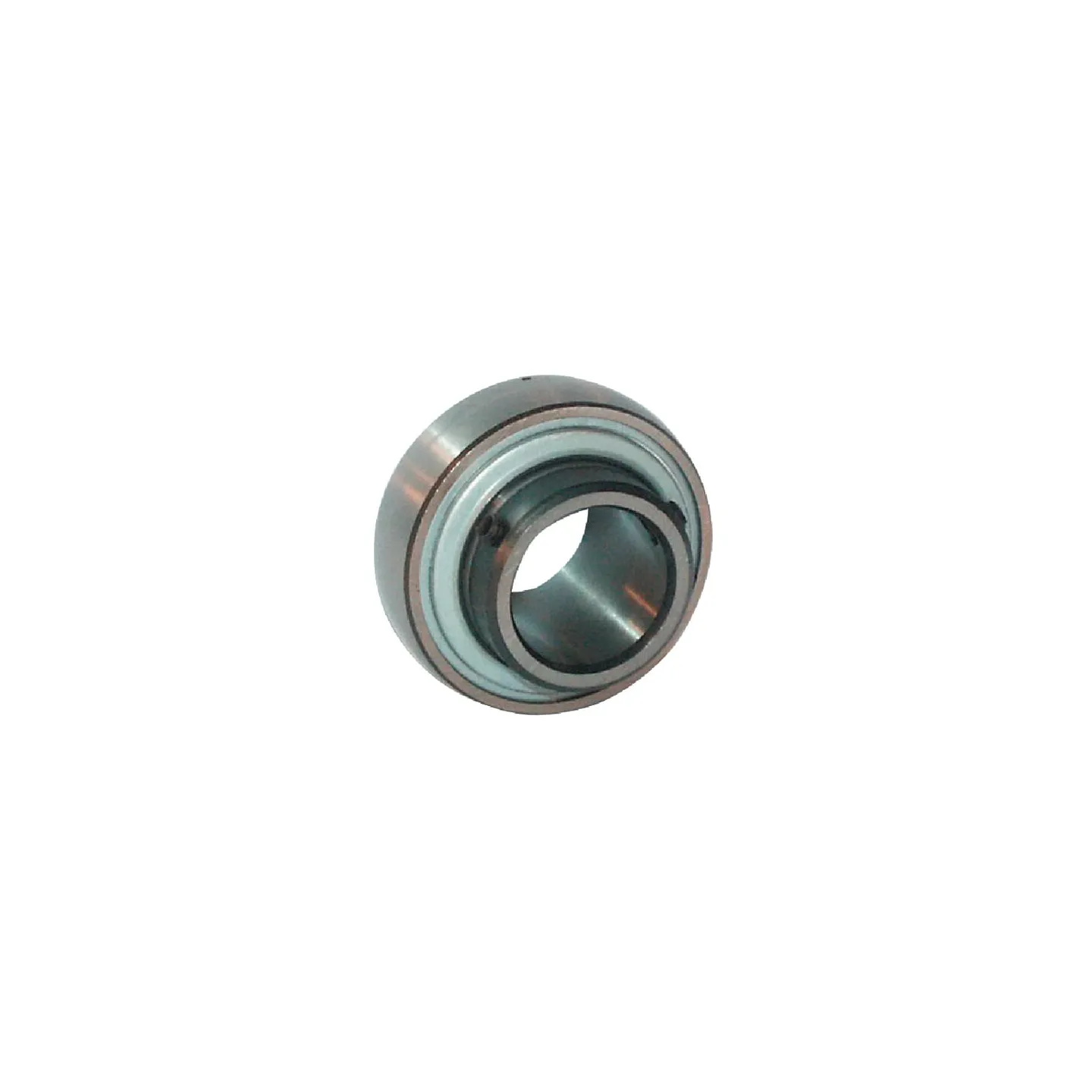

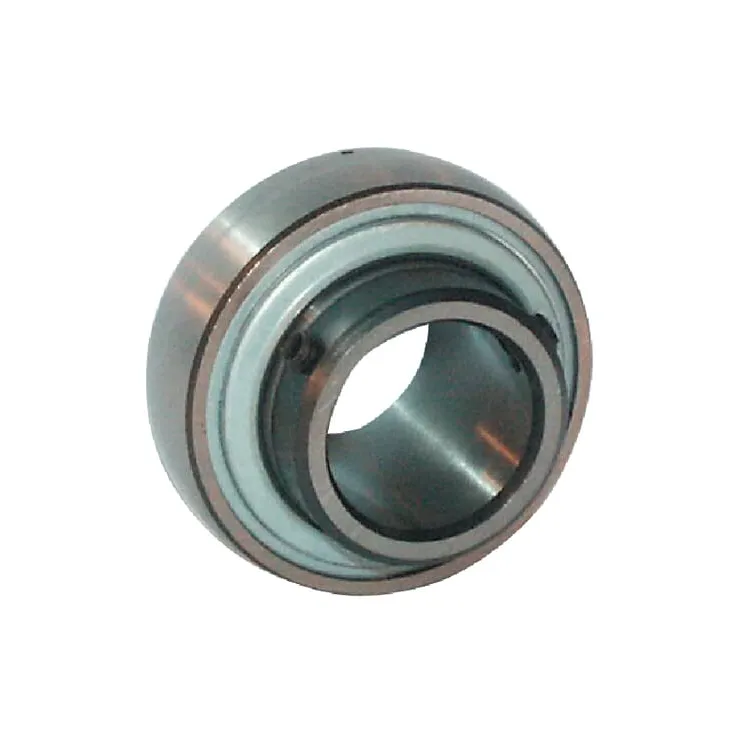

Gultņa ieliktnis 17x40x12mm GYE17KRRB

Name: Gultņa ieliktnis 17x40x12mm GYE17KRRB
Brand: INA/FAG
SKU: GYE17KRRB
Price: 20.49 EUR
Availability: InStock

Apmaksas iespējas

20,49 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 17x40x12mm GYE17KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63935

Apraksts

Part number	GYE17KRRB
EAN	4012802821529
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	17 mm
Outside diameter	40 mm
Outer ring width	12 mm
Inner ring width	27.4 mm
Outside diameter of inner ring	23.9 mm
Locking screw centre to end distance	4 mm
Basic radial load static	4750 N
Basic radial load dynamic	10100 N
Wrench/Spanner size	2.5 mm
Ball centre to grease hole distance	3.4 mm
Sealing width	16.6 mm
Ball centre to end distance	11.5 mm
Original number equivalent	GYE17-KRR-B
Weight	0.09 kg
