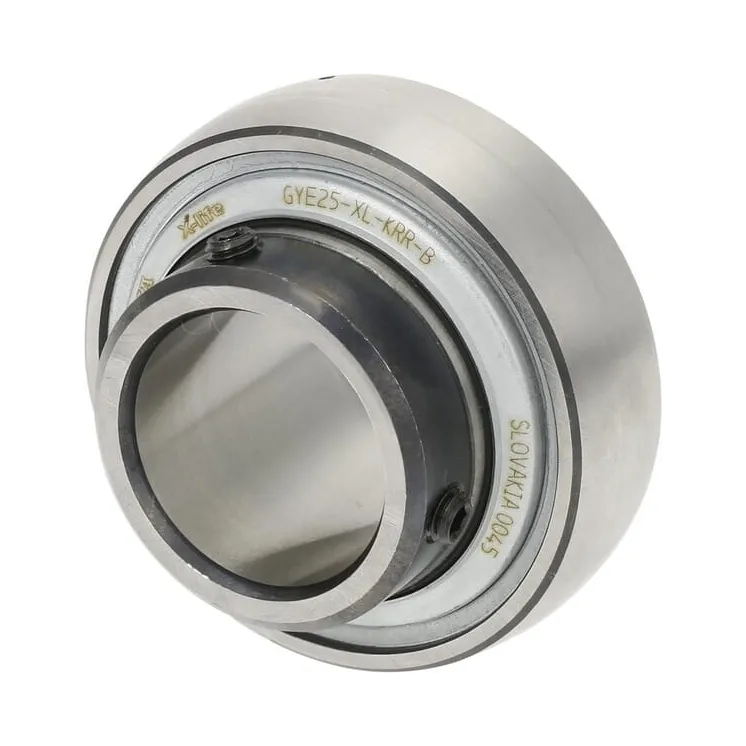

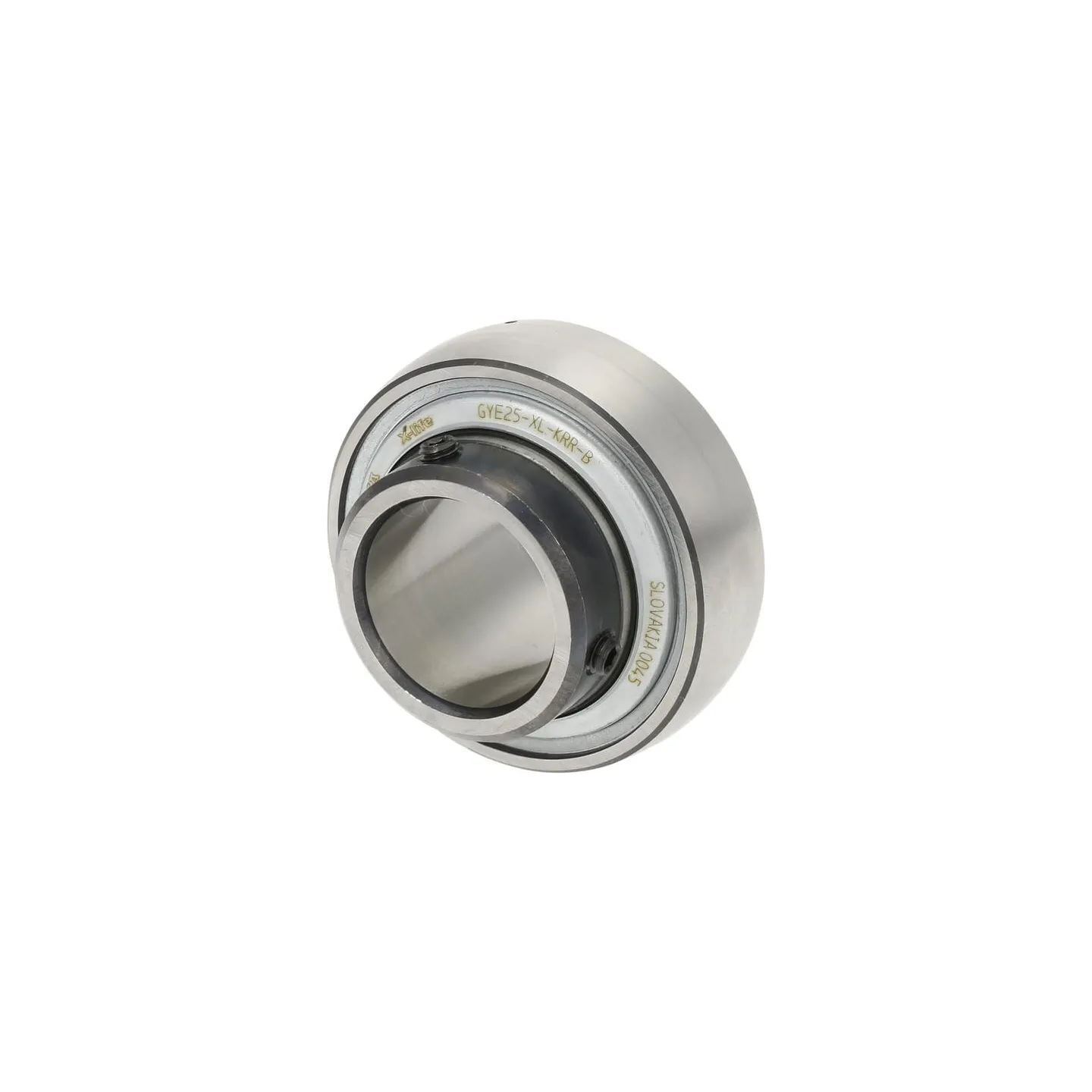

Gultņa ieliktnis 25x52x15mm GYE25KRRB

Name: Gultņa ieliktnis 25x52x15mm GYE25KRRB
Brand: INA/FAG
SKU: GYE25KRRB
Price: 20.35 EUR
Availability: InStock

Apmaksas iespējas

20,35 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 25x52x15mm GYE25KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63938

Apraksts

Part number	GYE25KRRB
EAN	4012802783162
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	25 mm
Outside diameter	52 mm
Outer ring width	15 mm
Inner ring width	34.1 mm
Outside diameter of inner ring	33.8 mm
Locking screw centre to end distance	5 mm
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Wrench/Spanner size	2.5 mm
Ball centre to grease hole distance	3.9 mm
Sealing width	16.7 mm
Ball centre to end distance	14.3 mm
Original number equivalent	GYE25-KRR-B
Weight	0.19 kg
