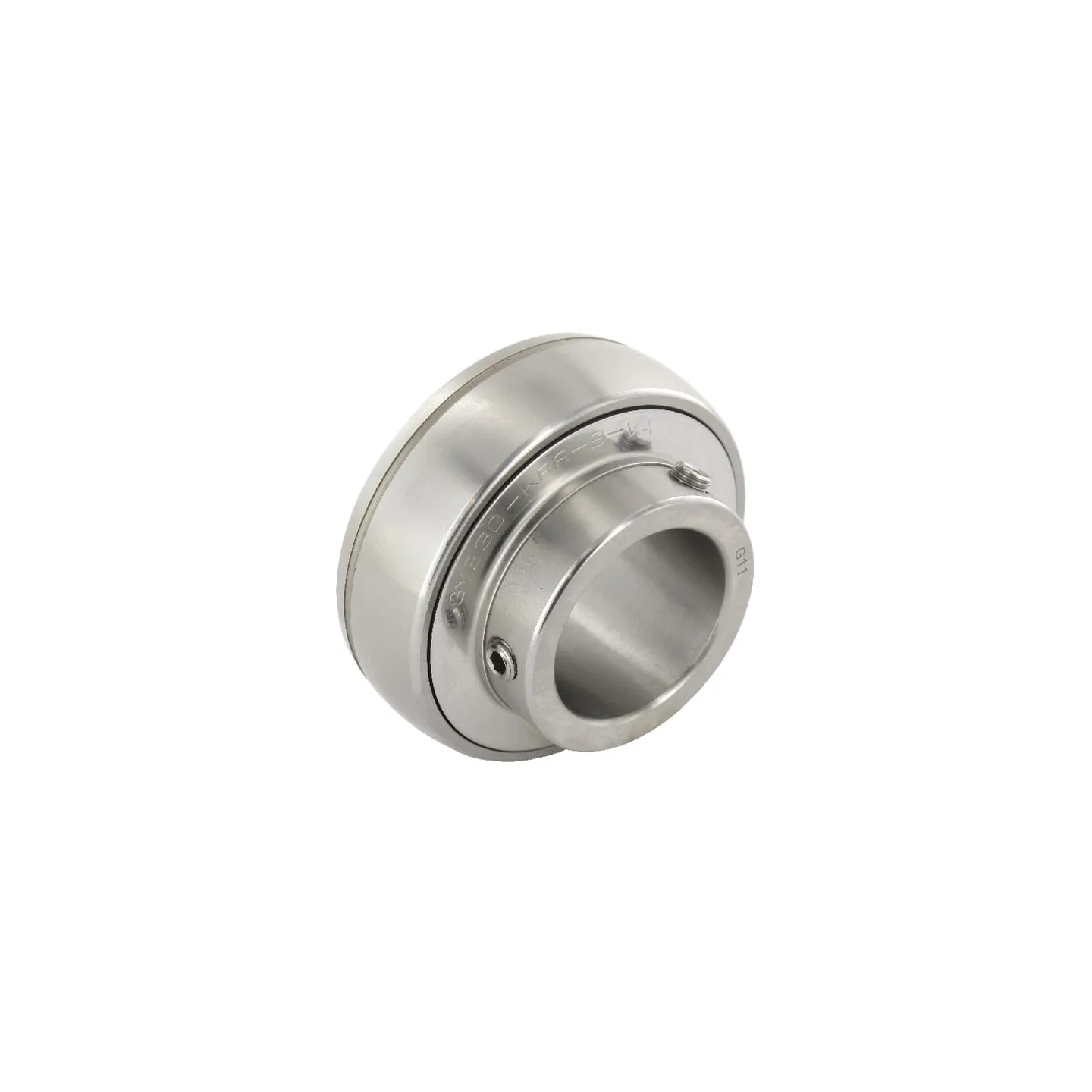

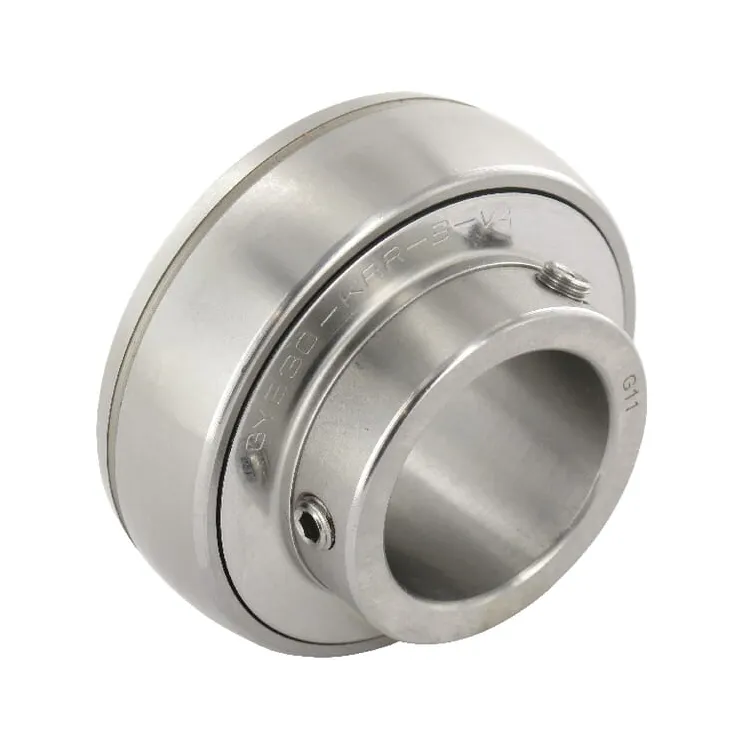

Gultņa ieliktnis 50x90x23mm GYE50KRRBFA107VA

Name: Gultņa ieliktnis 50x90x23mm GYE50KRRBFA107VA
Brand: INA/FAG
SKU: GYE50KRRBFA107VA
Price: 234.34 EUR
Availability: InStock

Apmaksas iespējas

234,34 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 50x90x23mm GYE50KRRBFA107VA INA/FAG

IR NOLIKTAVĀ

ID: 63942

Apraksts

Part number	GYE50KRRBFA107VA
EAN	4054362378051
Unit	Each
Long description	Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA
Details	Made entirely of stainless steel
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner ring extended on both sides with adjusting screws Convex outer ring with lubricating holes R seal Stainless steel cage
Technical info	Addition to FA107: bearing with lubrication openings on the mounting side
Benefits	Rust-resistant
Inside diameter	50 mm
Outside diameter	90 mm
Consists of	Clamp bearing 2 adjusting screws
Outer ring width	23 mm
Inner ring width	51.6 mm
Outside diameter of inner ring	62.92 mm
Locking screw centre to end distance	9 mm
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Material	Stainless steel
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	6.5 mm
Sealing width	23.6 mm
Ball centre to end distance	19 mm
Original number equivalent	GYE50-KRR-B-FA107-VA-HLA
Weight	0.75 kg
