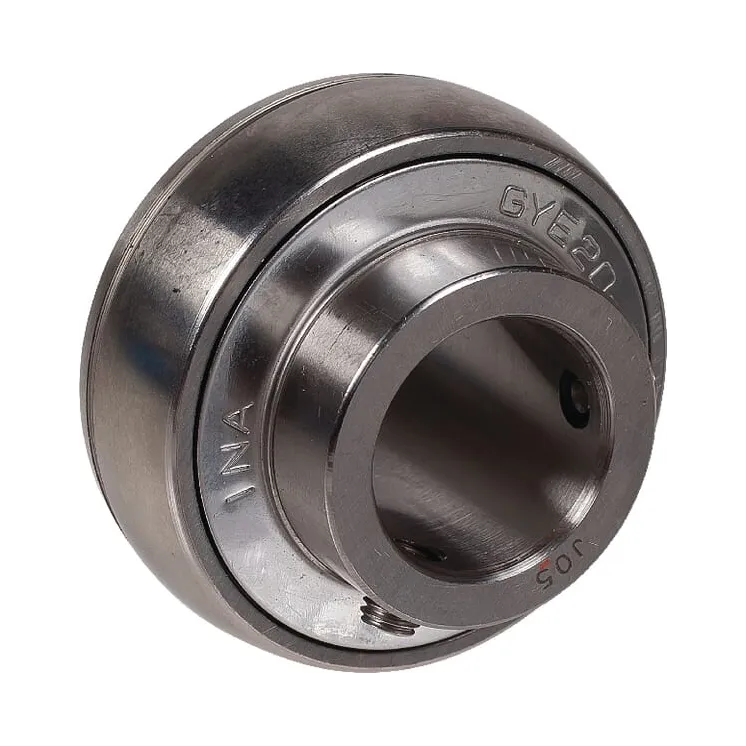

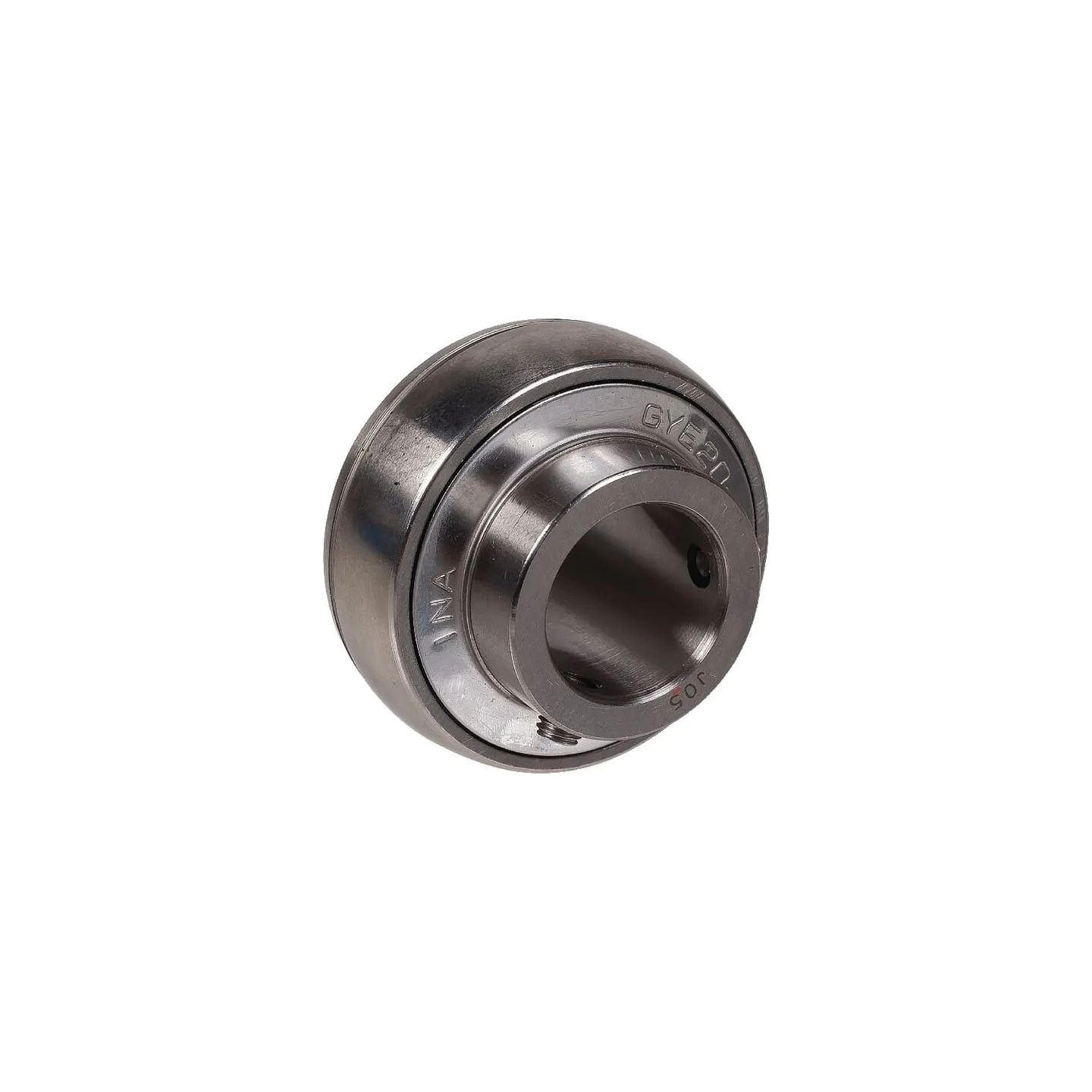

Gultņa ieliktnis 20x47x16mm GYE20KRRBVAHLA

Name: Gultņa ieliktnis 20x47x16mm GYE20KRRBVAHLA
Brand: INA/FAG
SKU: GYE20KRRBVAHLA
Price: 88.94 EUR
Availability: InStock

Apmaksas iespējas

88,94 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 20x47x16mm GYE20KRRBVAHLA INA/FAG

IR NOLIKTAVĀ

ID: 63943

Apraksts

Part number	GYE20KRRBVAHLA
EAN	4012802631791
Unit	Each
Long description	Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA
Details	Made entirely of stainless steel
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner ring extended on both sides with adjusting screws Convex outer ring with lubricating holes R seal Stainless steel cage
Technical info	Addition to FA107: bearing with lubrication openings on the mounting side
Benefits	Rust-resistant
Inside diameter	20 mm
Outside diameter	47 mm
Consists of	Clamp bearing 2 adjusting screws
Outer ring width	16 mm
Inner ring width	31 mm
Outside diameter of inner ring	29.05 mm
Locking screw centre to end distance	5 mm
Basic radial load static	6300 N
Basic radial load dynamic	12300 N
Material	Stainless steel
Wrench/Spanner size	2.5 mm
Ball centre to grease hole distance	4 mm
Sealing width	16.6 mm
Ball centre to end distance	12.7 mm
Original number equivalent	GYE20-KRR-B-VA-HLA
Weight	0.15 kg
