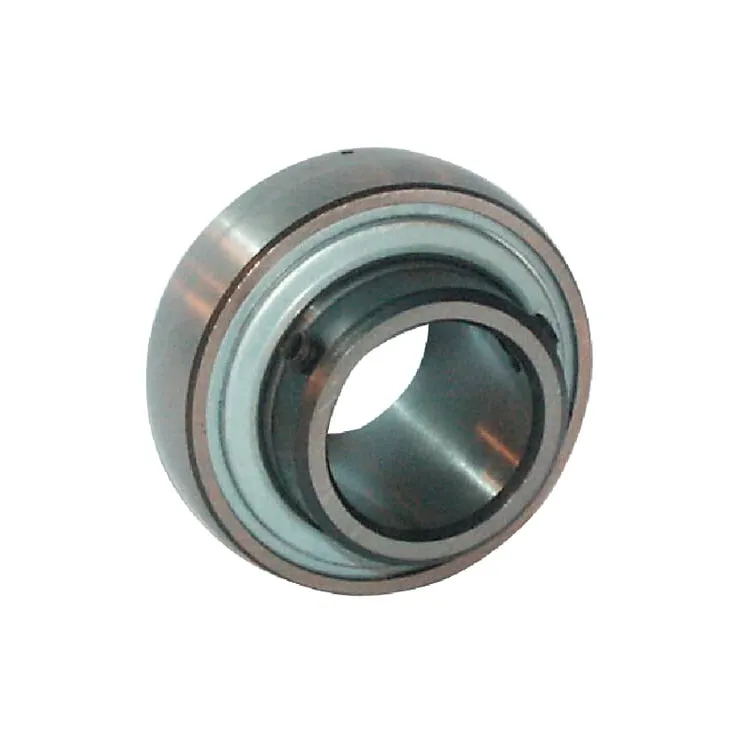

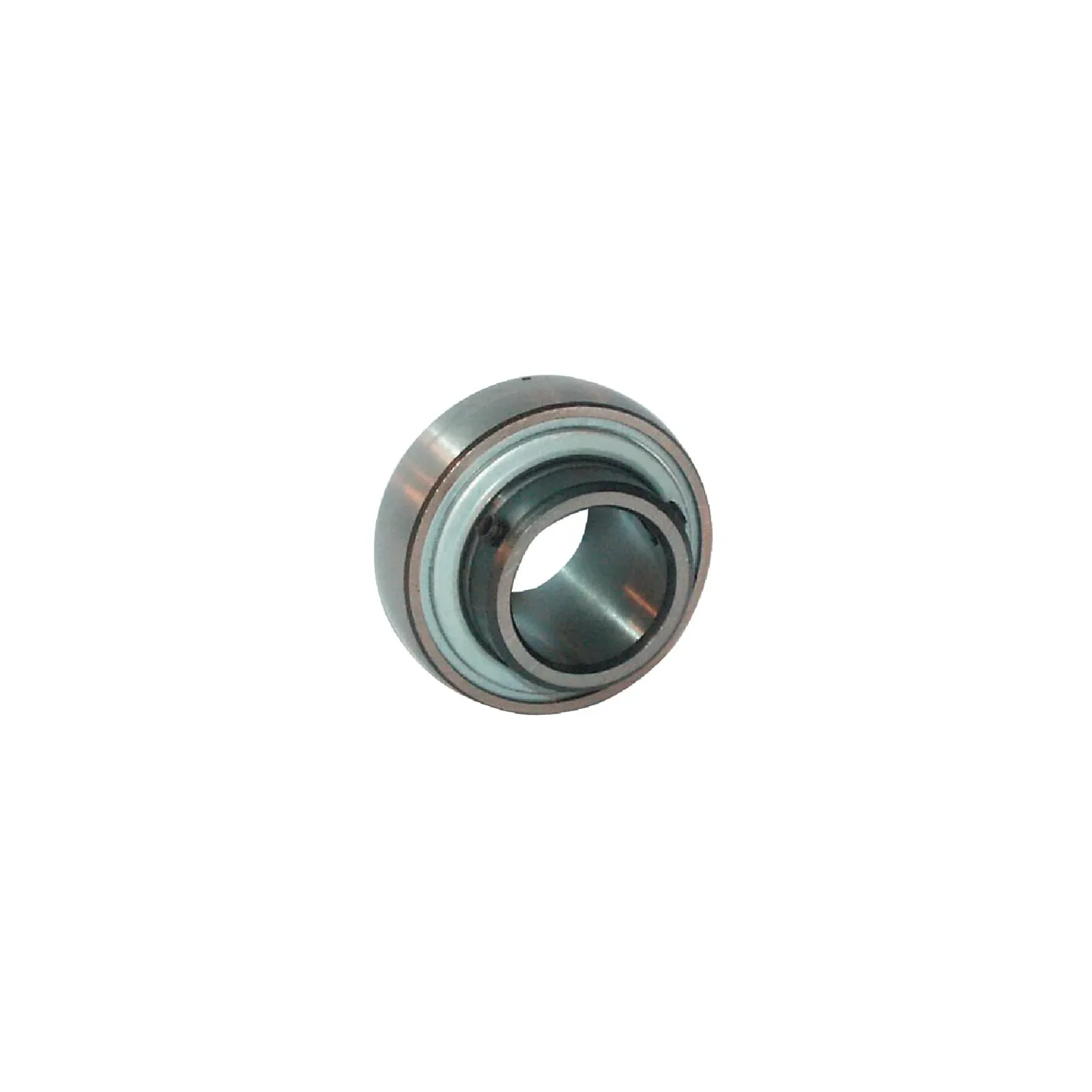

Gultņa ieliktnis 55x100x25mm GYE55KRRB

Name: Gultņa ieliktnis 55x100x25mm GYE55KRRB
Brand: INA/FAG
SKU: GYE55KRRB
Price: 59.7 EUR
Availability: InStock

Apmaksas iespējas

59,70 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 55x100x25mm GYE55KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63945

Apraksts

Part number	GYE55KRRB
EAN	4012802805024
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	55 mm
Outside diameter	100 mm
Outer ring width	25 mm
Inner ring width	55.6 mm
Outside diameter of inner ring	69.8 mm
Locking screw centre to end distance	9 mm
Basic radial load static	29000 N
Basic radial load dynamic	46000 N
Wrench/Spanner size	4.0 mm
Ball centre to grease hole distance	7 mm
Sealing width	29 mm
Ball centre to end distance	22.2 mm
Original number equivalent	GYE55-KRR-B
Weight	1.03 kg
