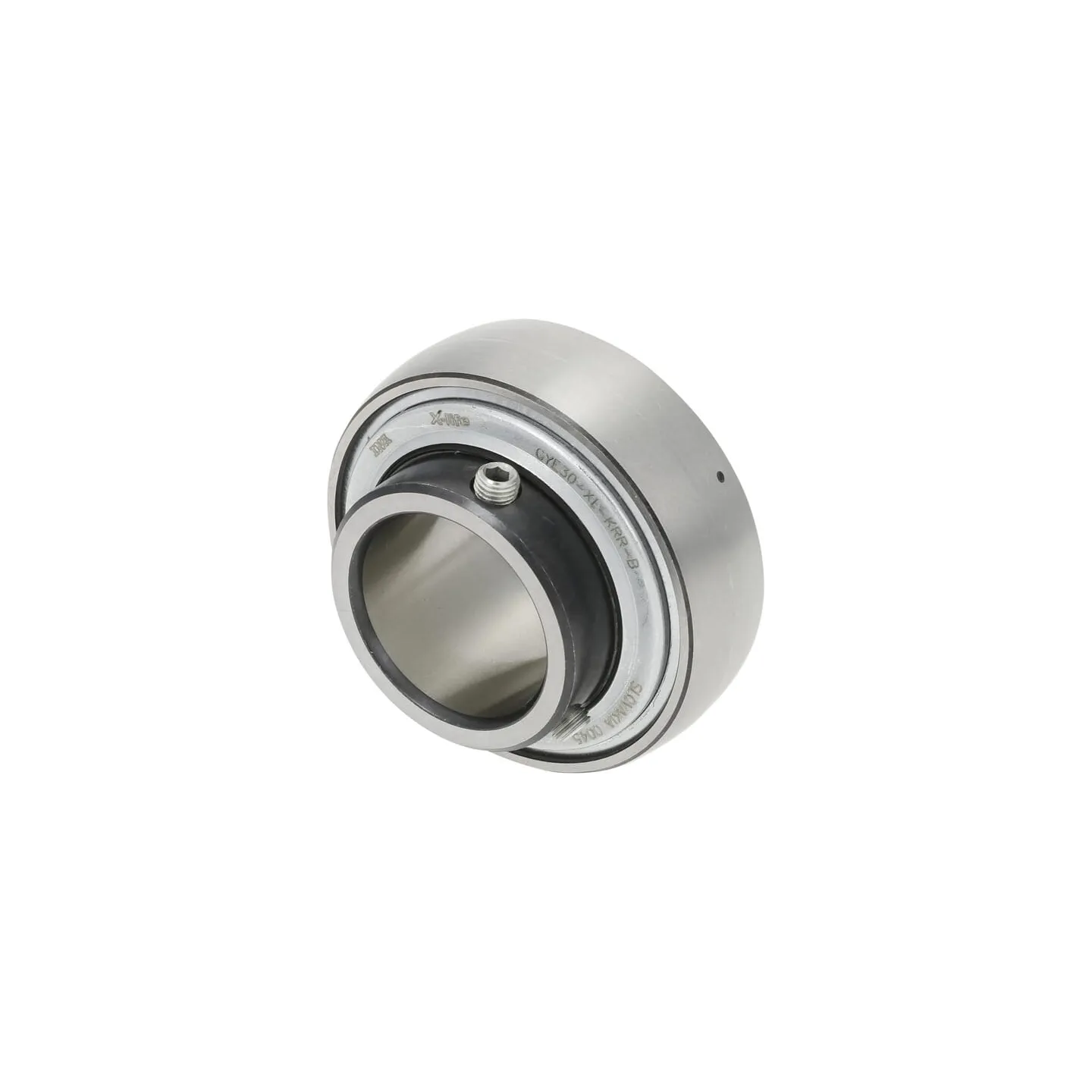

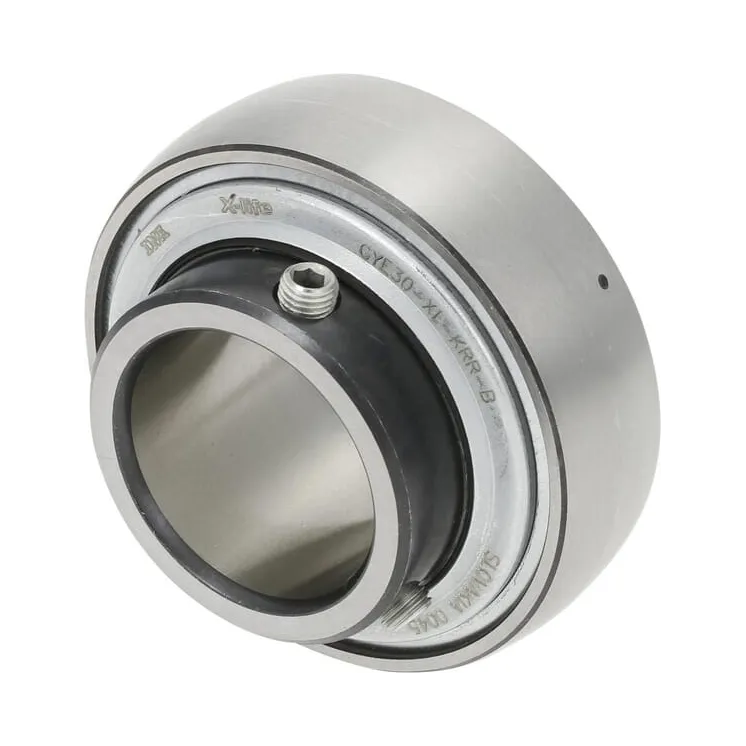

Gultņa ieliktnis 30x62x18mm GYE30KRRB

Name: Gultņa ieliktnis 30x62x18mm GYE30KRRB
Brand: INA/FAG
SKU: GYE30KRRB
Price: 25.45 EUR
Availability: InStock

Apmaksas iespējas

25,45 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x18mm GYE30KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63950

Apraksts

Part number	GYE30KRRB
EAN	4012802797084
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	30 mm
Outside diameter	62 mm
Outer ring width	18 mm
Inner ring width	38.1 mm
Outside diameter of inner ring	40.2 mm
Locking screw centre to end distance	5.8 mm
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Wrench/Spanner size	3.0 mm
Ball centre to grease hole distance	4.7 mm
Sealing width	20.7 mm
Ball centre to end distance	15.9 mm
Original number equivalent	GYE30-KRR-B
Weight	0.31 kg
