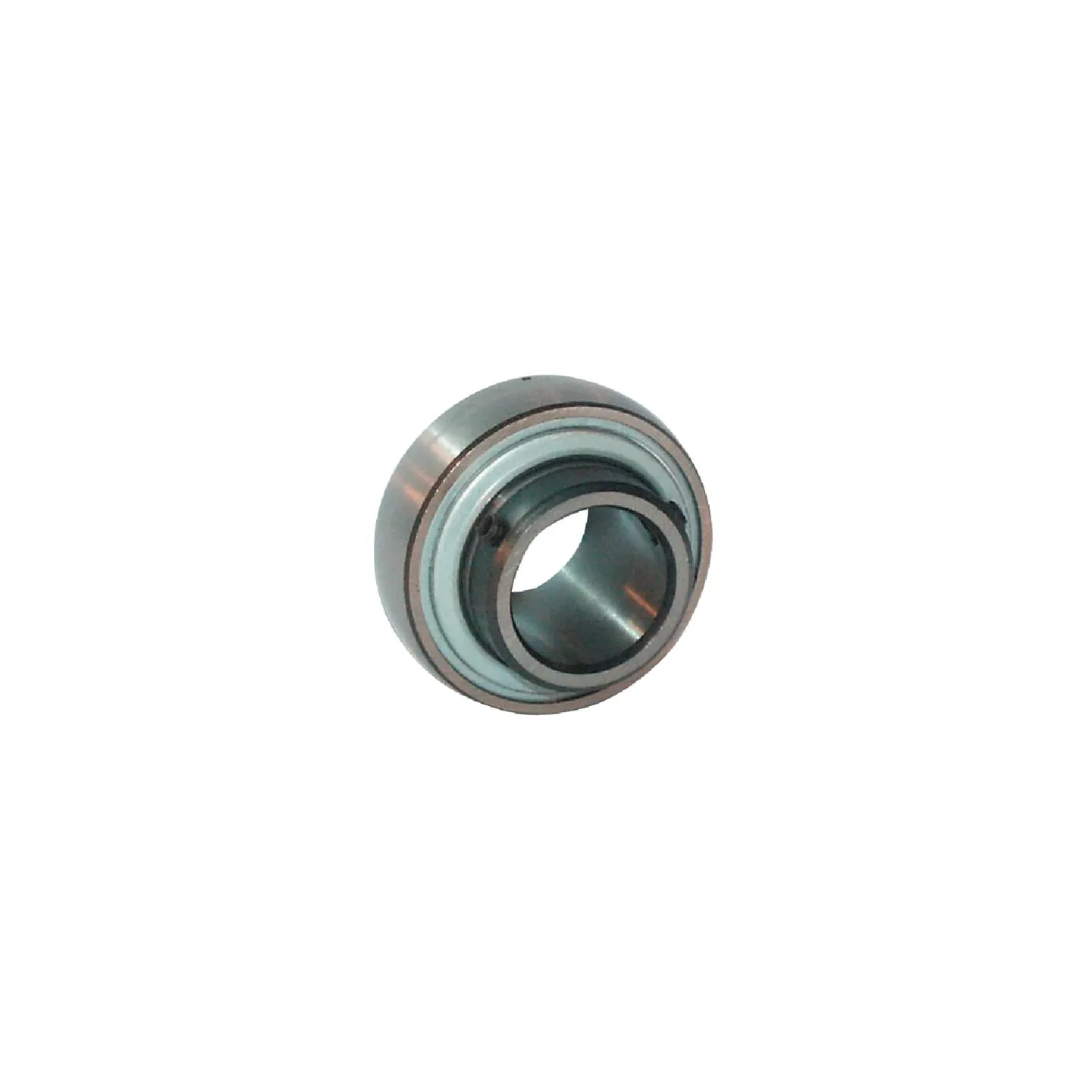

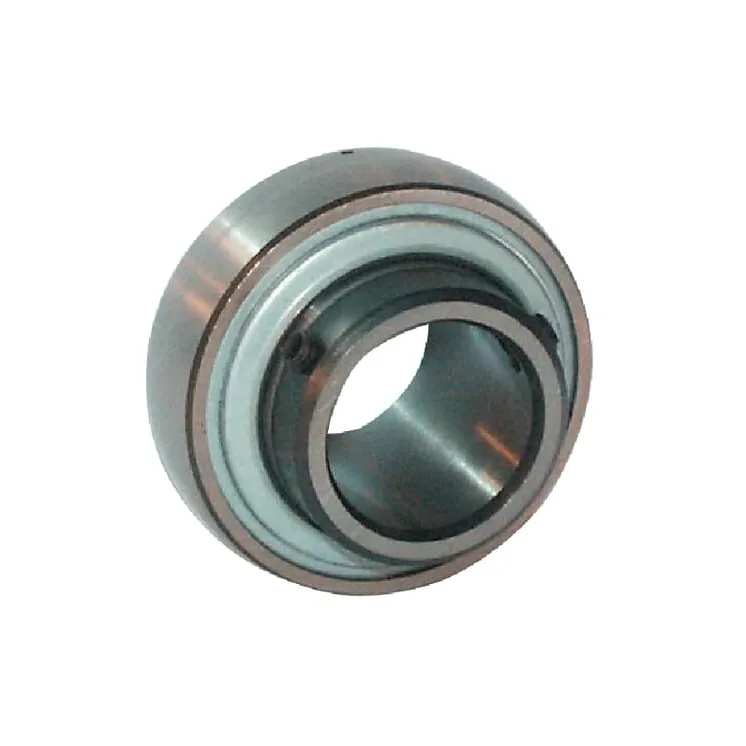

Gultņa ieliktnis 45x90x22mm GYE45210KRRB

Name: Gultņa ieliktnis 45x90x22mm GYE45210KRRB
Brand: INA/FAG
SKU: GYE45210KRRB
Price: 66.28 EUR
Availability: InStock

Apmaksas iespējas

66,28 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 45x90x22mm GYE45210KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63953

Apraksts

Part number	GYE45210KRRB
EAN	4012802816242
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	45 mm
Outside diameter	90 mm
Outer ring width	22 mm
Inner ring width	51.6 mm
Outside diameter of inner ring	62.9 mm
Locking screw centre to end distance	8.5 mm
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Wrench/Spanner size	4.0 mm
Ball centre to grease hole distance	6.9 mm
Sealing width	26.4 mm
Ball centre to end distance	19 mm
Weight	0.9 kg
