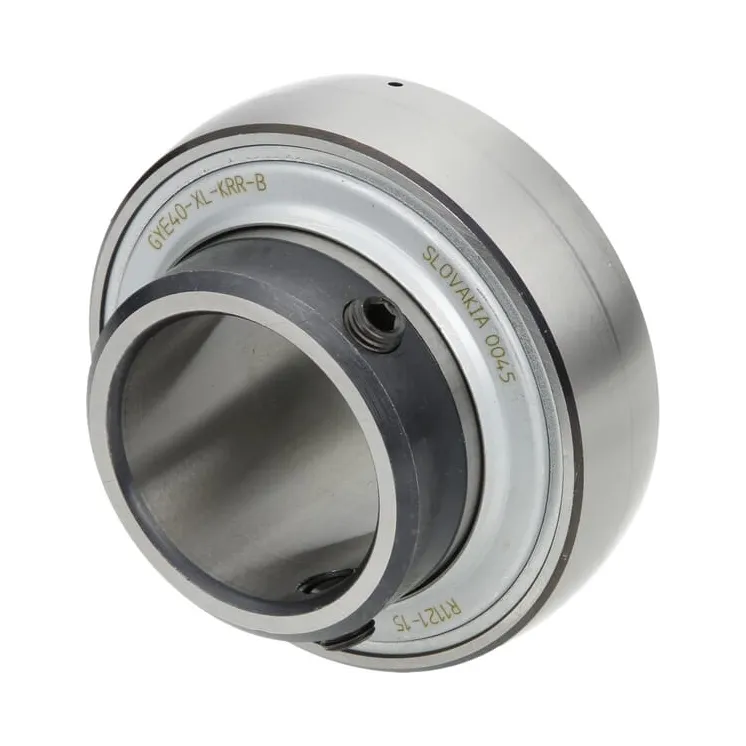

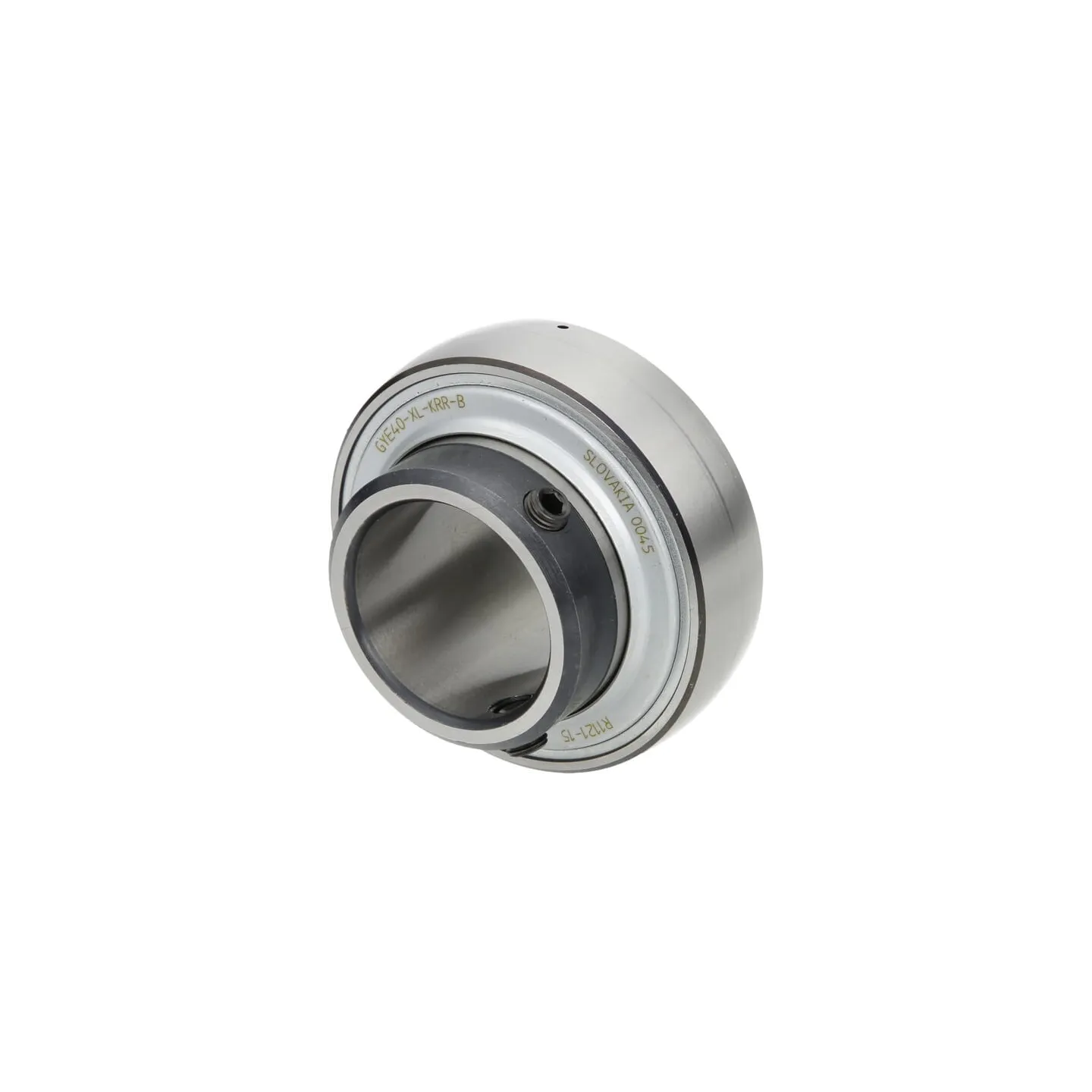

Gultņa ieliktnis 40x80x21mm GYE40KRRB

Name: Gultņa ieliktnis 40x80x21mm GYE40KRRB
Brand: INA/FAG
SKU: GYE40KRRB
Price: 33.23 EUR
Availability: InStock

Apmaksas iespējas

33,23 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 40x80x21mm GYE40KRRB INA/FAG

IR NOLIKTAVĀ

ID: 63954

Apraksts

Part number	GYE40KRRB
EAN	4012802782622
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	40 mm
Outside diameter	80 mm
Outer ring width	21 mm
Inner ring width	49.2 mm
Outside diameter of inner ring	52.3 mm
Locking screw centre to end distance	8 mm
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Wrench/Spanner size	4.0 mm
Ball centre to grease hole distance	6.4 mm
Sealing width	23.5 mm
Ball centre to end distance	19 mm
Original number equivalent	GYE40-KRR-B
Weight	0.61 kg
