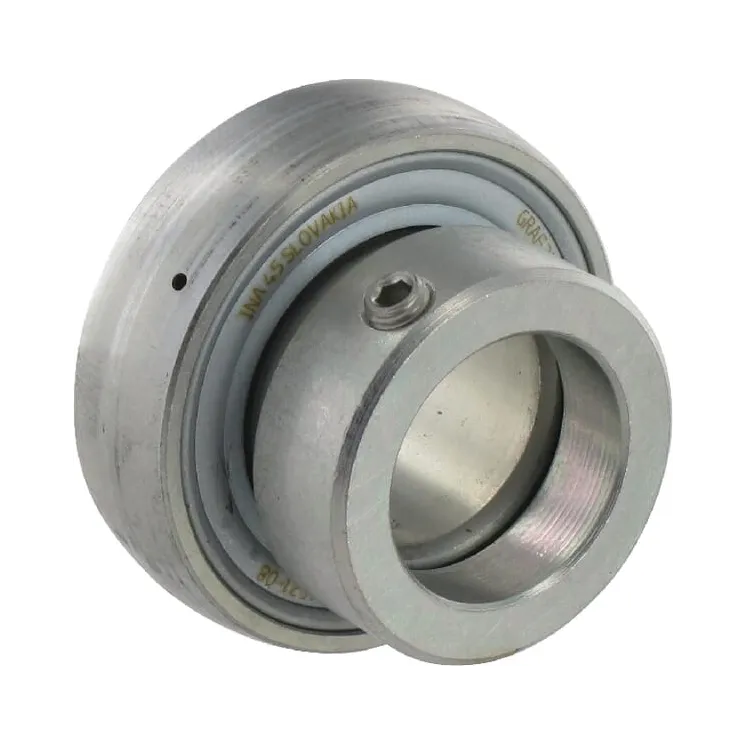

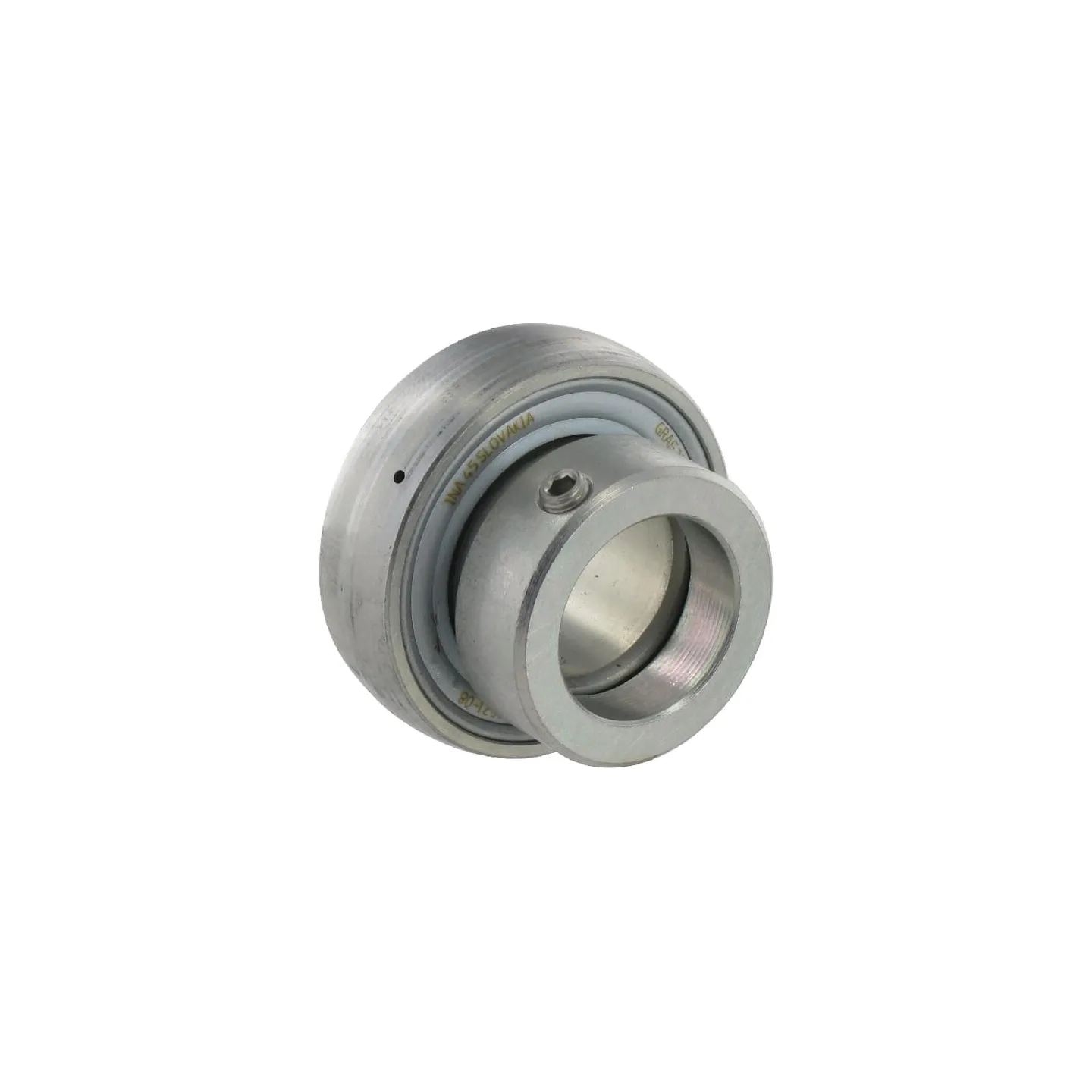

Gultņa ieliktnis 40x80x21mm GRAE40NPPBFA107125 INA/FAG GRAE40NPPBFA1071255

Gultņa ieliktnis 40x80x21mm GRAE40NPPBFA107125 GRAE40NPPBFA1071255

Name: Gultņa ieliktnis 40x80x21mm GRAE40NPPBFA107125 GRAE40NPPBFA1071255
Brand: INA/FAG
SKU: GRAE40NPPBFA107125
Price: 57.1 EUR
Availability: InStock

Apmaksas iespējas

57,10 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 40x80x21mm GRAE40NPPBFA107125 INA/FAG GRAE40NPPBFA1071255

IR NOLIKTAVĀ

ID: 63965

Apraksts

Part number	GRAE40NPPBFA107125
EAN	4012802812312
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GRAE..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	40 mm
DspOutside diameter	80 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	21 mm
CInner ring width	30.2 mm
B1Locking collar and inner ring width	43.8 mm
RLocking collar outside diameter	58 mm
FOutside diameter of inner ring	49.4 mm
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
SWWrench/Spanner size	5.0 mm
GBall centre to grease hole distance	6.4 mm
EBall centre to end distance	11 mm
Original number equivalent	GRAE40-NPP-B-FA107/125.5
Weight	0.63 kg
