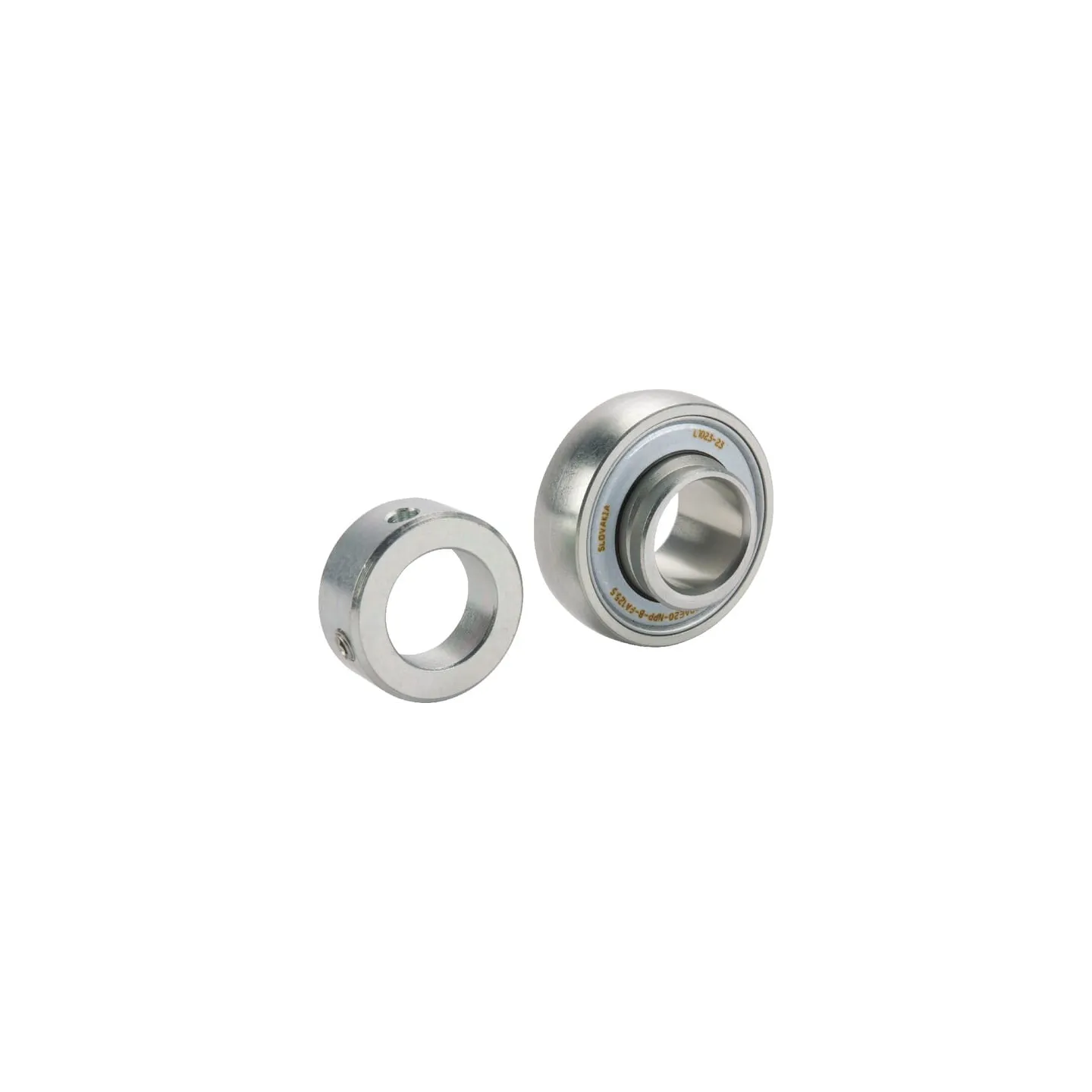

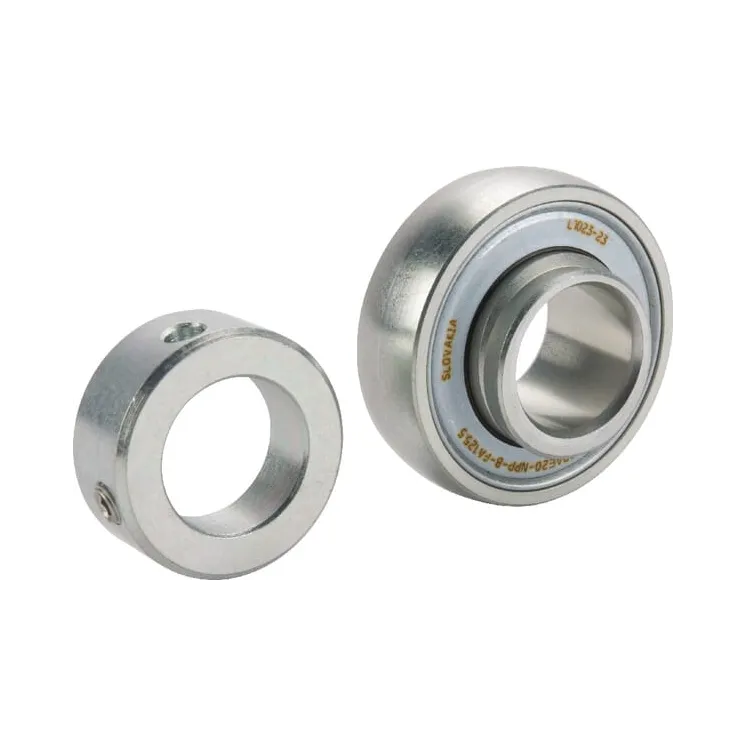

Gultņa ieliktnis 20x47x14mm GRAE20NPPBFA1255

Name: Gultņa ieliktnis 20x47x14mm GRAE20NPPBFA1255
Brand: INA/FAG
SKU: GRAE20NPPBFA1255
Price: 28.85 EUR
Availability: InStock

Apmaksas iespējas

28,85 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 20x47x14mm GRAE20NPPBFA1255 INA/FAG

IR NOLIKTAVĀ

ID: 63967

Apraksts

Part number	GRAE20NPPBFA1255
EAN	4012802813104
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GRAE..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	20 mm
DspOutside diameter	47 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	14 mm
CInner ring width	21.4 mm
B1Locking collar and inner ring width	31 mm
RLocking collar outside diameter	33 mm
FOutside diameter of inner ring	26.9 mm
Basic radial load static	6600 N
Basic radial load dynamic	13600 N
SWWrench/Spanner size	3.0 mm
GBall centre to grease hole distance	4 mm
EBall centre to end distance	7.5 mm
Original number equivalent	GRAE20-NPP-B-FA125.5
Weight	0.16 kg
