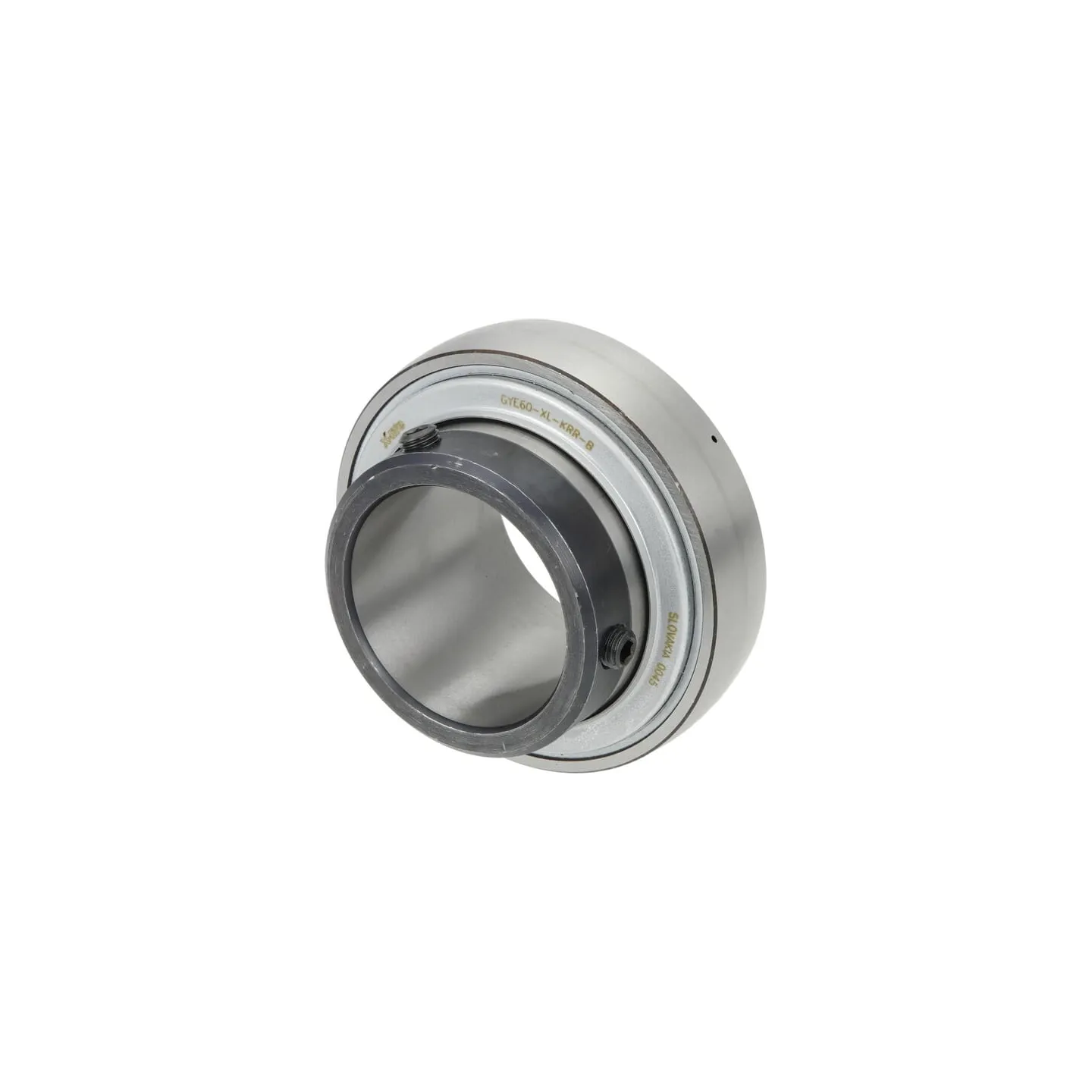

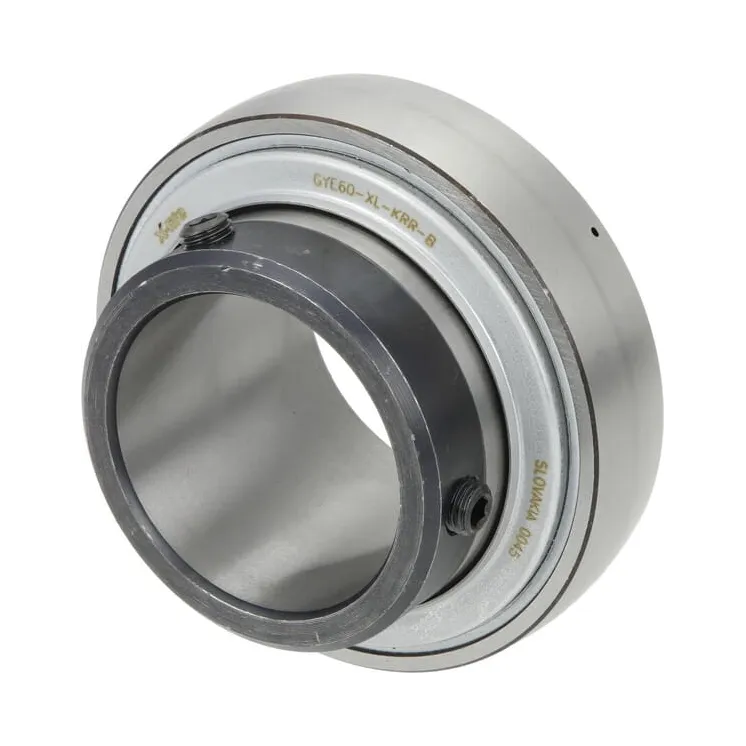

Gultņa ieliktnis 60x110x24mm GYE60KRRB 0002156300

Name: Gultņa ieliktnis 60x110x24mm GYE60KRRB 0002156300
Brand: INA/FAG
SKU: GYE60KRRB
Price: 75.29 EUR
Availability: BackOrder

Apmaksas iespējas

75,29 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 60x110x24mm GYE60KRRB INA/FAG 0002156300

Uz pasūtījumu

ID: 63968

Apraksts

Part number	GYE60KRRB
EAN	4012802805000
Unit	Each
Product details	Both sides: extended inner ring with adjusting screws Convex outer ring with lubricating holes R seal Polyamide housing
Inside diameter	60 mm
Outside diameter	110 mm
Outer ring width	24 mm
Inner ring width	65.1 mm
Outside diameter of inner ring	76.5 mm
Locking screw centre to end distance	10 mm
Basic radial load static	36000 N
Basic radial load dynamic	56000 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	7.2 mm
Sealing width	29 mm
Ball centre to end distance	25.4 mm
Original number equivalent	GYE60-KRR-B
Weight	1.46 kg
