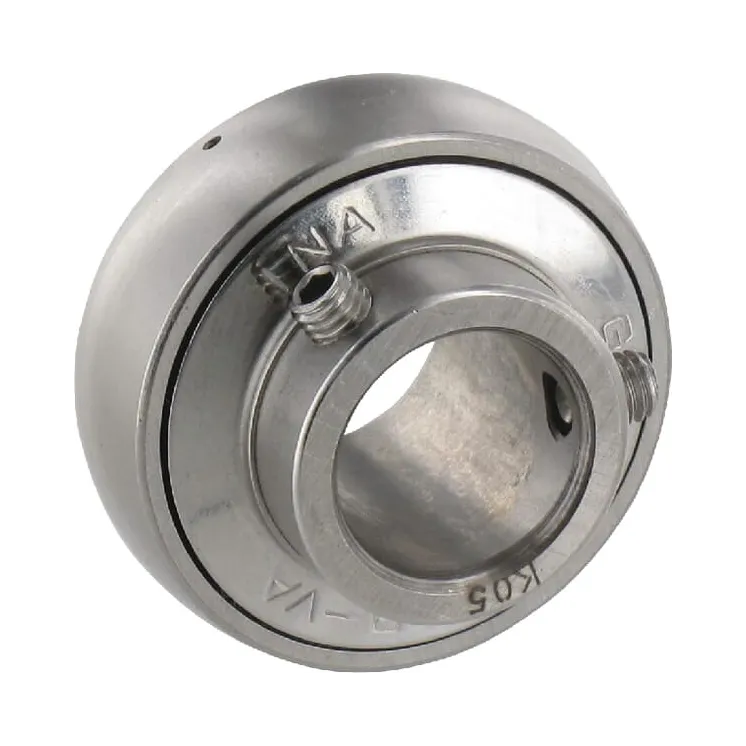

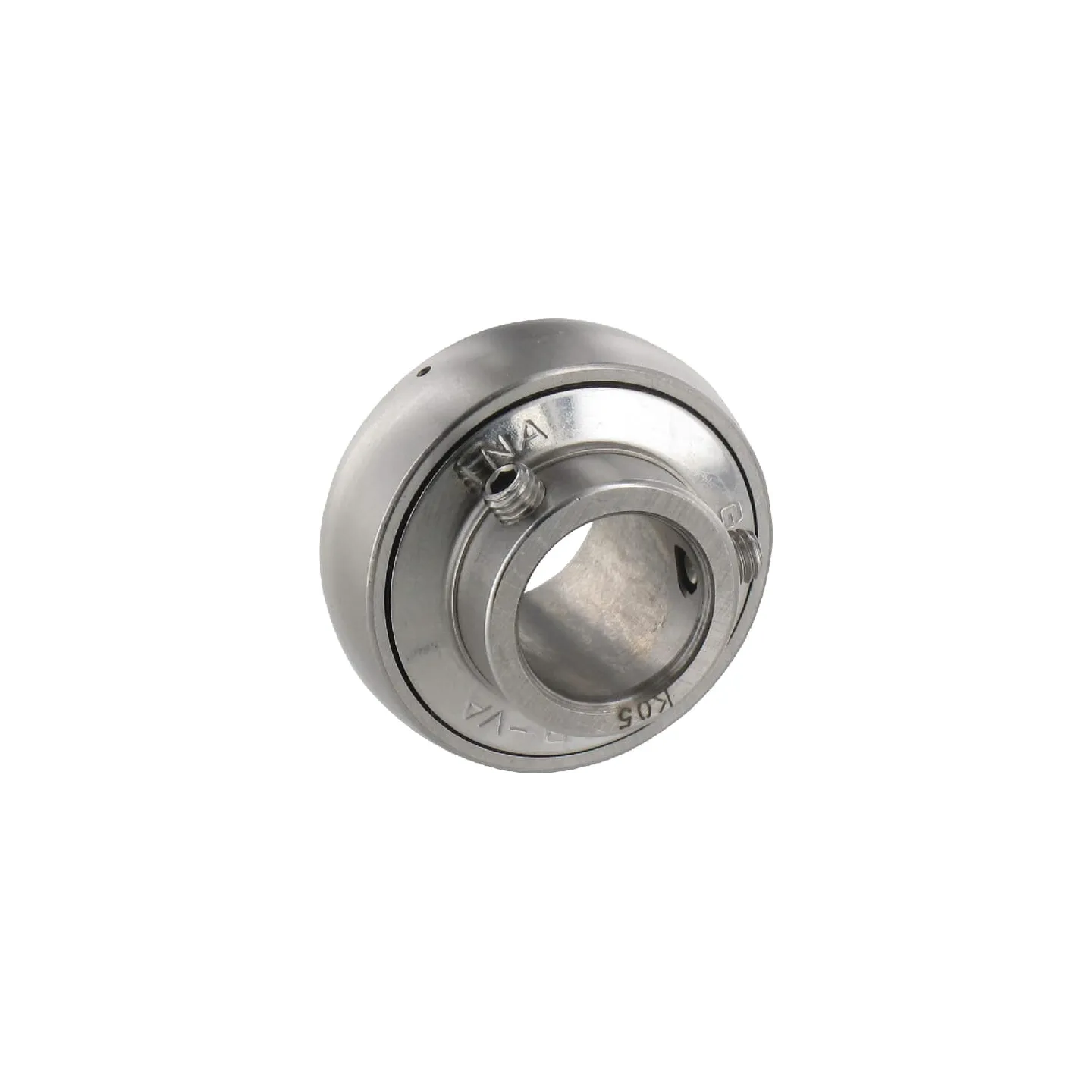

Gultņa ieliktnis 15x40x12mm GYE15KRRBVAHLA

Name: Gultņa ieliktnis 15x40x12mm GYE15KRRBVAHLA
Brand: INA/FAG
SKU: GYE15KRRBVAHLA
Price: 112.94 EUR
Availability: BackOrder

Apmaksas iespējas

112,94 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 15x40x12mm GYE15KRRBVAHLA INA/FAG

Uz pasūtījumu

ID: 63979

Apraksts

Part number	GYE15KRRBVAHLA
EAN	4047643202695
Unit	Each
Long description	Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA
Details	Made entirely of stainless steel
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Inner ring extended on both sides with adjusting screws Convex outer ring with lubricating holes R seal Stainless steel cage
Technical info	Addition to FA107: bearing with lubrication openings on the mounting side
Benefits	Rust-resistant
Inside diameter	15 mm
Outside diameter	40 mm
Consists of	Clamp bearing 2 adjusting screws
Outer ring width	12 mm
Inner ring width	25 mm
Outside diameter of inner ring	23.9 mm
Locking screw centre to end distance	4 mm
Basic radial load static	4550 N
Basic radial load dynamic	9200 N
Material	Stainless steel
Wrench/Spanner size	2.5 mm
Ball centre to grease hole distance	3.4 mm
Sealing width	12.6 mm
Ball centre to end distance	9.6 mm
Original number equivalent	GYE15-KRR-B-VA-HLA
Weight	0.1 kg
