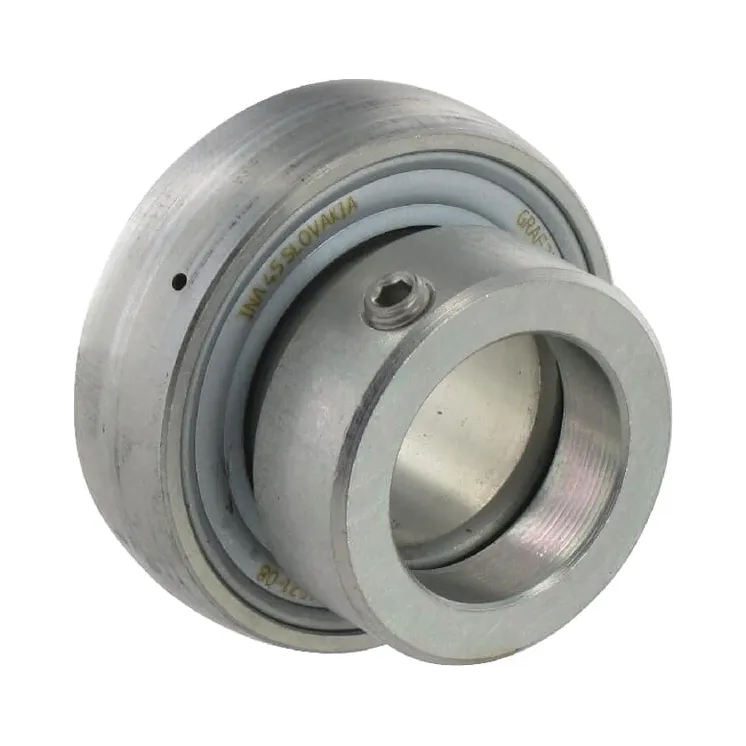

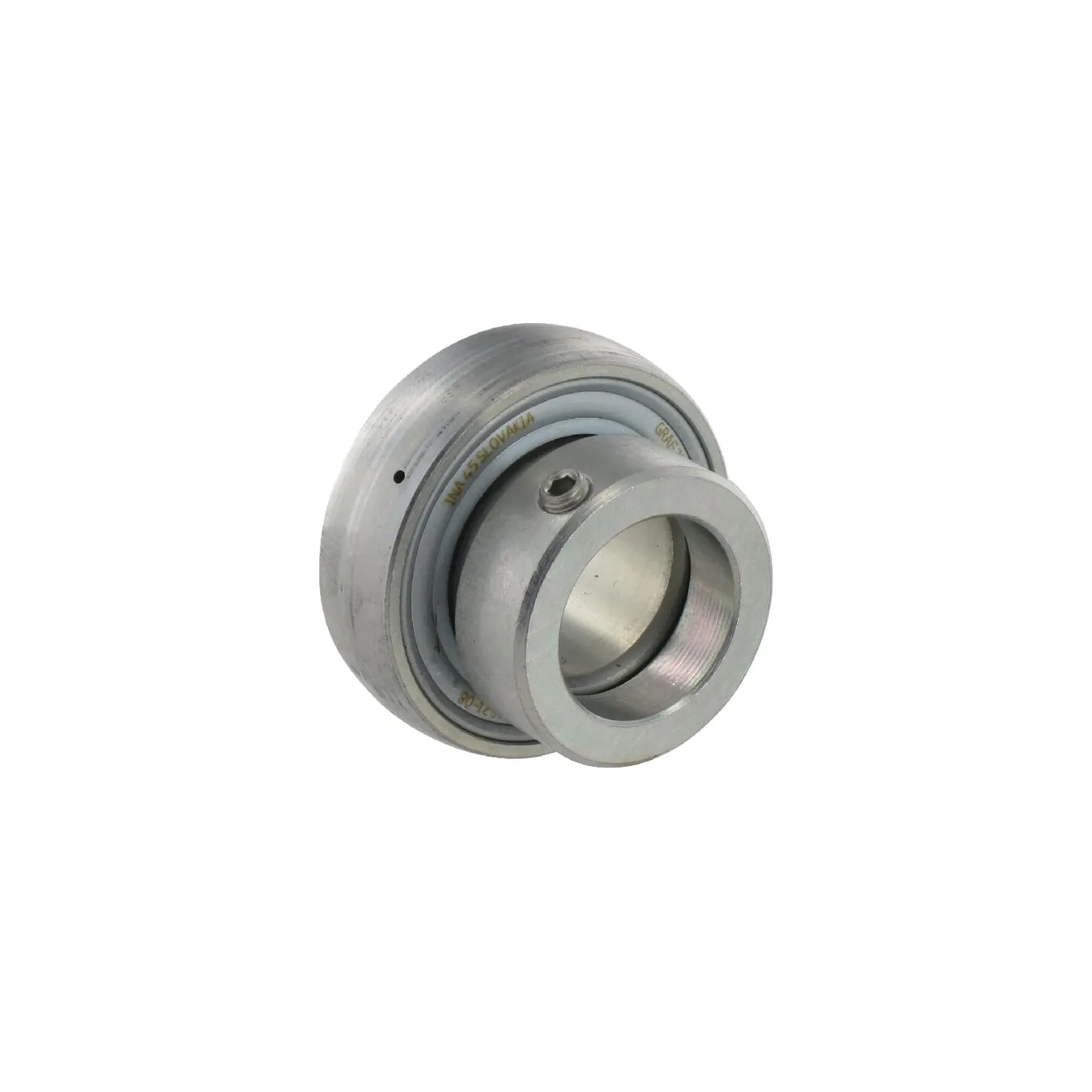

Gultņa ieliktnis 45x85x22mm GRAE45NPPBFA1255

Name: Gultņa ieliktnis 45x85x22mm GRAE45NPPBFA1255
Brand: INA/FAG
SKU: GRAE45NPPBFA1255
Price: 70.71 EUR
Availability: InStock

Apmaksas iespējas

70,71 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 45x85x22mm GRAE45NPPBFA1255 INA/FAG

IR NOLIKTAVĀ

ID: 63980

Apraksts

Part number	GRAE45NPPBFA1255
EAN	4012802812954
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GRAE..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	45 mm
DspOutside diameter	85 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	22 mm
CInner ring width	30.2 mm
B1Locking collar and inner ring width	43.8 mm
RLocking collar outside diameter	63 mm
FOutside diameter of inner ring	54.3 mm
Basic radial load static	20400 N
Basic radial load dynamic	32500 N
SWWrench/Spanner size	5.0 mm
GBall centre to grease hole distance	6.4 mm
EBall centre to end distance	11 mm
Original number equivalent	GRAE45-NPP-B-FA125.5
Weight	0.69 kg
