Gultņa ieliktnis 1-1/4 / 31,75x72x19mm GRA104NPPBAS2V INA/FAG GRA104NPPB

Gultņa ieliktnis 1-1/4 / 31,75x72x19mm GRA104NPPBAS2V GRA104NPPB

Name: Gultņa ieliktnis 1-1/4 / 31,75x72x19mm GRA104NPPBAS2V GRA104NPPB
Brand: INA/FAG
SKU: GRA104NPPBAS2V
Price: 39.39 EUR
Availability: InStock

Apmaksas iespējas

39,39 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 1-1/4 / 31,75x72x19mm GRA104NPPBAS2V INA/FAG GRA104NPPB

IR NOLIKTAVĀ

ID: 63982

Apraksts

Part number	GRA104NPPBAS2V
EAN	8719607030304
Unit	Each

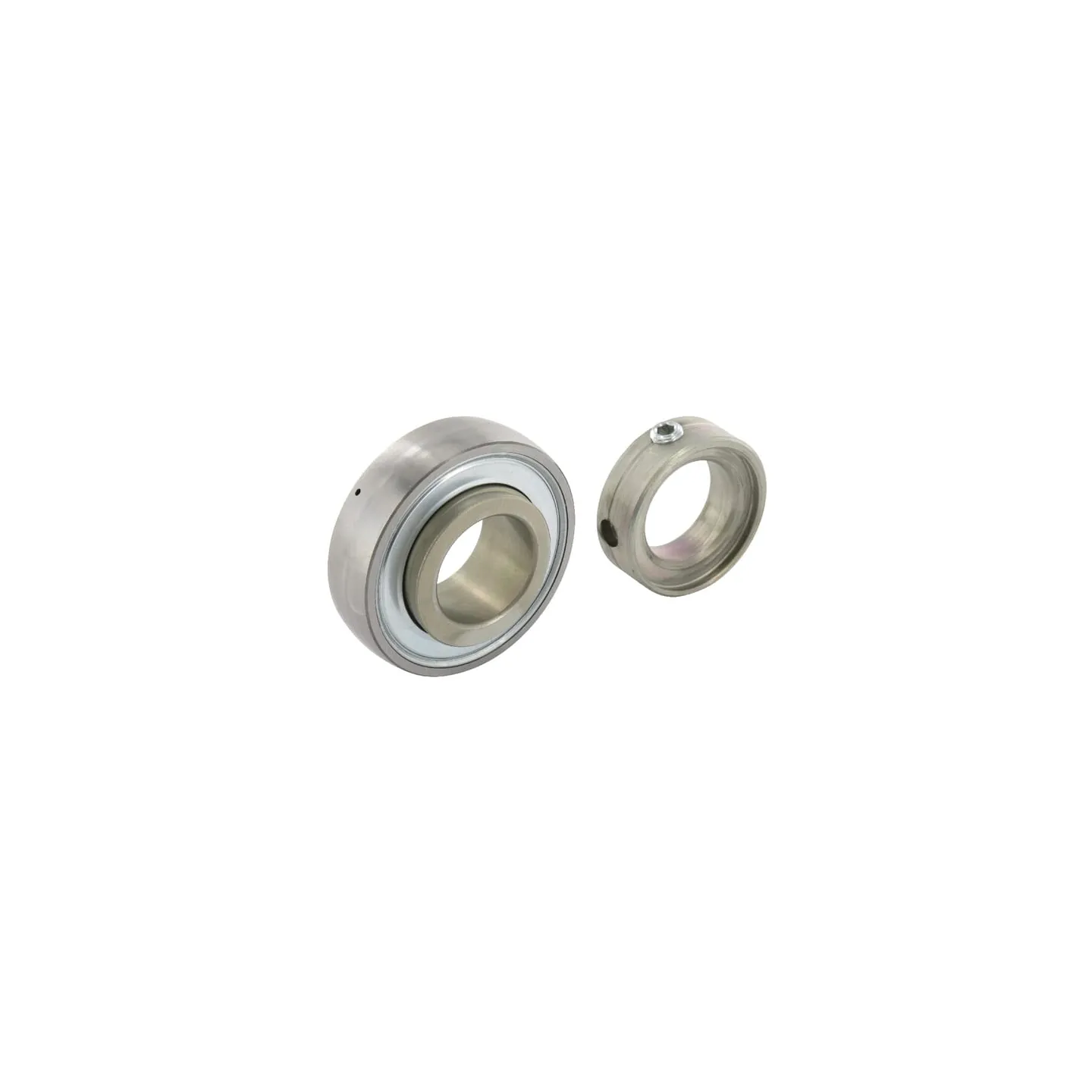

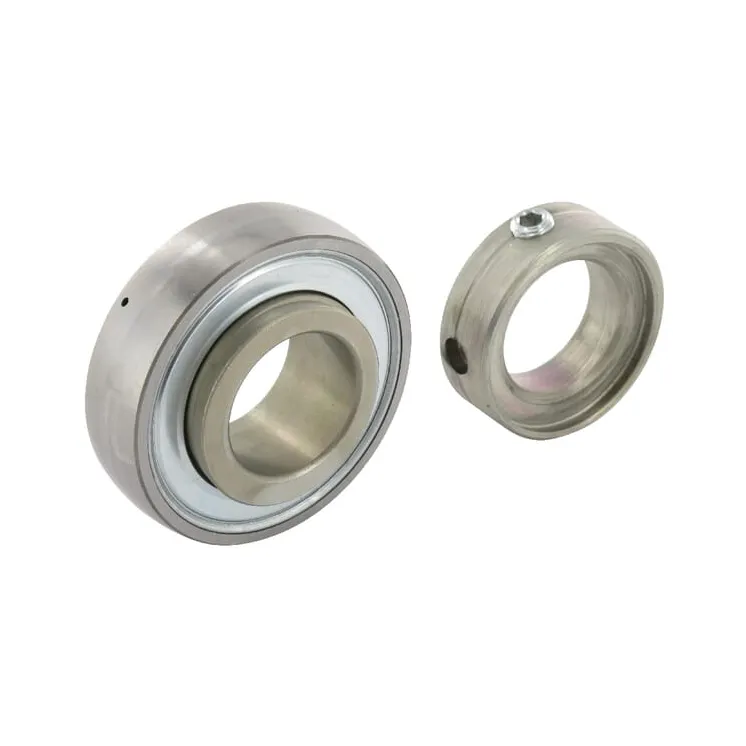

Long description	Ball bearing inserts INA/FAG, series GRA..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Inch bore Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	31.75 mm
Inside diameter	1-1/4 Inch
DspOutside diameter	72 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	19 mm
CInner ring width	25.4 mm
B1Locking collar and inner ring width	38.9 mm
RLocking collar outside diameter	44 mm
FOutside diameter of inner ring	44.6 mm
GBall centre to grease hole distance	5.7 mm
EBall centre to end distance	9.5 mm
Original number equivalent	GRA104-NPP-B-AS2/V
