Gultņa ieliktnis 1 / 25,4x52x15mm GRA100NPPB INA/FAG SA20516TR

Gultņa ieliktnis 1 / 25,4x52x15mm GRA100NPPB SA20516TR

Name: Gultņa ieliktnis 1 / 25,4x52x15mm GRA100NPPB SA20516TR
Brand: INA/FAG
SKU: GRA100NPPB
Price: 25.06 EUR
Availability: BackOrder

Apmaksas iespējas

25,06 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 1 / 25,4x52x15mm GRA100NPPB INA/FAG SA20516TR

Uz pasūtījumu

ID: 63984

Apraksts

Part number	GRA100NPPB
EAN	4012802121117
Unit	Each

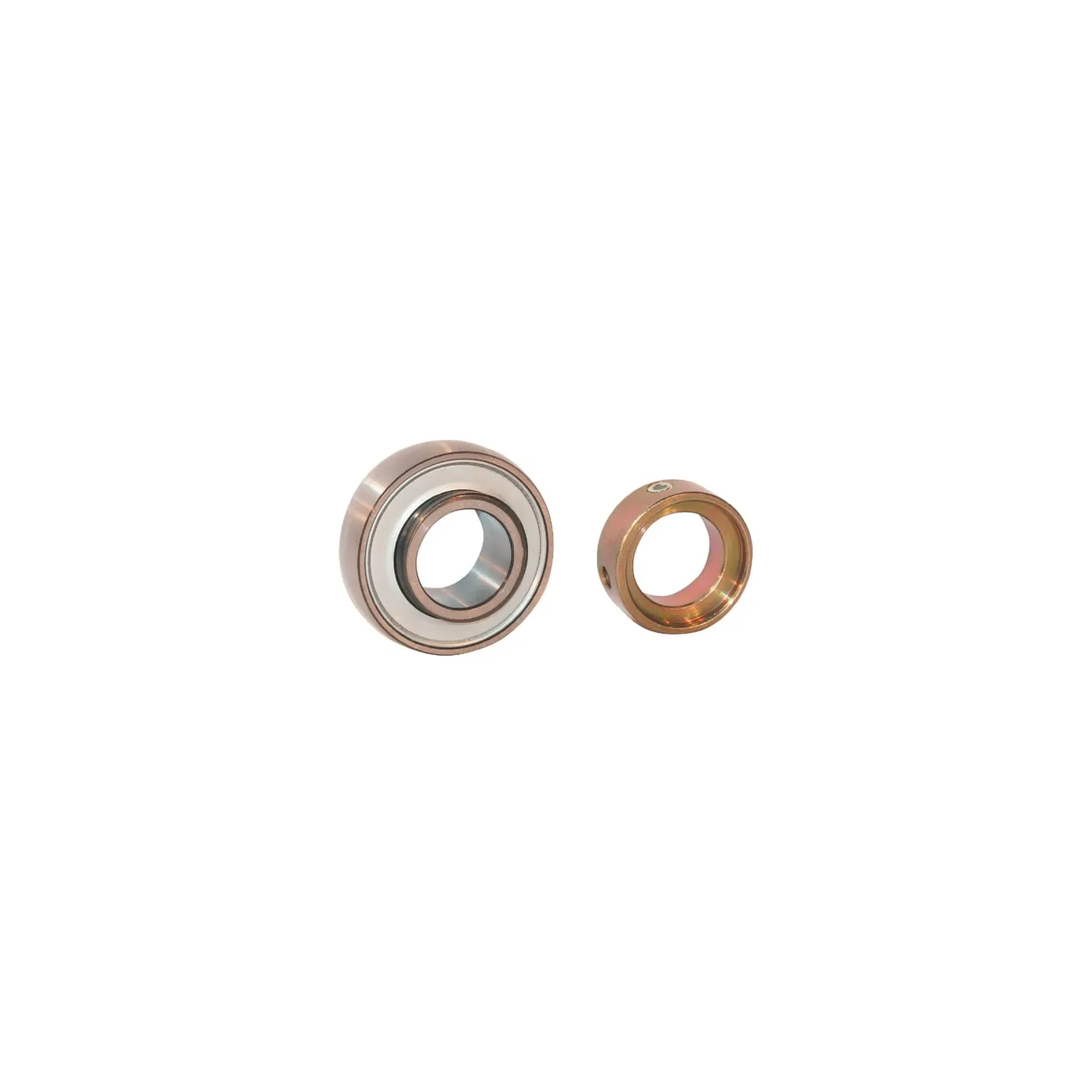

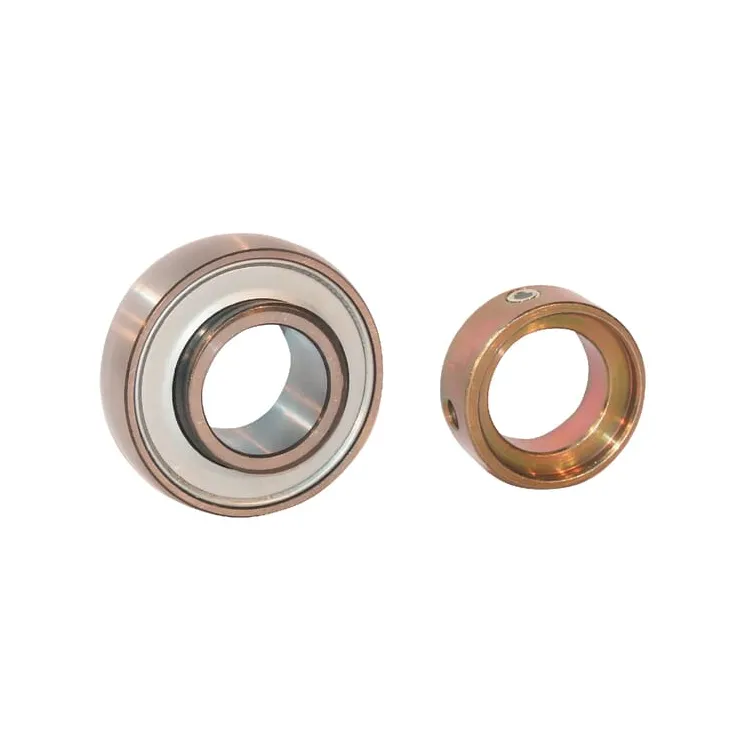

Long description	Ball bearing inserts INA/FAG, series GRA..NPPB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	One-sided extended inner ring with clamp ring Inch bore Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	25.4 mm
Inside diameter	1 Inch
DspOutside diameter	52 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	15 mm
CInner ring width	21.4 mm
B1Locking collar and inner ring width	31 mm
RLocking collar outside diameter	37.5 mm
FOutside diameter of inner ring	30.5 mm
Basic radial load dynamic	14000 N
GBall centre to grease hole distance	3.9 mm
EBall centre to end distance	7.5 mm
Original number equivalent	GRA100-NPP-B-AS2/V
