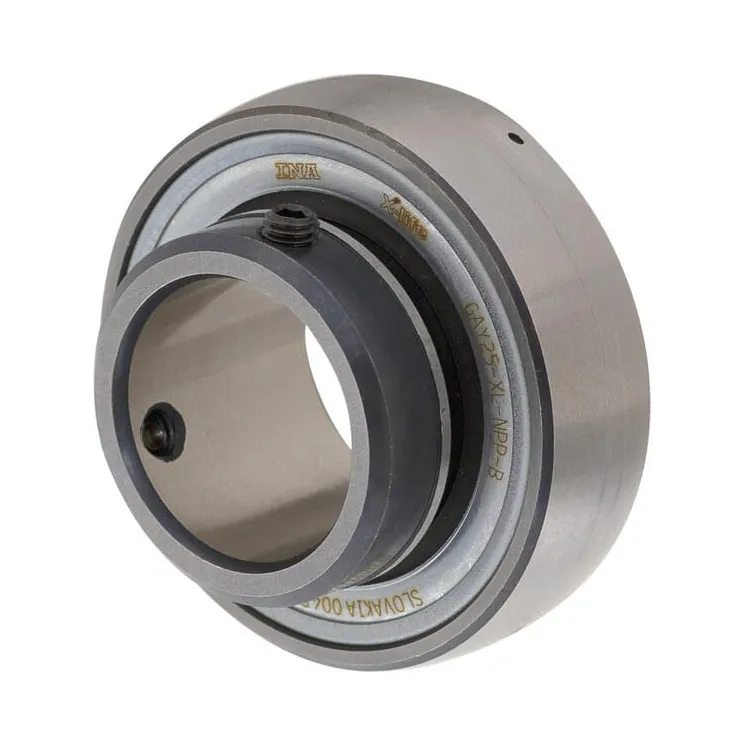

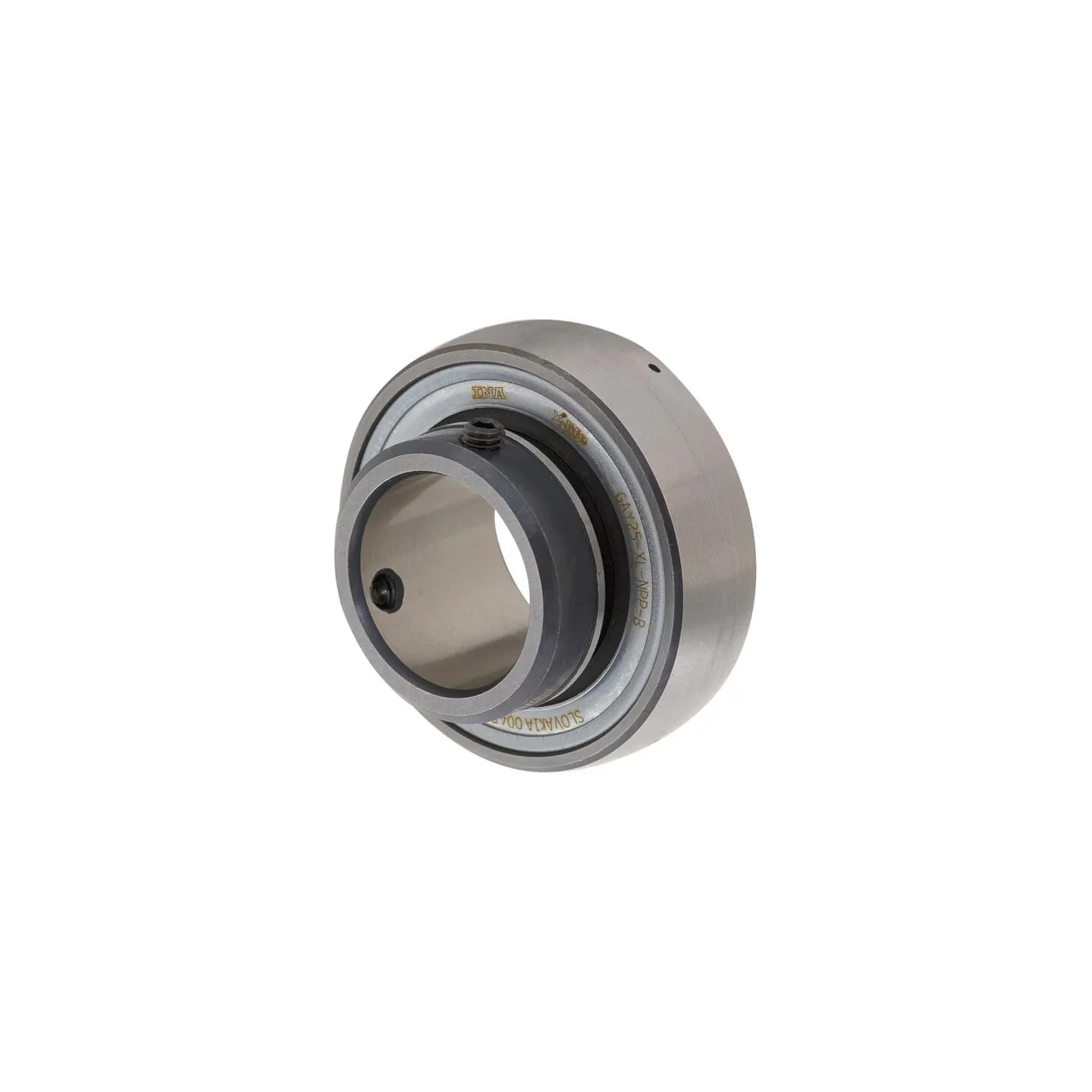

Gultņa ieliktnis 25x52x15mm GAY25NPPB

Name: Gultņa ieliktnis 25x52x15mm GAY25NPPB
Brand: INA/FAG
SKU: GAY25NPPB
Price: 19.09 EUR
Availability: InStock

Apmaksas iespējas

19,09 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 25x52x15mm GAY25NPPB INA/FAG

IR NOLIKTAVĀ

ID: 64015

Apraksts

Part number	GAY25NPPB
EAN	4012802795615
Unit	Each
Product details	One-sided extended inner ring with 2 adjusting screws Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	25 mm
DOutside diameter	52 mm
BOuter ring width	15 mm
Inner ring width	27 mm
Outside diameter of inner ring	33.5 mm
Locking screw centre to end distance	5 mm
Basic radial load static	7800 N
Basic radial load dynamic	14000 N
SWWrench/Spanner size	2.5 mm
Ball centre to grease hole distance	3.9 mm
Ball centre to end distance	7.5 mm
Original number equivalent	GAY25-NPP-B
Weight	0.15 kg
