Gultņa ieliktnis 25x52x15mm GE25KLLB

Name: Gultņa ieliktnis 25x52x15mm GE25KLLB
Brand: INA/FAG
SKU: GE25KLLB
Price: 43.73 EUR
Availability: InStock

Apmaksas iespējas

43,73 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 25x52x15mm GE25KLLB INA/FAG

IR NOLIKTAVĀ

ID: 64024

Apraksts

Part number	GE25KLLB
EAN	4012802800074
Unit	Each

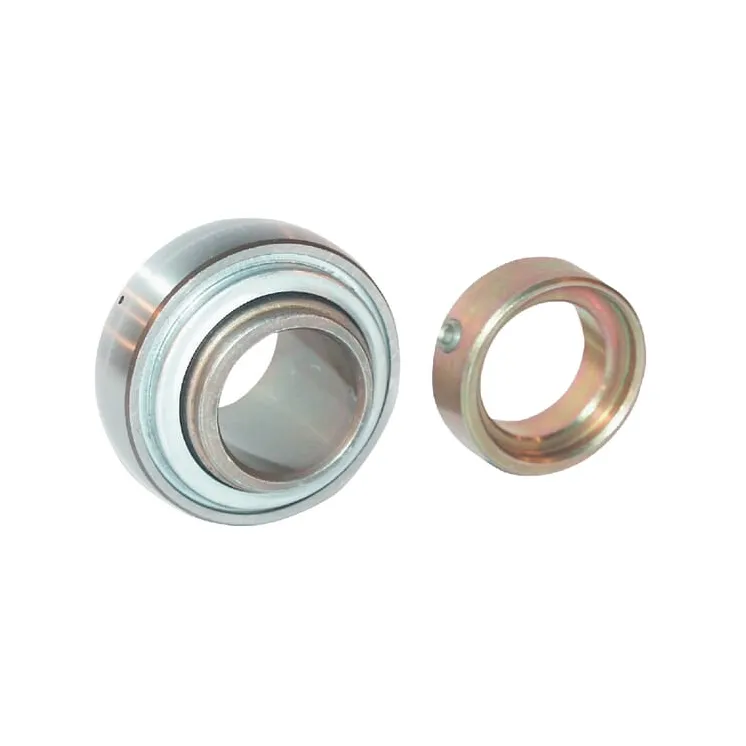

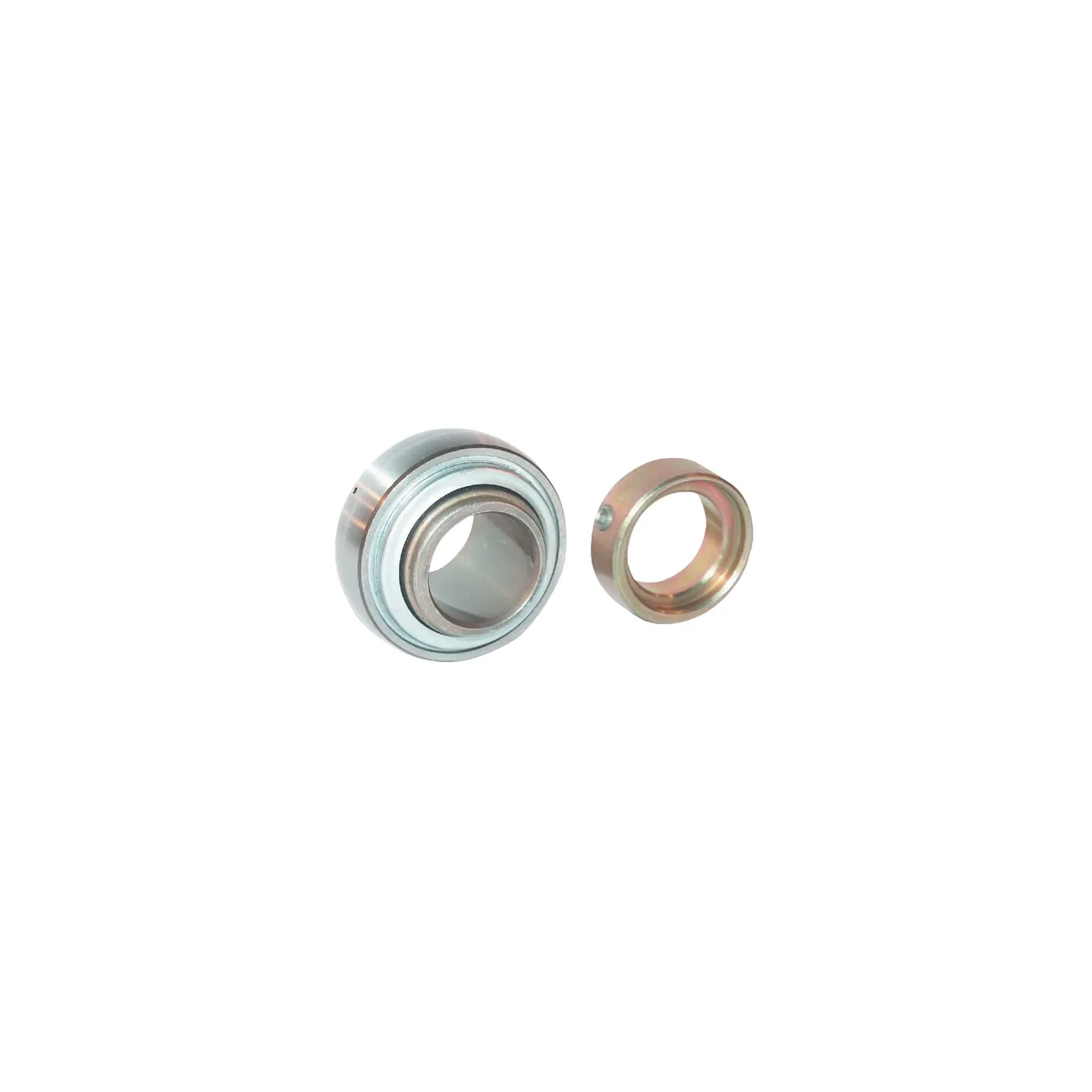

Long description	Ball bearing inserts INA/FAG, series GE..KLLB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes Labyrinth seal Steel cage
dInside diameter	25 mm
DOutside diameter	52 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	15 mm
CInner ring width	34.9 mm
LLocking collar and inner ring width	44.5 mm
FOutside diameter of inner ring	33.8 mm
Basic radial load static	7800 N
Basic radial load dynamic	14900 N
Min working temperature	-40 °C
Max working temperature	180 °C
Original number equivalent	GE25-KLL-B
Weight	0.25 kg
