Gultņa ieliktnis 35x72x19mm GE35KRRB2C

Name: Gultņa ieliktnis 35x72x19mm GE35KRRB2C
Brand: INA/FAG
SKU: GE35KRRB2C
Price: 52.43 EUR
Availability: InStock

Apmaksas iespējas

52,43 €

AR PVN

4-5 Darba dienas

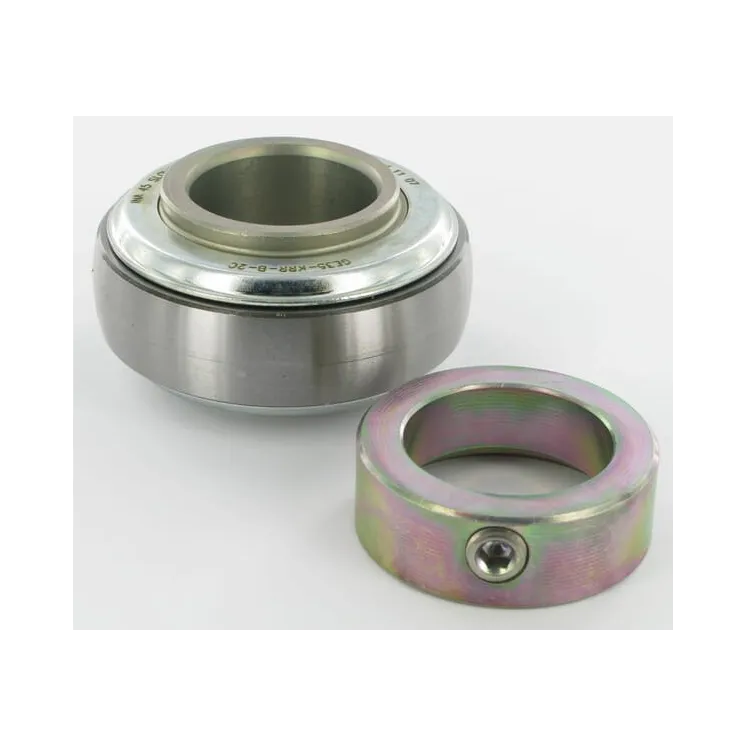

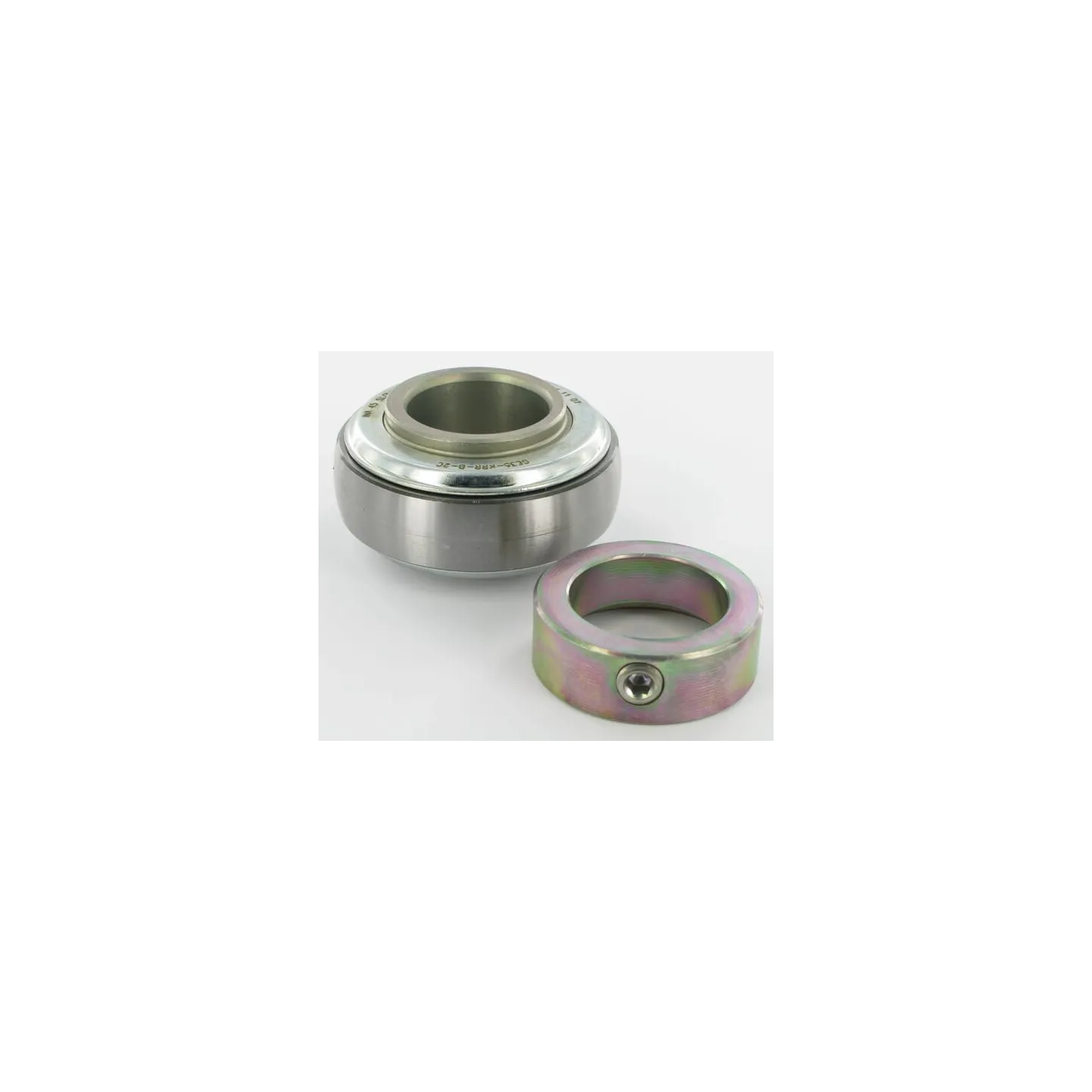

Gultņa ieliktnis 35x72x19mm GE35KRRB2C INA/FAG

IR NOLIKTAVĀ

ID: 64027

Apraksts

Part number	GE35KRRB2C
EAN	4012802793208
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GE..KRRB2C
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal and additional metal seal Polyamide housing
dInside diameter	35 mm
DspOutside diameter	72 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	19 mm
BInner ring width	37.7 mm
Locking collar and inner ring width	51.3 mm
Locking collar outside diameter	51 mm
d1Outside diameter of inner ring	46.8 mm
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
Ball centre to end distance	18.8 mm
Original number equivalent	GE35-KRR-B-2C
Weight	0.58 kg
