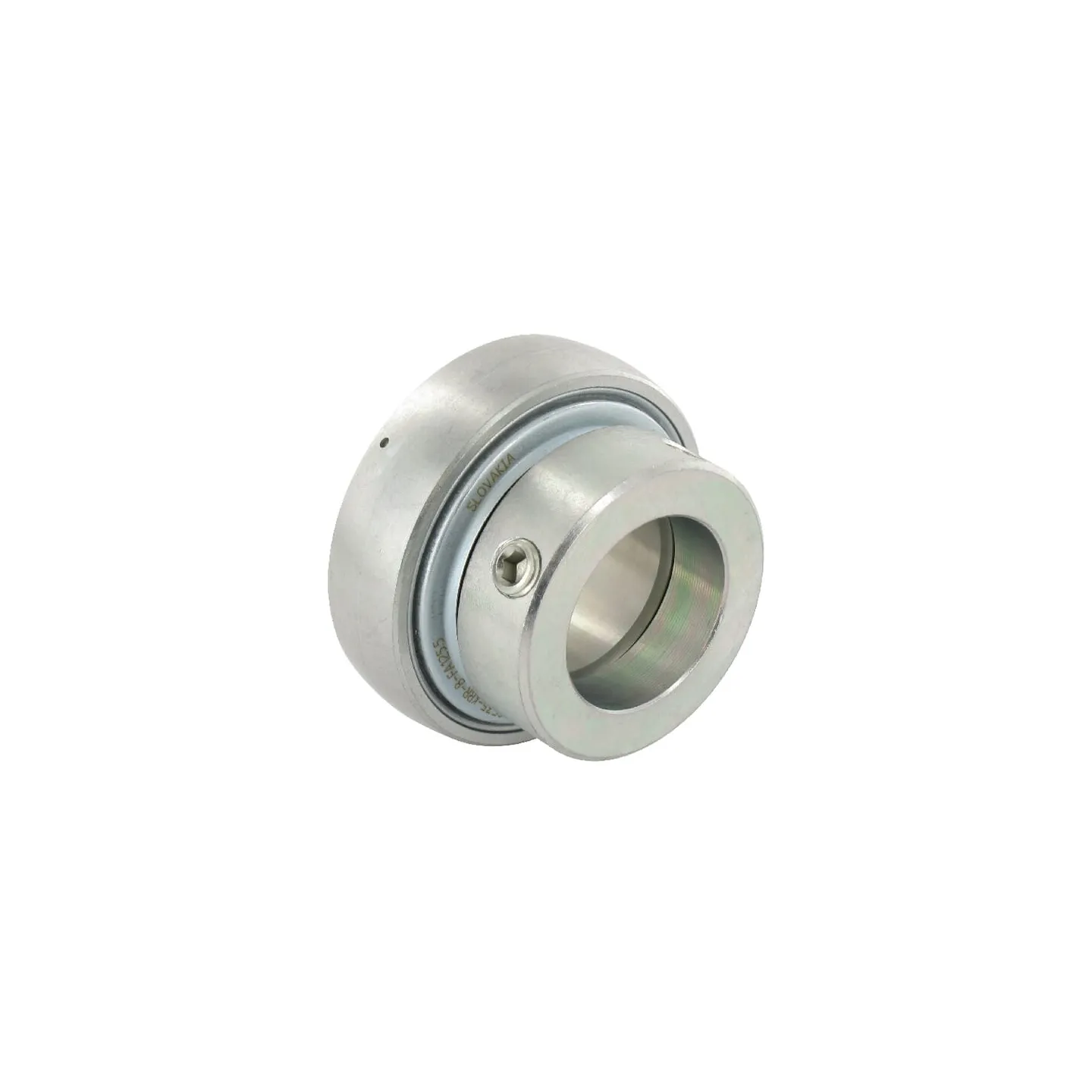

Gultņa ieliktnis 40x80x21mm GE40KRRBFA1255

Name: Gultņa ieliktnis 40x80x21mm GE40KRRBFA1255
Brand: INA/FAG
SKU: GE40KRRBFA1255
Price: 62.67 EUR
Availability: InStock

Apmaksas iespējas

62,67 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 40x80x21mm GE40KRRBFA1255 INA/FAG

IR NOLIKTAVĀ

ID: 64047

Apraksts

Part number	GE40KRRBFA1255
EAN	4012802812725
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Technical info	Supplement FA: rust-proof Corrotect design
dInside diameter	40 mm
DspOutside diameter	80 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	21 mm
BInner ring width	42.9 mm
Locking collar and inner ring width	56.5 mm
Locking collar outside diameter	58 mm
d1Outside diameter of inner ring	52.3 mm
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	6.4 mm
Sealing width	23.5 mm
Ball centre to end distance	21.4 mm
Original number equivalent	GE40-KRR-B-FA125.5
Weight	0.74 kg
