Gultņa ieliktnis 35x72x19mm GAY35NPPB

Name: Gultņa ieliktnis 35x72x19mm GAY35NPPB
Brand: INA/FAG
SKU: GAY35NPPB
Price: 25.54 EUR
Availability: InStock

Apmaksas iespējas

25,54 €

AR PVN

4-5 Darba dienas

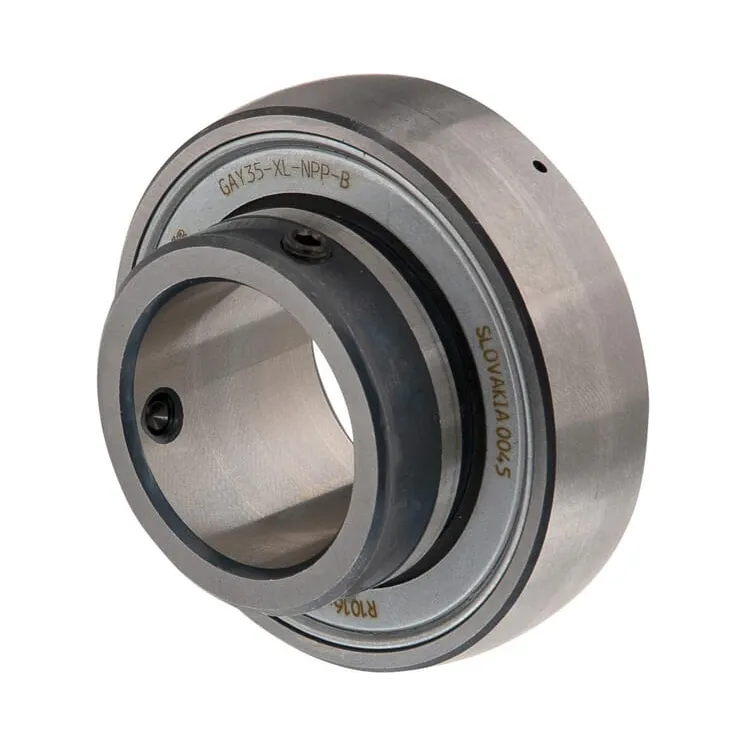

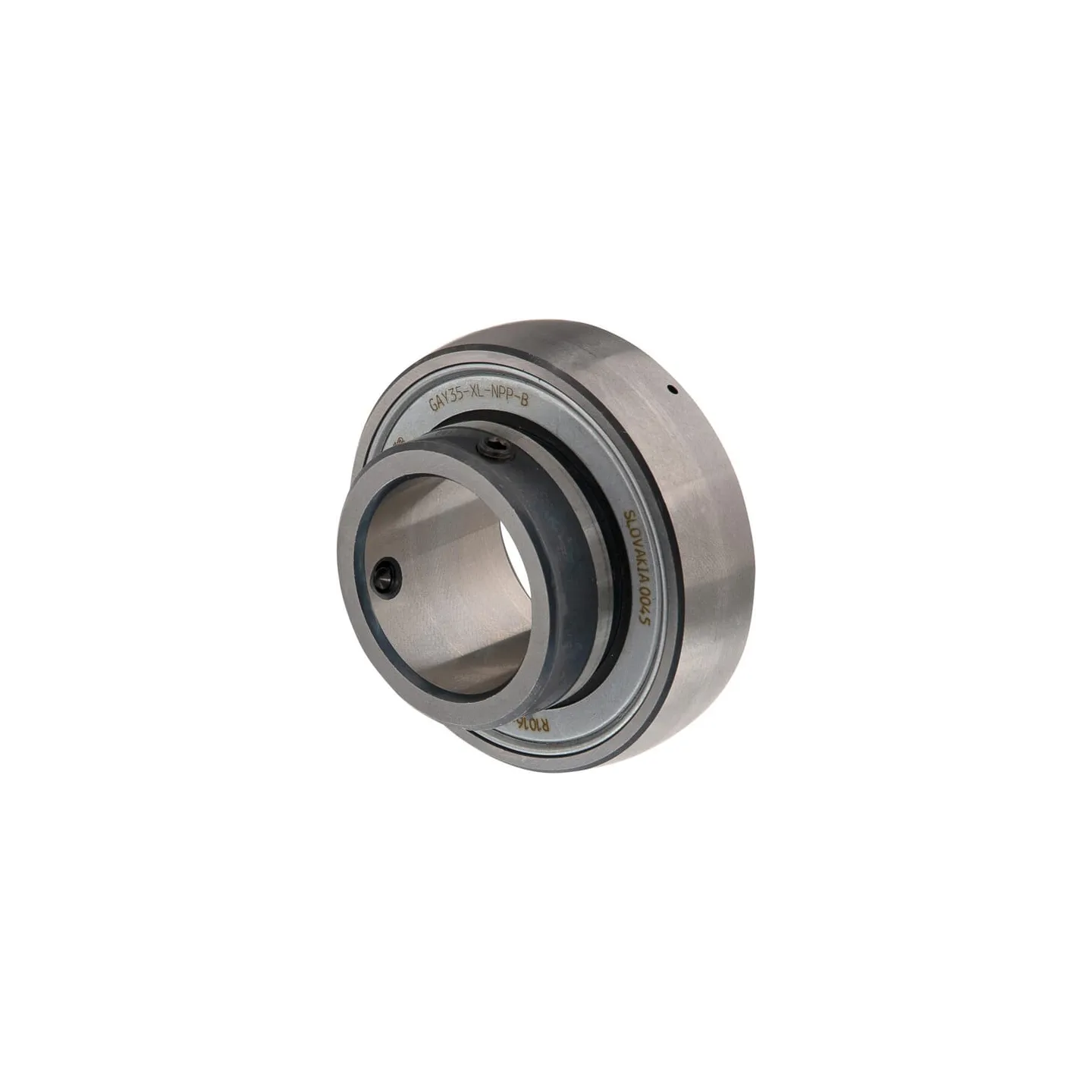

Gultņa ieliktnis 35x72x19mm GAY35NPPB INA/FAG

IR NOLIKTAVĀ

ID: 64056

Apraksts

Part number	GAY35NPPB
EAN	4012802794588
Unit	Each
Product details	One-sided extended inner ring with 2 adjusting screws Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	35 mm
DOutside diameter	72 mm
BOuter ring width	19 mm
Inner ring width	35 mm
Outside diameter of inner ring	46.9 mm
Locking screw centre to end distance	6 mm
Basic radial load static	15300 N
Basic radial load dynamic	27500 N
SWWrench/Spanner size	3.0 mm
Ball centre to grease hole distance	5.7 mm
Ball centre to end distance	9.5 mm
Original number equivalent	GAY35-NPP-B
Weight	0.38 kg
