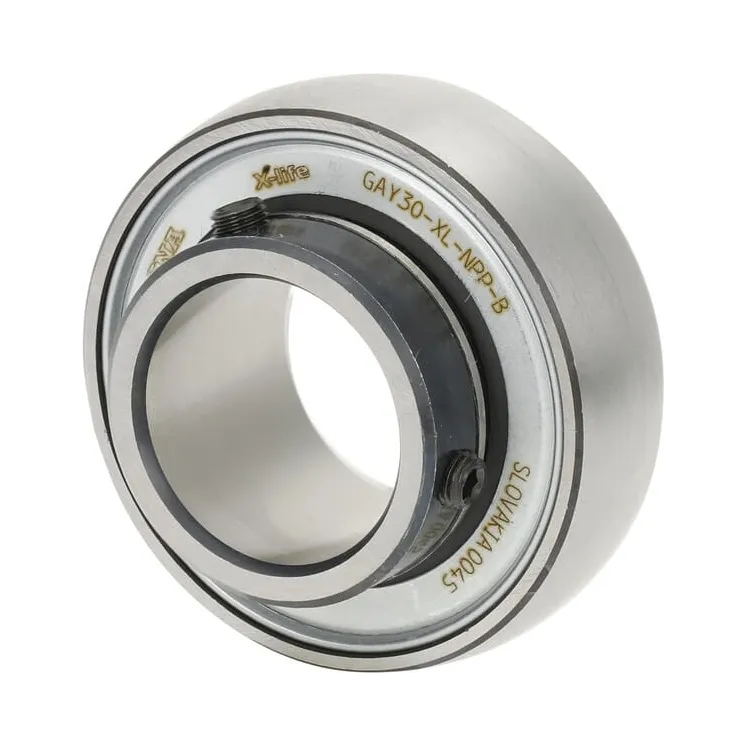

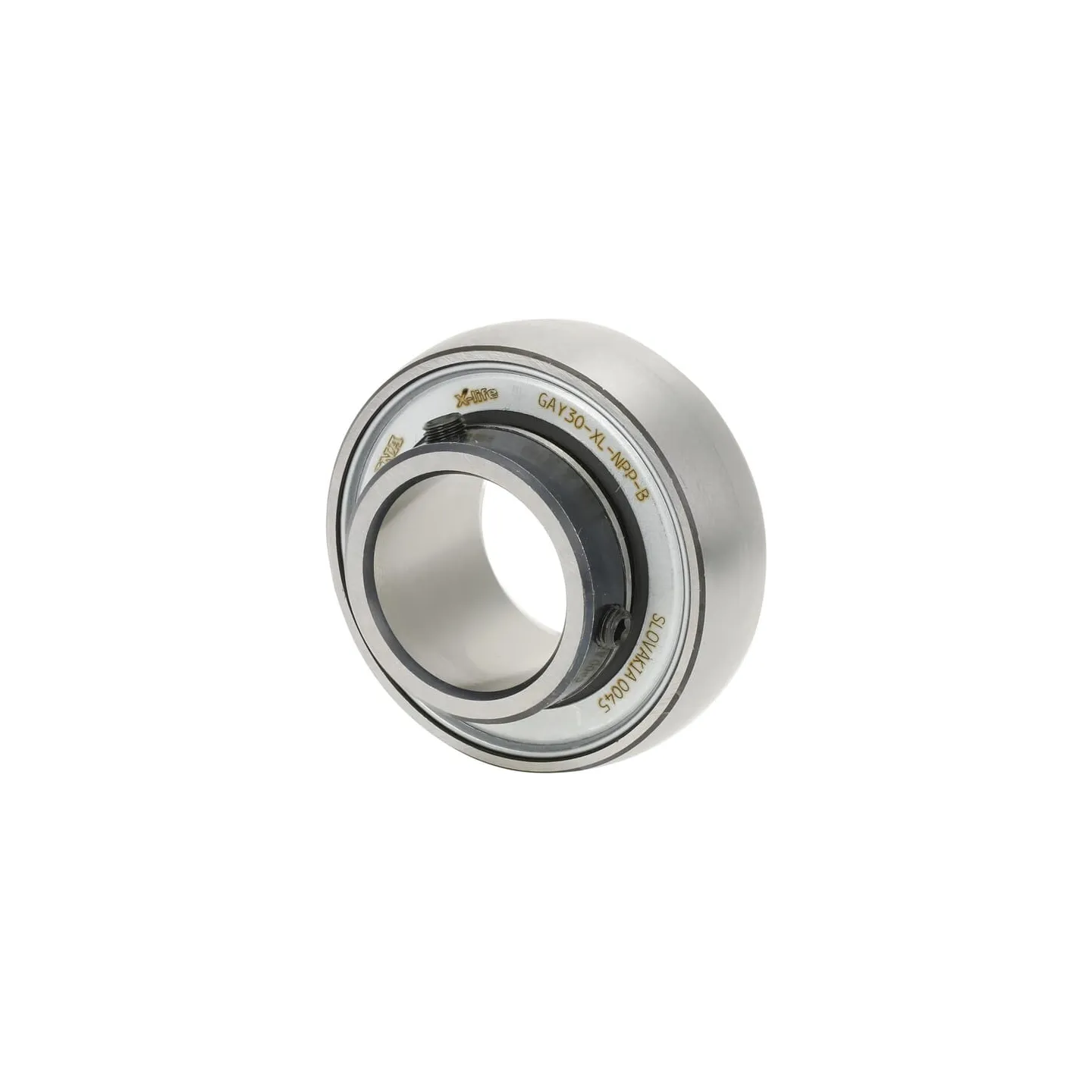

Gultņa ieliktnis 30x62x18mm GAY30NPPB SB206

Name: Gultņa ieliktnis 30x62x18mm GAY30NPPB SB206
Brand: INA/FAG
SKU: GAY30NPPB
Price: 26.28 EUR
Availability: InStock

Apmaksas iespējas

26,28 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x18mm GAY30NPPB INA/FAG SB206

IR NOLIKTAVĀ

ID: 64072

Apraksts

Part number	GAY30NPPB
EAN	4012802794601
Unit	Each
Product details	One-sided extended inner ring with 2 adjusting screws Convex outer ring with lubricating holes P seal Polyamide housing
dInside diameter	30 mm
DOutside diameter	62 mm
BOuter ring width	18 mm
Inner ring width	30 mm
Outside diameter of inner ring	39.4 mm
Locking screw centre to end distance	5 mm
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
SWWrench/Spanner size	3.0 mm
Ball centre to grease hole distance	5 mm
Ball centre to end distance	9 mm
Original number equivalent	GAY30-NPP-B
Weight	0.25 kg
