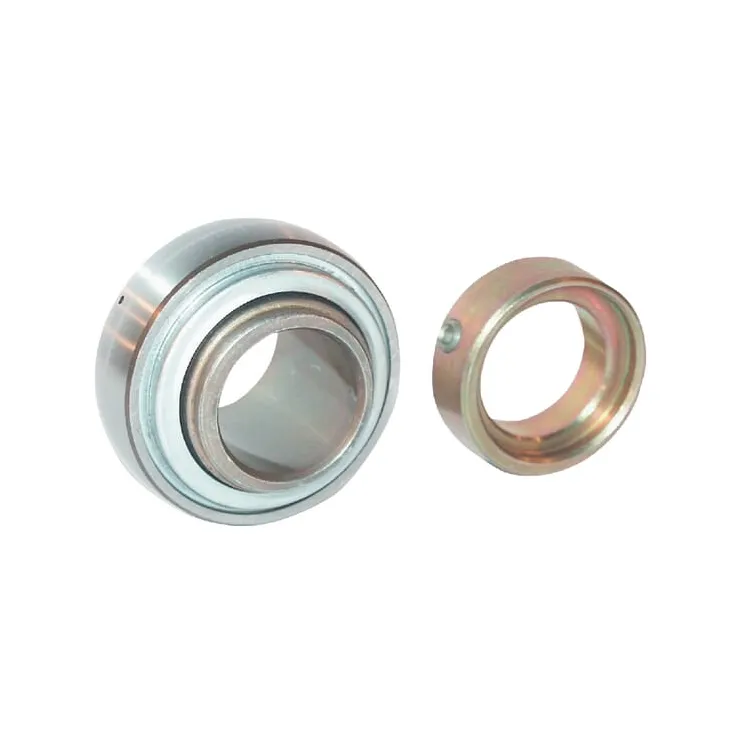

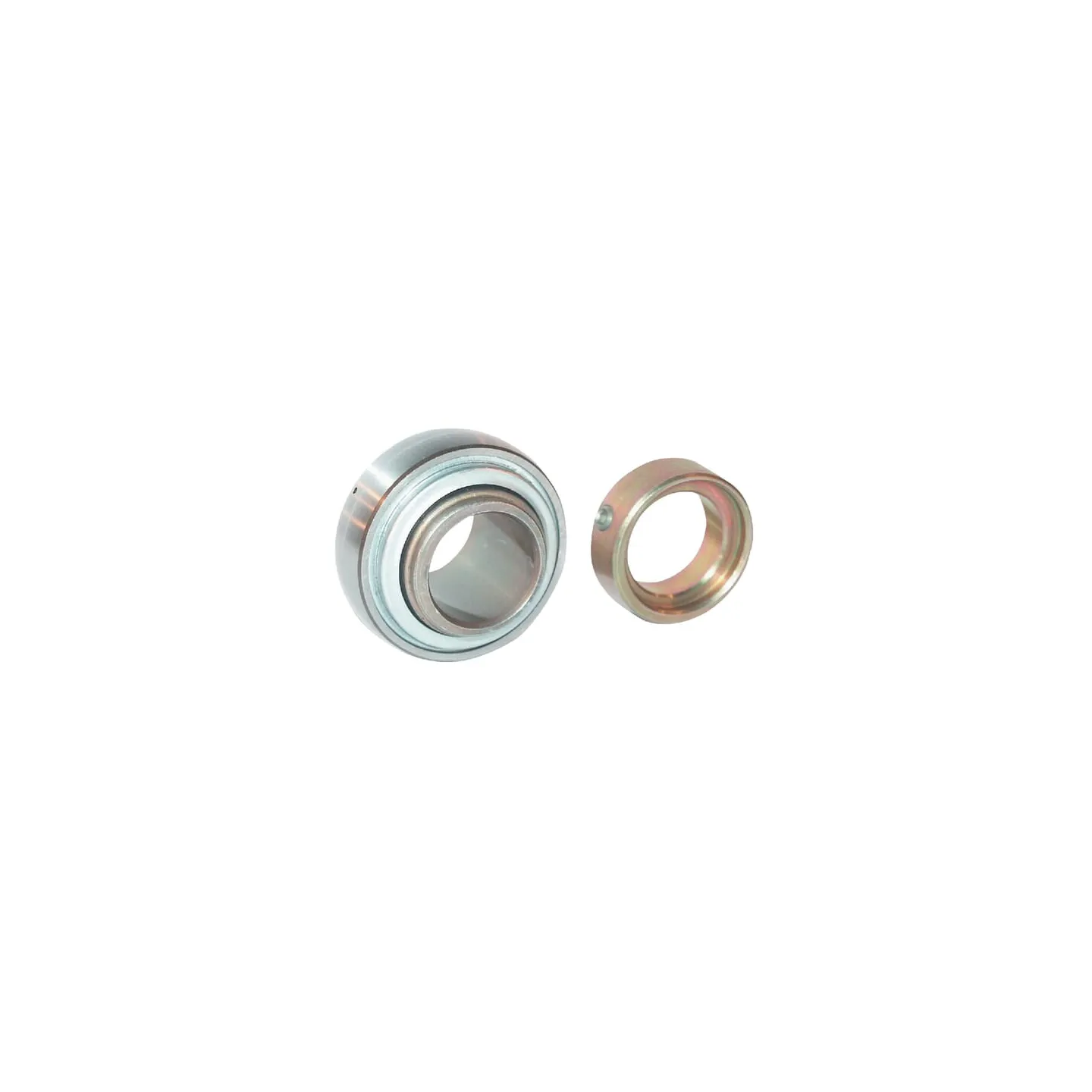

Gultņa ieliktnis 30x62x18mm GE30KLLB

Name: Gultņa ieliktnis 30x62x18mm GE30KLLB
Brand: INA/FAG
SKU: GE30KLLB
Price: 54.01 EUR
Availability: InStock

Apmaksas iespējas

54,01 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x18mm GE30KLLB INA/FAG

IR NOLIKTAVĀ

ID: 64092

Apraksts

Part number	GE30KLLB
EAN	4012802800036
Unit	Each
Long description	Ball bearing inserts INA/FAG, series GE..KLLB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes Labyrinth seal Steel cage
dInside diameter	30 mm
DOutside diameter	62 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	18 mm
CInner ring width	36.5 mm
LLocking collar and inner ring width	48.5 mm
FOutside diameter of inner ring	40.2 mm
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Min working temperature	-40 °C
Max working temperature	180 °C
Original number equivalent	GE30-KLL-B
Weight	0.39 kg
