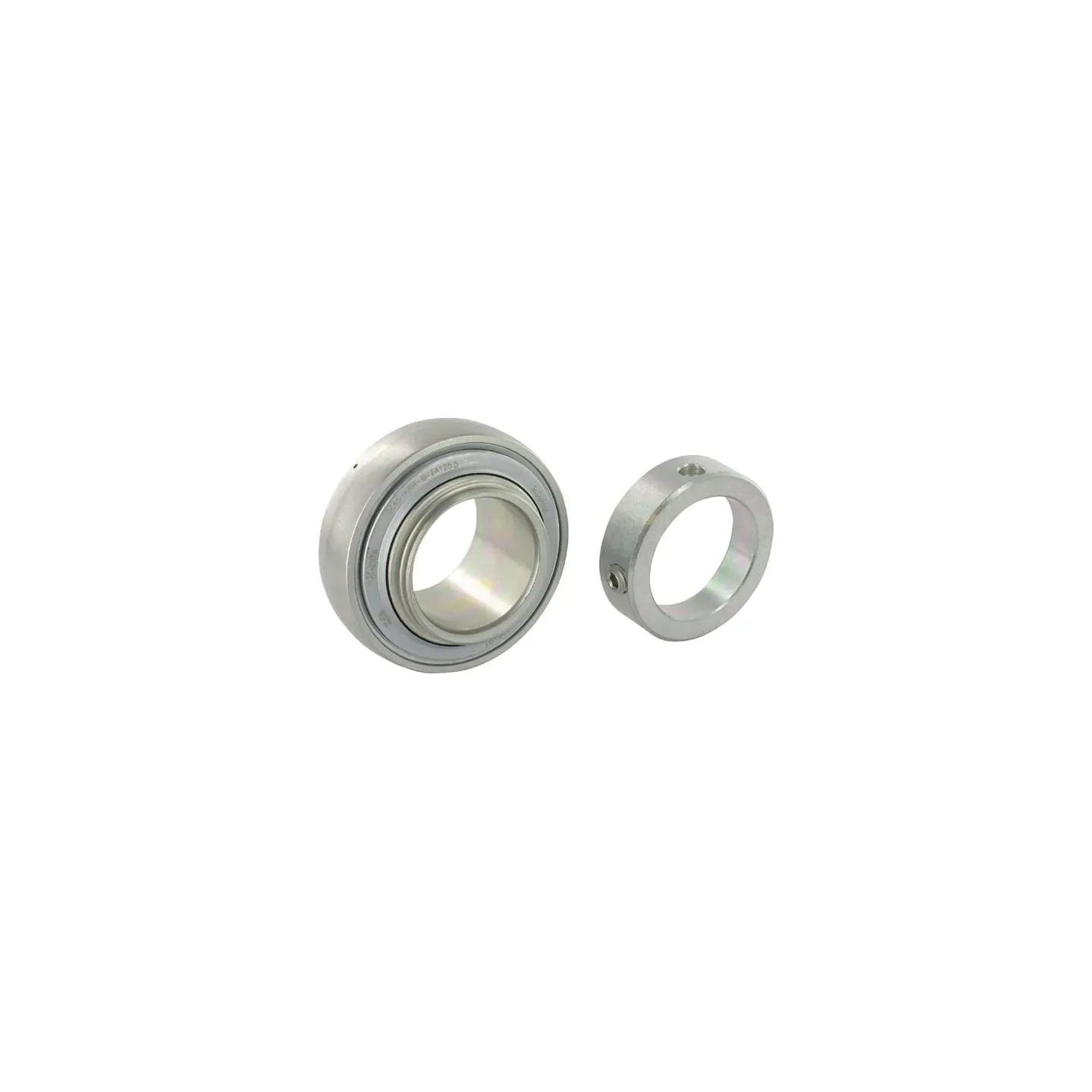

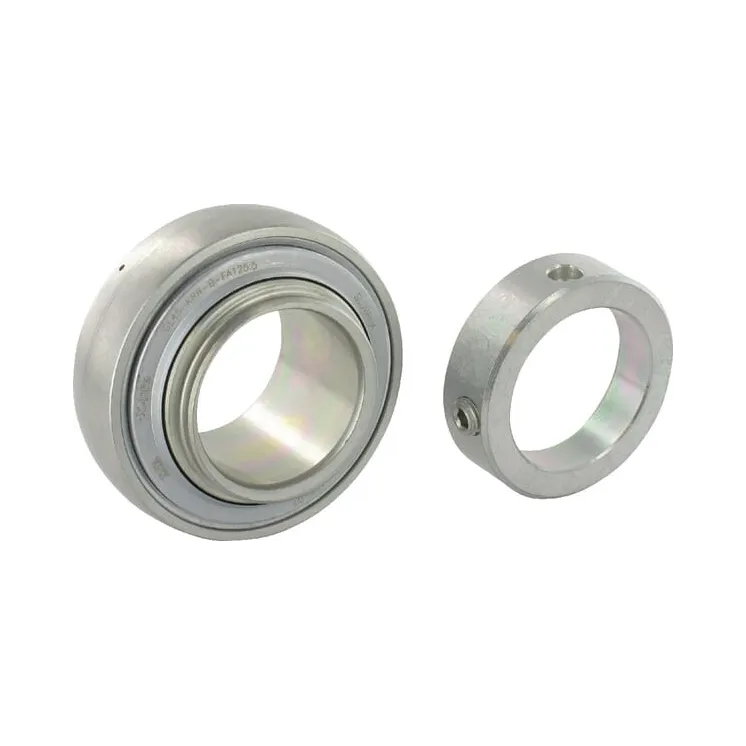

Gultņa ieliktnis 45x85x22mm GE45KRRBFA1255

Name: Gultņa ieliktnis 45x85x22mm GE45KRRBFA1255
Brand: INA/FAG
SKU: GE45KRRBFA1255
Price: 72.45 EUR
Availability: BackOrder

Apmaksas iespējas

72,45 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 45x85x22mm GE45KRRBFA1255 INA/FAG

Uz pasūtījumu

ID: 64106

Apraksts

Part number	GE45KRRBFA1255
EAN	4012802812695
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Technical info	Supplement FA: rust-proof Corrotect design
dInside diameter	45 mm
DspOutside diameter	85 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	22 mm
BInner ring width	42.9 mm
Locking collar and inner ring width	56.5 mm
Locking collar outside diameter	63 mm
d1Outside diameter of inner ring	57.9 mm
Basic radial load static	20400 N
Basic radial load dynamic	34500 N
Wrench/Spanner size	5.0 mm
Ball centre to grease hole distance	6.4 mm
Sealing width	26.4 mm
Ball centre to end distance	21.4 mm
Original number equivalent	GE45-KRR-B-FA125.5
Weight	0.81 kg
