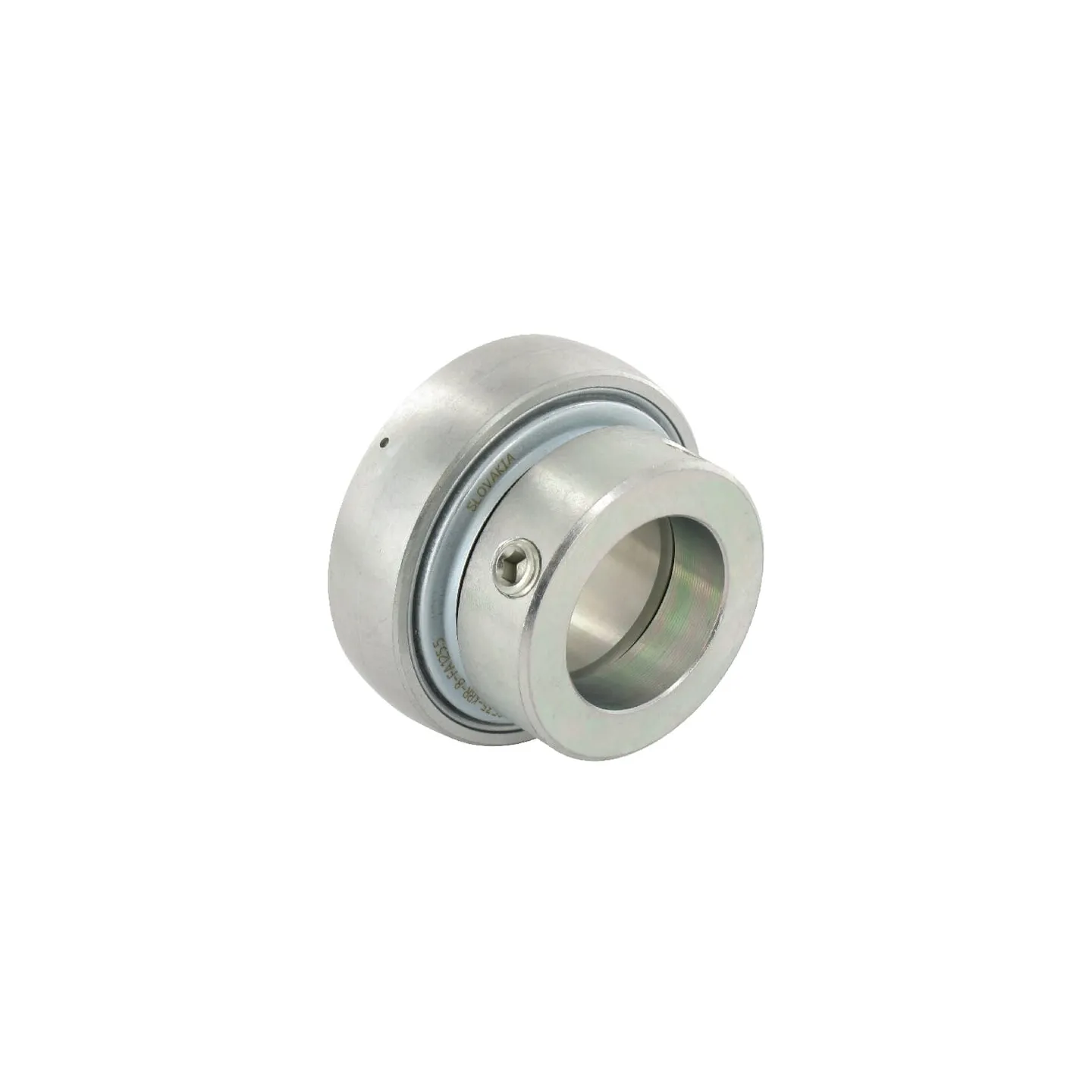

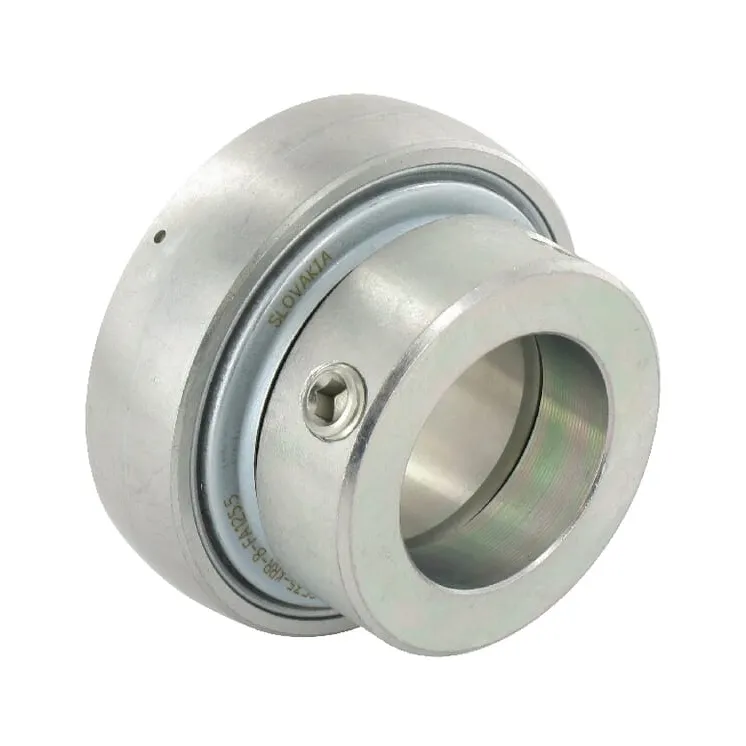

Gultņa ieliktnis 30x62x18mm GE30KRRBFA1255

Name: Gultņa ieliktnis 30x62x18mm GE30KRRBFA1255
Brand: INA/FAG
SKU: GE30KRRBFA1255
Price: 47.89 EUR
Availability: InStock

Apmaksas iespējas

47,89 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 30x62x18mm GE30KRRBFA1255 INA/FAG

IR NOLIKTAVĀ

ID: 64115

Apraksts

Part number	GE30KRRBFA1255
EAN	4012802812794
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Technical info	Supplement FA: rust-proof Corrotect design
dInside diameter	30 mm
DspOutside diameter	62 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	18 mm
BInner ring width	36.5 mm
Locking collar and inner ring width	48.5 mm
Locking collar outside diameter	44 mm
d1Outside diameter of inner ring	40.2 mm
Basic radial load static	11300 N
Basic radial load dynamic	20700 N
Wrench/Spanner size	4.0 mm
Ball centre to grease hole distance	4.7 mm
Sealing width	20.7 mm
Ball centre to end distance	18.3 mm
Original number equivalent	GE30-KRR-B-FA125.5
Weight	0.38 kg
