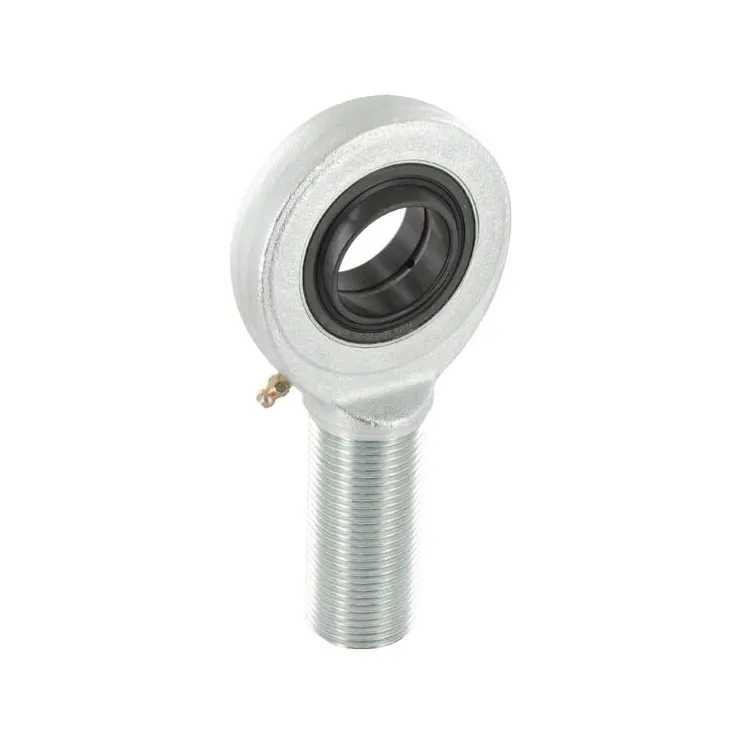

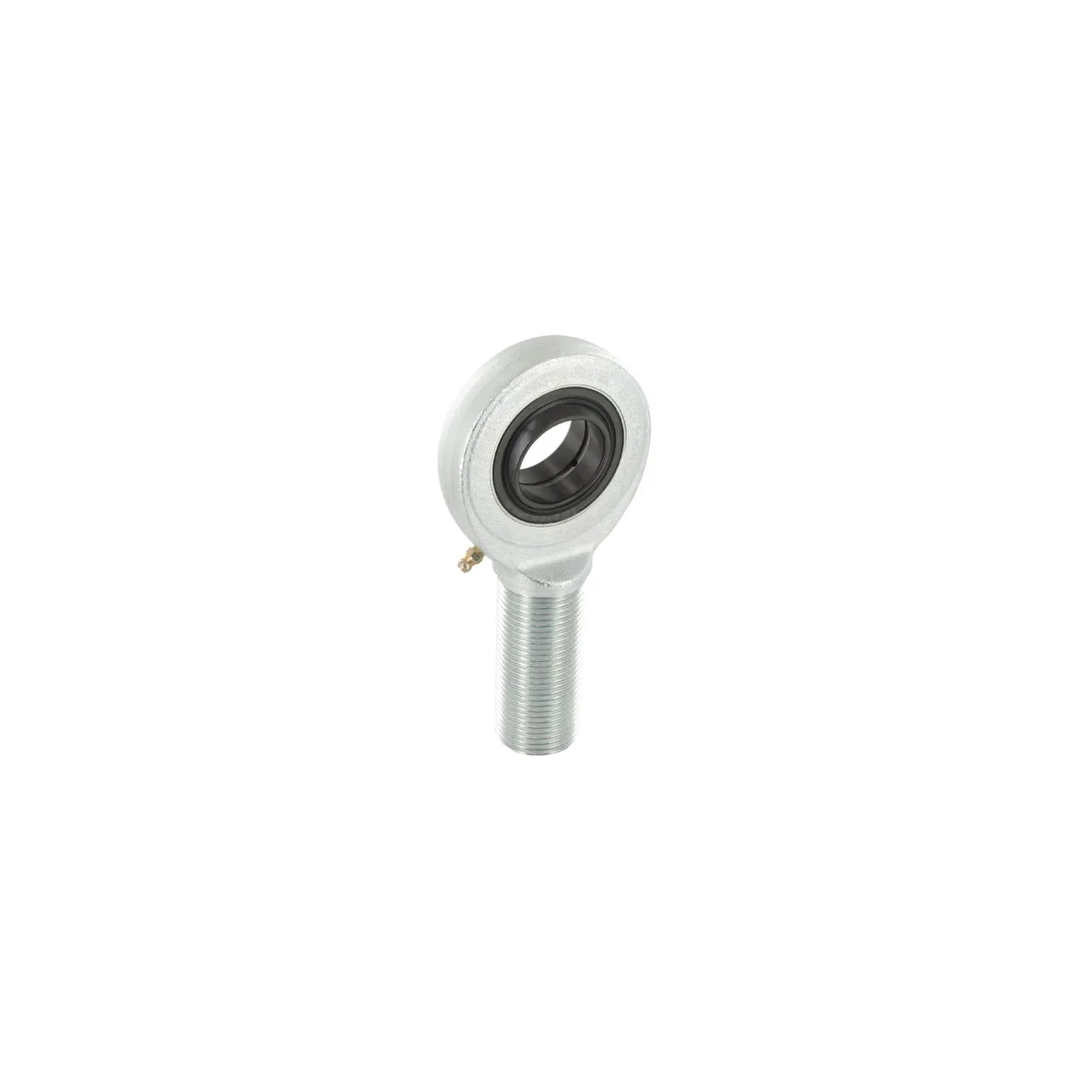

Stieņa galva GAR25DO2RSINA

Name: Stieņa galva GAR25DO2RSINA
Brand: INA/FAG
SKU: GAR25DO2RSINA
Price: 71.23 EUR
Availability: BackOrder

Apmaksas iespējas

71,23 €

AR PVN

Pēc pieprasījuma

Stieņa galva GAR25DO2RSINA INA/FAG

Uz pasūtījumu

ID: 64120

Apraksts

Part number	GAR25DO2RSINA
EAN	4012802525069
Unit	Each
Technical info	Spherical bearing. Needs maintenance. Male thread DIN 24338 To DIN-series E, form A ISO 6126.
dHole diameter	25 mm
Hole length	20 mm
Bearing outside diameter	42 mm
Outside diameter of inner ring	29.3 mm
Edge angle	7 °
d2Total length	126 mm
Shaft to center distance	32 mm
Thread diameter	M24
Thread pitch	2.00 mm
Thread direction	Right
Thread length	53 mm
Hole centre to bottom distance	94 mm
Head outside diameter	64 mm
Head width (hole length)	17 mm
Surface treatment	Zinc-plated
Basic radial load dynamic	48300 N
Basic radial load static	88300 N
Original number equivalent	GAR25-DO-2RS
Weight	0.6 kg
