Gultņa ieliktnis 50x90x22mm GE50KLLB

Name: Gultņa ieliktnis 50x90x22mm GE50KLLB
Brand: INA/FAG
SKU: GE50KLLB
Price: 113.91 EUR
Availability: InStock

Apmaksas iespējas

113,91 €

AR PVN

4-5 Darba dienas

Gultņa ieliktnis 50x90x22mm GE50KLLB INA/FAG

IR NOLIKTAVĀ

ID: 64123

Apraksts

Part number	GE50KLLB
EAN	4012802799873
Unit	Each

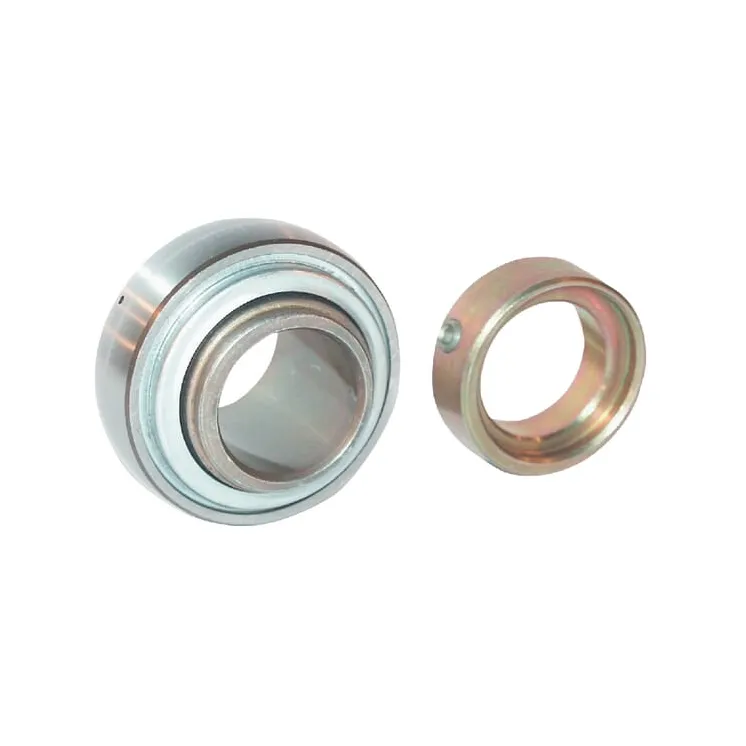

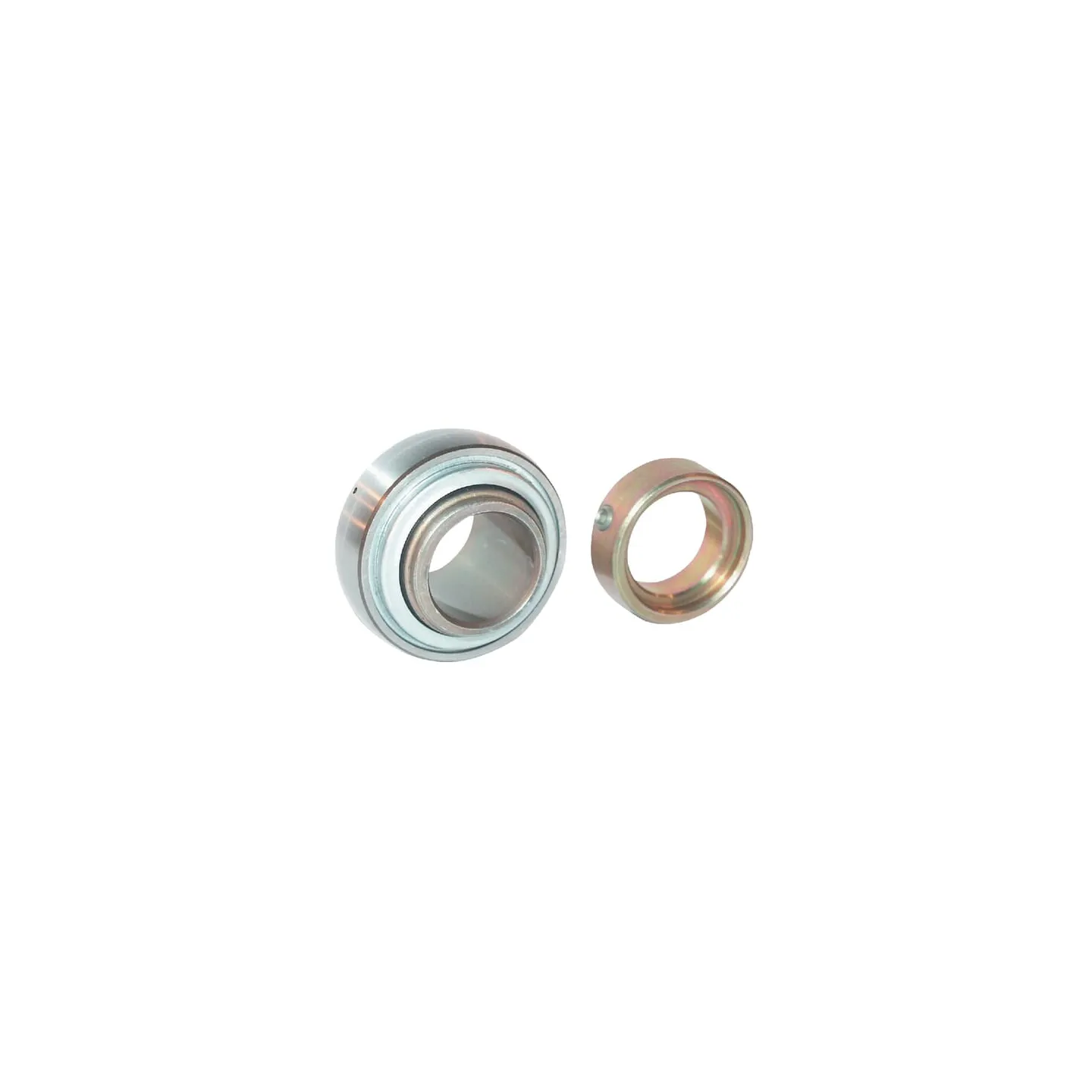

Long description	Ball bearing inserts INA/FAG, series GE..KLLB
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes Labyrinth seal Steel cage
dInside diameter	50 mm
DOutside diameter	90 mm
Consists of	Clamp bearing Clamp ring
BOuter ring width	22 mm
CInner ring width	49.2 mm
LLocking collar and inner ring width	62.8 mm
FOutside diameter of inner ring	62.8 mm
Basic radial load static	23200 N
Basic radial load dynamic	35000 N
Min working temperature	-40 °C
Max working temperature	180 °C
Original number equivalent	GE50-KLL-B
Weight	1 kg
