Gultņa ieliktnis 40x80x21mm GE40KRRBCC

Name: Gultņa ieliktnis 40x80x21mm GE40KRRBCC
Brand: INA/FAG
SKU: GE40KRRBCC
Price: 59.54 EUR
Availability: BackOrder

Apmaksas iespējas

59,54 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 40x80x21mm GE40KRRBCC INA/FAG

Uz pasūtījumu

ID: 64131

Apraksts

Part number	GE40KRRBCC
EAN	4012802793185
Unit	Each

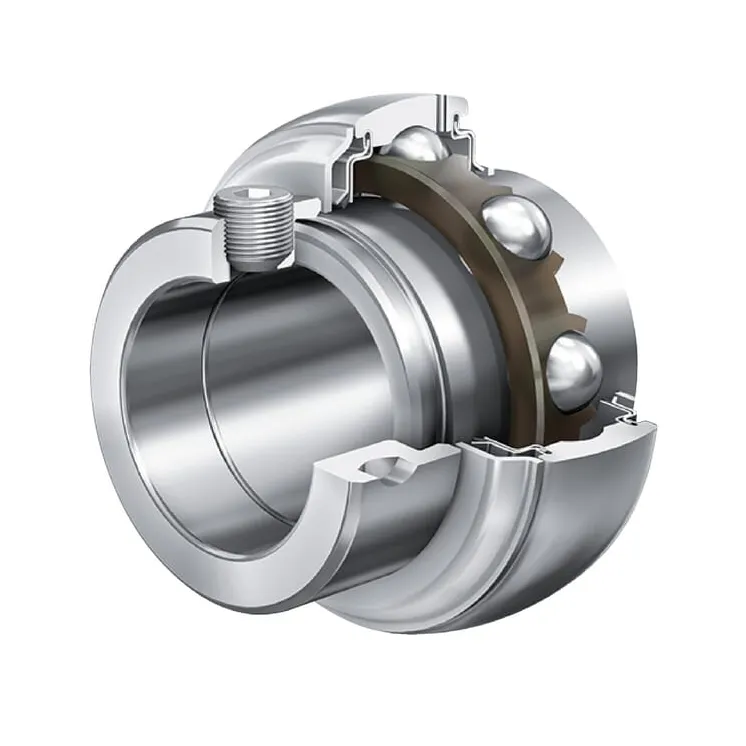

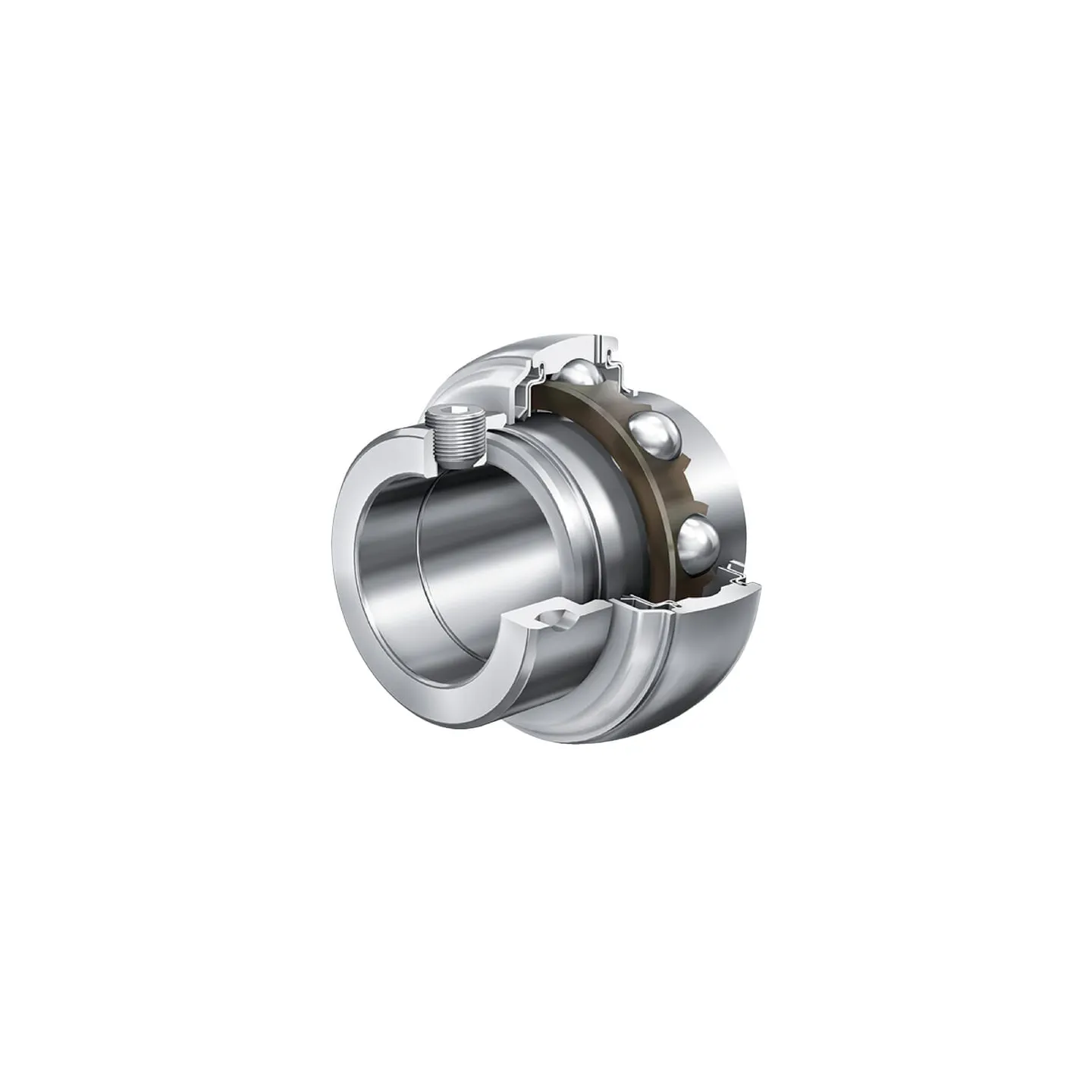

Long description	Ball bearing inserts INA/FAG, series GE..KRRB2C
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal and additional metal seal Polyamide housing
dInside diameter	40 mm
DspOutside diameter	80 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	21 mm
BInner ring width	42.9 mm
Locking collar and inner ring width	56.5 mm
Locking collar outside diameter	58 mm
d1Outside diameter of inner ring	52.3 mm
Basic radial load static	19800 N
Basic radial load dynamic	34500 N
Ball centre to end distance	21.4 mm
Original number equivalent	GE40-KRR-B-2C
Weight	0.78 kg
