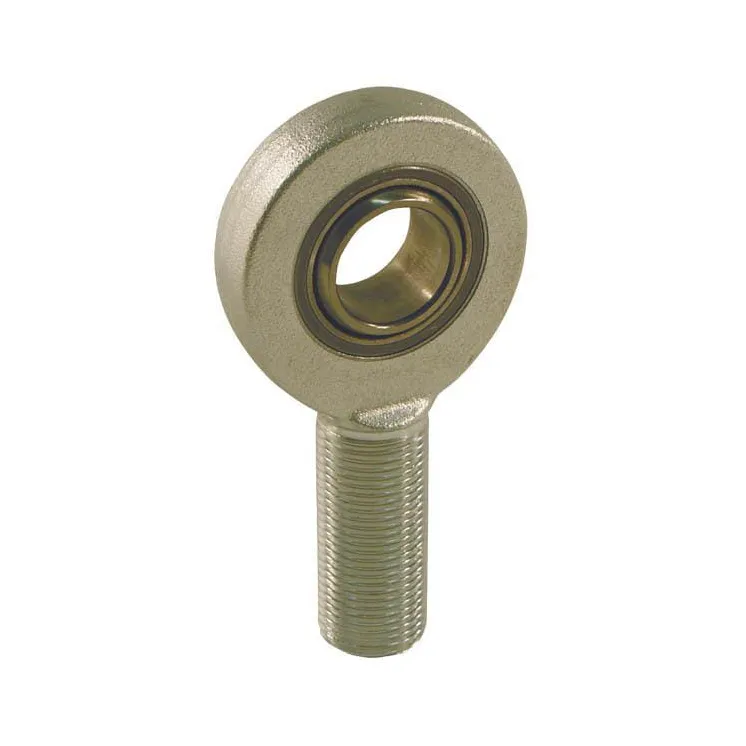

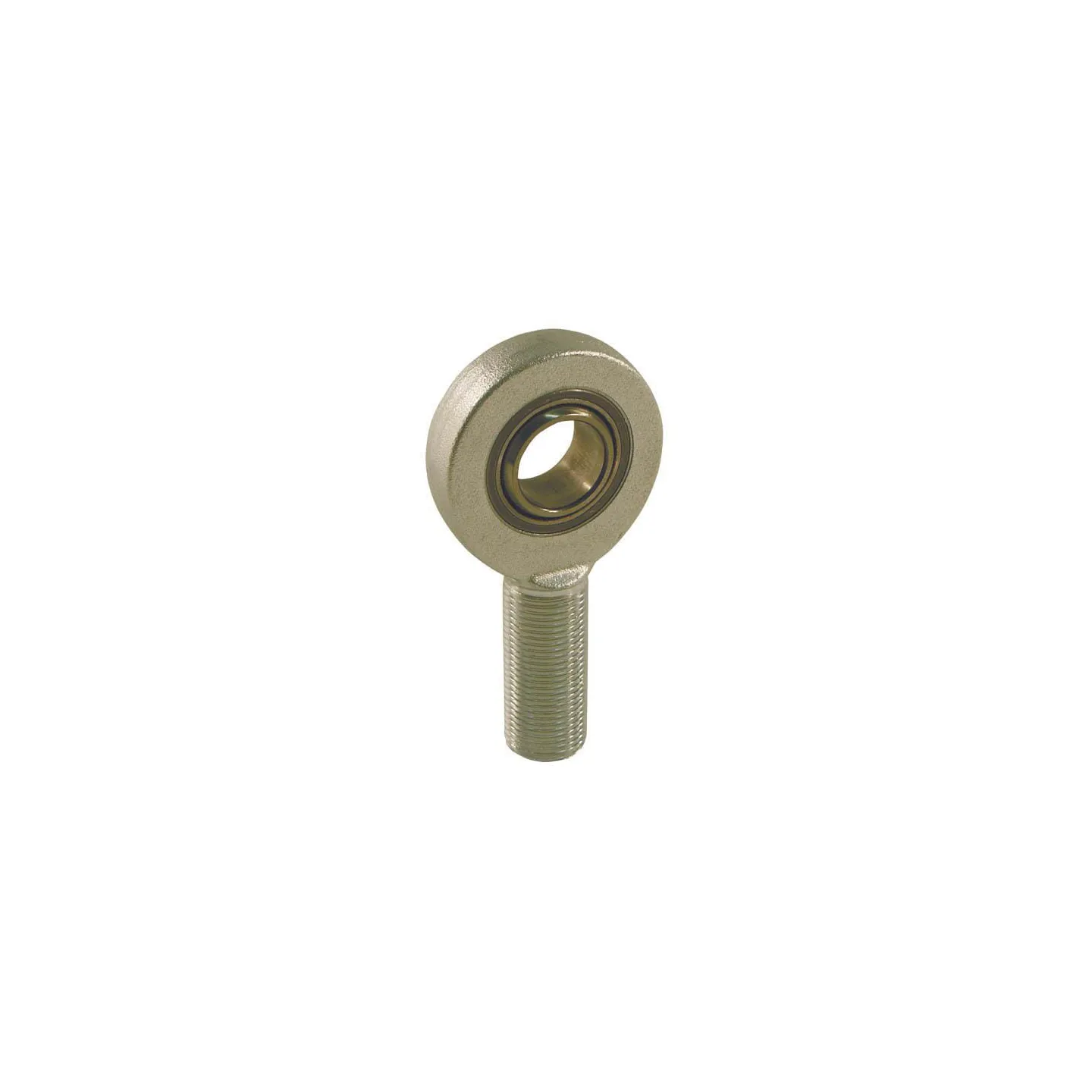

Stieņa galva GAR20DO2RSINA

Name: Stieņa galva GAR20DO2RSINA
Brand: INA/FAG
SKU: GAR20DO2RSINA
Price: 50.01 EUR
Availability: InStock

Apmaksas iespējas

50,01 €

AR PVN

4-5 Darba dienas

Stieņa galva GAR20DO2RSINA INA/FAG

IR NOLIKTAVĀ

ID: 64148

Apraksts

Part number	GAR20DO2RSINA
EAN	4012802524987
Unit	Each
Technical info	Spherical bearing. Needs maintenance. Male thread DIN 24338 To DIN-series E, form A ISO 6126.
dHole diameter	20 mm
BHole length	16 mm
DBearing outside diameter	35 mm
d1Outside diameter of inner ring	24.1 mm
Edge angle	9 °
Total length	104.5 mm
Shaft to center distance	27.5 mm
d3Thread diameter	M20
Thread pitch	1.50 mm
Thread direction	Right
L1Thread length	43 mm
hHole centre to bottom distance	78 mm
Head outside diameter	53 mm
C1Head width (hole length)	13 mm
Surface treatment	Zinc-plated
Basic radial load dynamic	29600 N
Basic radial load static	75600 N
Original number equivalent	GAR20-DO-2RS
Weight	0.3 kg
