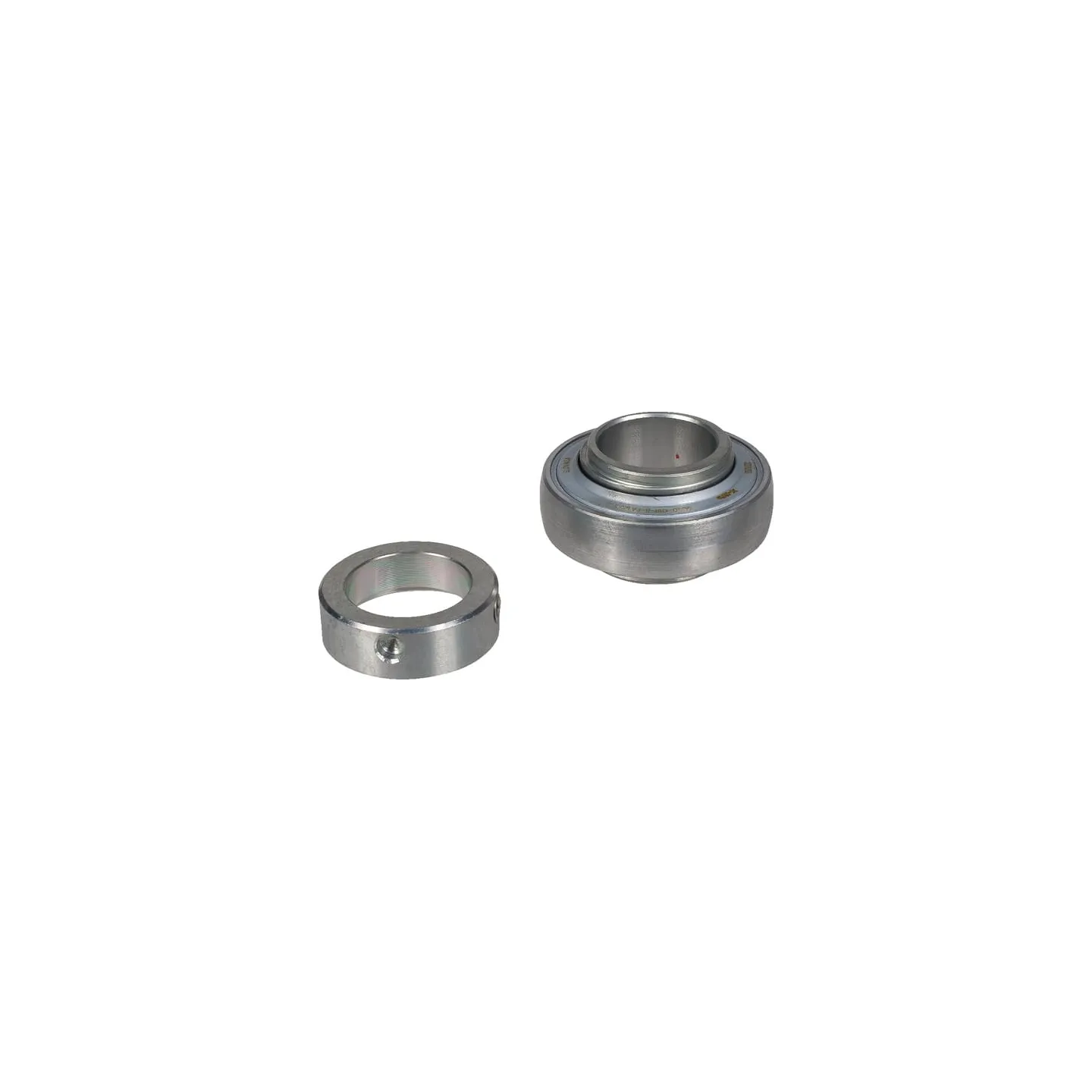

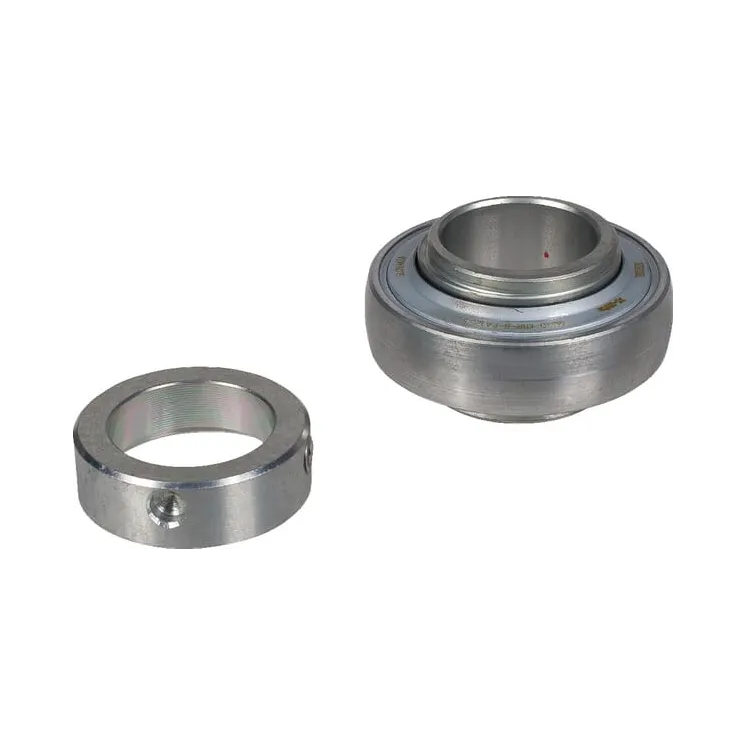

Gultņa ieliktnis 50x90x22mm GE50XLKRRBFA1255

Name: Gultņa ieliktnis 50x90x22mm GE50XLKRRBFA1255
Brand: INA/FAG
SKU: GE50XLKRRBFA1255
Price: 77.94 EUR
Availability: BackOrder

Apmaksas iespējas

77,94 €

AR PVN

Pēc pieprasījuma

Gultņa ieliktnis 50x90x22mm GE50XLKRRBFA1255 INA/FAG

Uz pasūtījumu

ID: 64156

Apraksts

Part number	GE50XLKRRBFA1255
EAN	4012802812657
Unit	Each
Application range	Mobile mechanical engineering Stationary mechanical engineering
Properties	Extended inner ring with clamp ring on both sides Convex outer ring with lubricating holes R seal Polyamide housing
Technical info	Supplement FA: rust-proof Corrotect design
dInside diameter	50 mm
DspOutside diameter	90 mm
Consists of	Clamp bearing Clamp ring
COuter ring width	22 mm
BInner ring width	49.2 mm
Locking collar and inner ring width	62.8 mm
Locking collar outside diameter	69 mm
Locking collar width	62.8 mm
d1Outside diameter of inner ring	62.8 mm
Basic radial load static	23200 N
Basic radial load dynamic	37500 N
Ball centre to grease hole distance	6.9 mm
Sealing width	26.4 mm
Ball centre to end distance	24.6 mm
Original number equivalent	GE50-XL-KRR-B-FA125.5
Weight	0.98 kg
