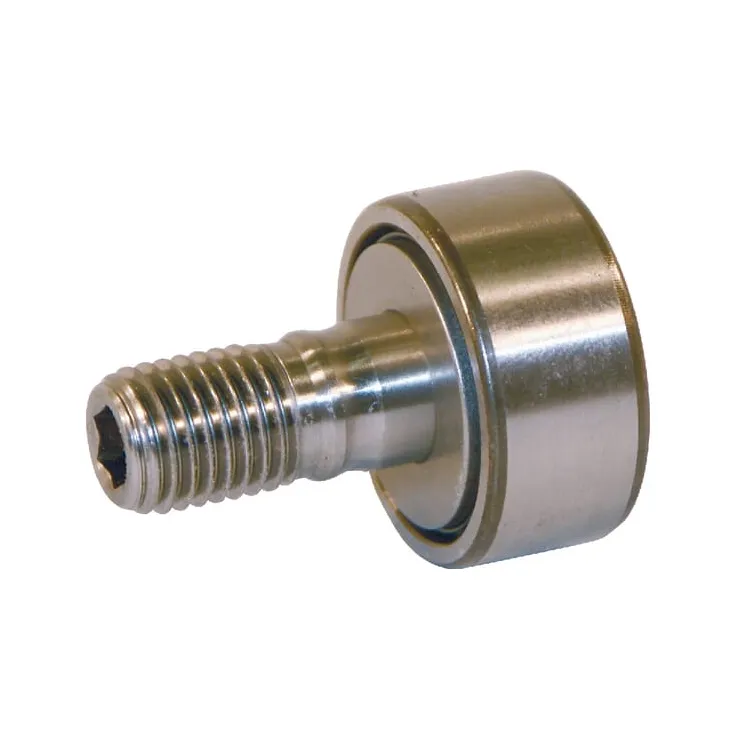

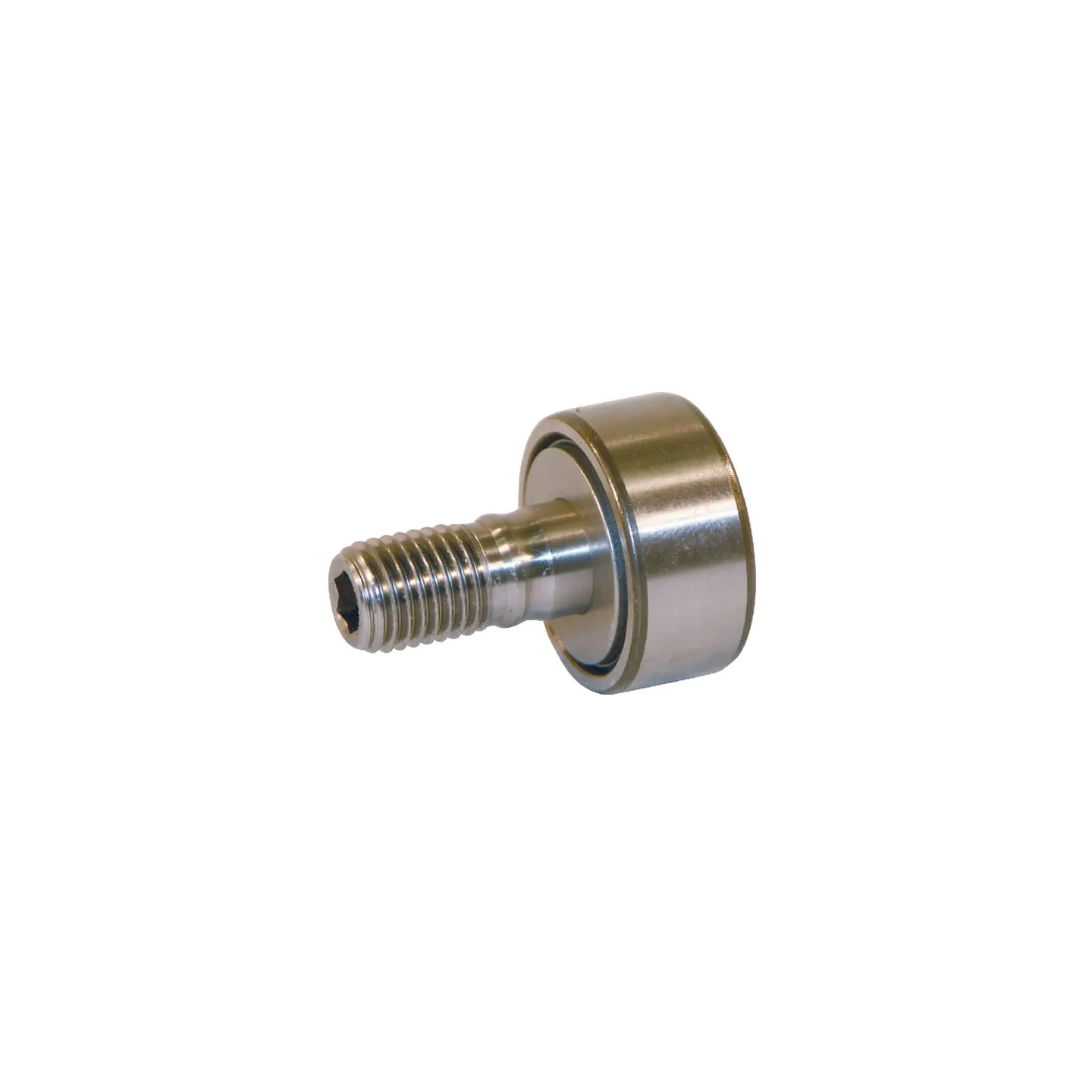

Stud tipa kāpurķēžu veltnis KR26PPA

Name: Stud tipa kāpurķēžu veltnis KR26PPA
Brand: INA/FAG
SKU: KR26PPA
Price: 68.62 EUR
Availability: BackOrder

Apmaksas iespējas

68,62 €

AR PVN

Pēc pieprasījuma

Stud tipa kāpurķēžu veltnis KR26PPA INA/FAG

Uz pasūtījumu

ID: 64489

Apraksts

Part number	KR26PPA
EAN	4012802420043
Unit	Each
Long description	Track rollers single and double-row INA/FAG, series KR .. B
Details	Thick-walled outer ring Track is slightly ball-shaped
Application range	Packaging machines Transport systems Roll-up doors Roller tensioners
Properties	Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
Benefits	Can absorb high radial loads No forces on edges with uneven standing
Inside diameter	10 mm
DOutside diameter	26 mm
CWidth	12 mm
Bearing model type	Stud type track rollers
Basic radial load static	6500 N
Basic radial load dynamic	5100 N
d1Shaft diameter	10 mm
B2Shaft length	23 mm
IGMounting thread length	12 mm
GMounting thread diameter	M10
Max working temperature	100 °C
Min working temperature	-30 °C
Original number equivalent	KR26-PP-A
BTotal length	36 mm
GMounting thread pitch	1.00 mm
